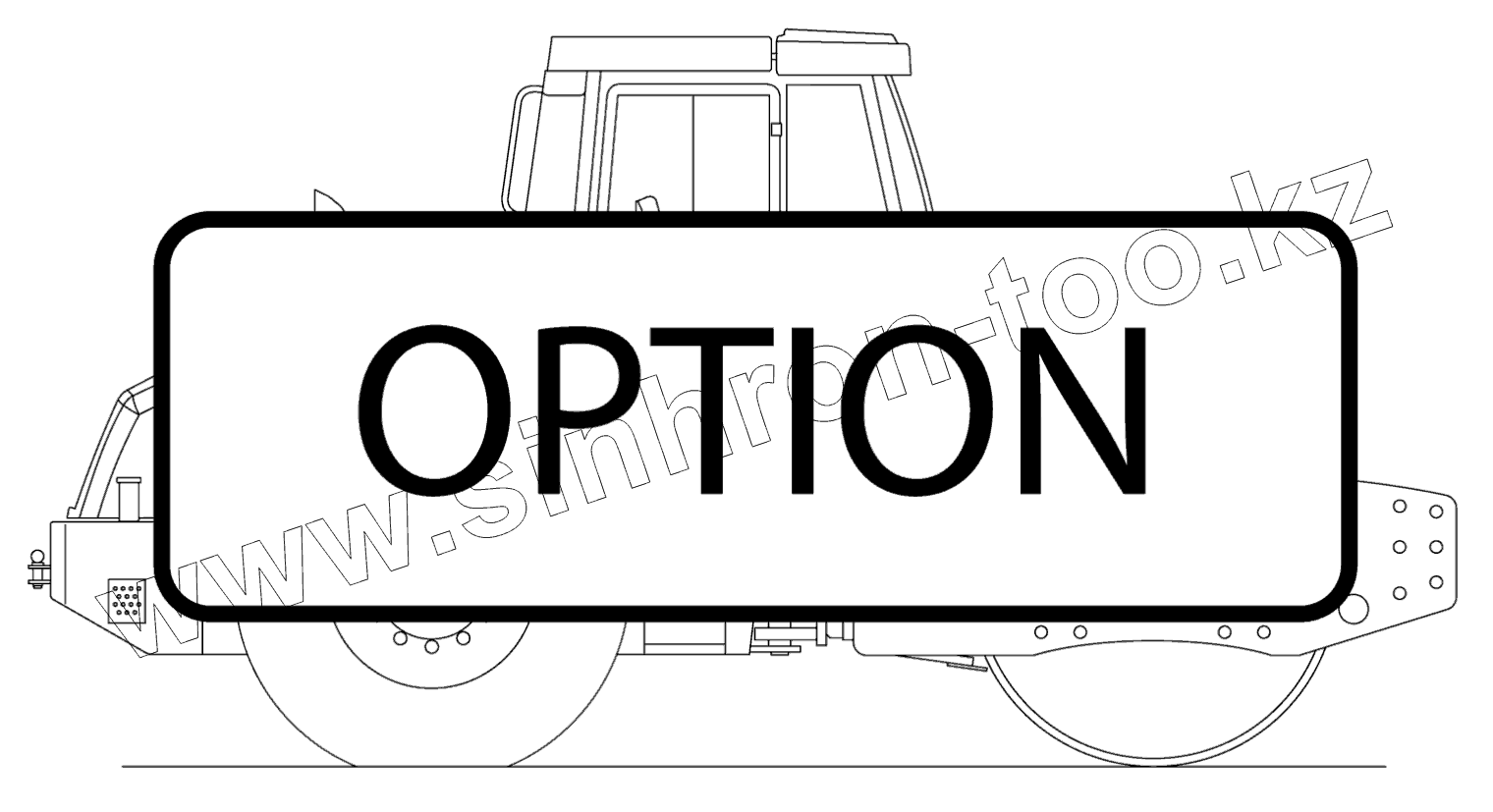

Каталог запасных частей к технике: Ammann ASC 110. Option
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1003 | 4-S12802 | Rammer butt drum | |
| 1011 | 4-S12617A | Drive and Vibration mechanism PD | |
| 1020 | 4-S11638 | Vibrator PD | |
| 1045 | 4-S107688 | Tyred wheel | |
| 1057 | 4-S12819 | Scraper | |
| 1066 | 4-S324939 | Hose holder | |
| 1096 | 4-S107738 | Final drive HD | |
| 1116 | 4-S210704 | Set of pumps | |
| 1324 | 4-S107649 | Vibration hydraulics | |
| 3027 | 4-S15644 | Drive motor PD | |
| 3028 | 4-S15645 | Drive motor HT | |
| 3031 | 4-S11661 | HT Drum drive | |
| 3049 | 4-S107136 | Wheel assembly | |
| 3059 | 4-S12092A | Scraper | |
| 3068 | 4-S209763 | Joint lock | |
| 3069 | 4-S322966 | Signage | |
| 3091 | 4-S322636 | Tank cap | |
| 3092 | 4-S441273 | Lock | |
| 3094 | 4-S107737 | Final drive HT | |
| 3118 | 4-S210937 | Ventilator | |
| 3129 | 4-S324057 | Drain cock | |
| 3161 | 4-S209496 | Roof FOPS | |
| 3180 | 4-S208203 | Railing | |
| 3183 | 4-S104848_A | Cover | |
| 3184 | 4-S210015 | Cover | |
| 3191 | 4-S324497 | Pre-filter | |
| 3203 | 4-S324575 | Spotlight holder | |
| 3204 | 4-S324577 | Spotlight holder | |
| 3209 | 4-S210657 | Battery cover | |
| 3312 | 4-S107740 | Drum hydraulics HT | |
| 3318 | 4-S443822 | Module | |
| 3318 | 4-S443823 | Module | |
| 3319 | 4-S107658 | Hydraulic | |
| 3362 | 4-S5451050064 | Hydraulic oil tank | |
| 3382 | 4-S107724 | Lifting hydraulics | |
| 3391 | 4-S107575 | Measurement point | |
| 3392 | 4-S107576 | Measurement point | |
| 3411 | 4-S443798_A | Railing wiring | |
| 3412 | 4-S211265_A | Turn signal | |
| 3412 | 4-S324749_B | Turn signal | |
| 3413 | 4-S443799_A | Warning light | |
| 3414 | 4-S324940 | Differential lock | |
| 3415 | 4-S325024 | Reversing alarm | |
| 3416 | 4-S324717_A | Cab lifting wiring | |
| 3417 | 4-S441089 | Stroke signal | |
| 3421 | 4-S13492 | Light front | |
| 3423 | 4-S443804_A | Lamp | |
| 3424 | 4-S324529 | Registration plate lighting | |
| 3429 | 4-S211153 | Rear reflector | |
| 3463 | 4-S210592 | Running board | |
| 3469 | 4-S210655 | Cover | |
| 3481 | 4-S210595 | Left hatch | |
| 3482 | 4-S210636 | Right hatch | |
| 3523 | 4-S324142 | Accessories | |
| 3524 | 4-S5532020060 | Tool kit | |
| 3540 | 4-S320180 | Set of spare parts | |
| 3545 | 4-S324487 | Set of spare parts | |
| 3550 | 4-S11505 | Dozer blade | |
| 3556 | 4-S12873 | Dozer blade lock | |
| 3558 | 4-S210045 | Blade controls | |
| 3559 | 4-S106781 | Blade controls | |
| 3560 | 4-S11542A | Segment | |
| 3591 | 4-S211035_A | Fan cover | |
| 3596 | 4-S211037 | Cover | |
| 3597 | 4-S211067 | Cover | |
| 3618 | 4-S107503_B | Air conditioning system | |
| 3625 | 4-S210002 | Fire extinguisher | |
| 3626 | 4-S322855 | Padlock | |
| 3636 | 4-S322839 | Tyre inflation system | |
| 3645 | 4-S209582 | Roof tarpaulin | |
| 3645 | 4-S210131 | Roof tarpaulin | |
| 3646 | 4-S322495 | Roof support | |
| 3647 | 4-S6580050053 | Roof | |
| 3647 | 4-S6580050054 | Roof | |
| 3647 | 4-S6580050052 | Roof | |
| 3650 | 4-S322345 | Roof FOPS | |
| 3685 | 4-S211618 | Tachograph | |
| 3689 | 4-S211620 | Compactometer | |
| 3690 | 4-S211621 | Compactometer | |
| 3691 | 4-S211622 | Compactometer | |
| 3693 | 4-S444126 | Shaft encoder | |
| 3694 | 4-S107612_A | Frame ROPS 2D | |
| 3695 | 4-S9500500031 | Retractor belt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
