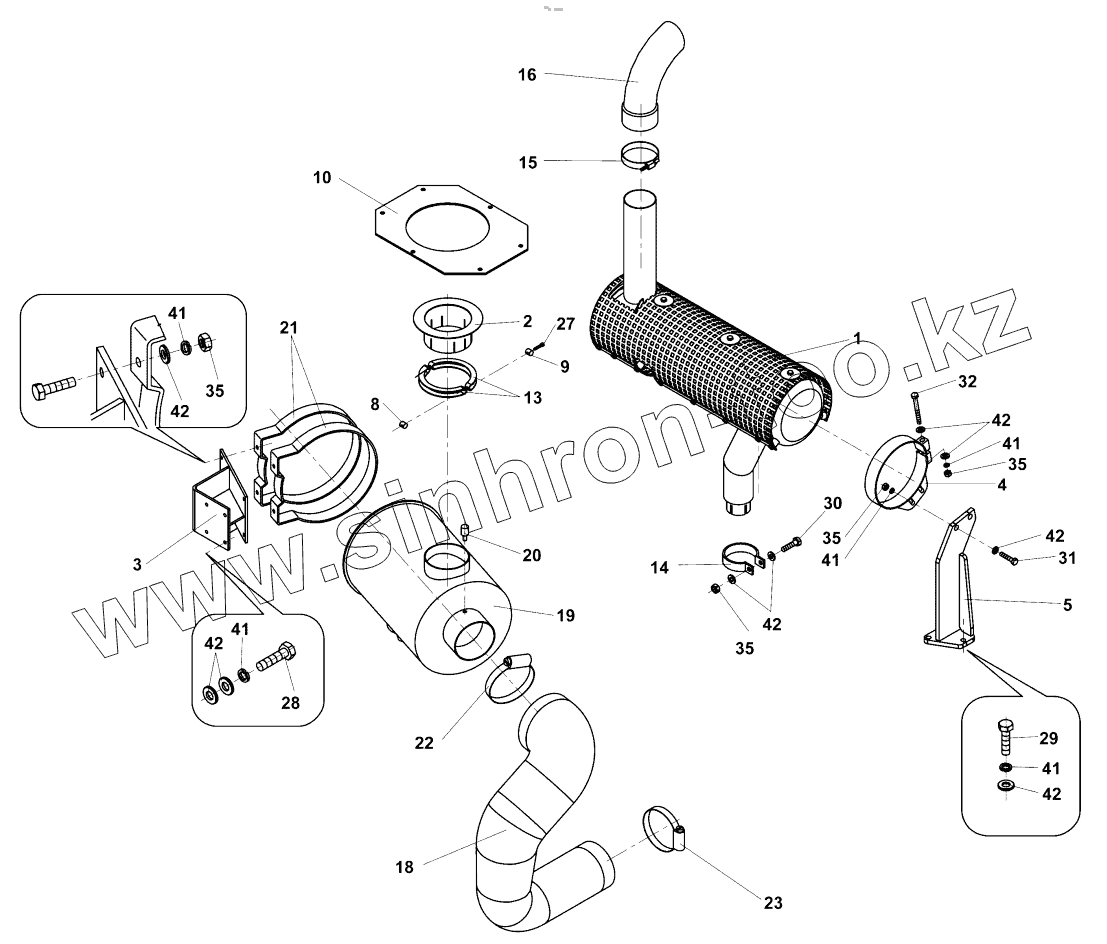

Каталог запасных частей к технике: Ammann ASC 110. Intake and exhaust pipe
1
2
3
4
5
8
9
10
13
14
15
16
18
19
20
21
22
23
27
28
29
29
30
31
32
35
35
35
35
41
41
41
41
41
42
42
42
42
42
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107359 | 4-107359 | Intake | |
| 1 | 4-107418 | Exhaust | |
| 2 | 4-443642 | Reducer | |
| 3 | 4-211034 | Holder | |
| 4 | 4-322380 | Sleeve | |
| 5 | 4-324632 | Supporting pillar | |
| 8 | 4-443614 | Nut | |
| 9 | 4-443613 | Cylinder | |
| 10 | 4-443641 | Plate | |
| 13 | 4-324512 | Sleeve | |
| 14 | 4-9200000068 | Clip | |
| 15 | 4-5358520082 | Sleeve | |
| 16 | 4-5358520081 | Attachment | |
| 18 | 4-324519 | Manifold | |
| 19 | 4-5358520129 | Filter | |
| 20 | 4-5358520075 | Indicator | |
| 21 | 4-5358520130 | Sleeve | |
| 22 | 4-5531020093 | Hose clamp | |
| 23 | 4-5531020091 | Clip | |
| 27 | 4-3114308040 | Socket head cap screw | |
| 28 | 4-3002510025 | Hexagon head screw | |
| 29 | 4-3002510030 | Hexagon head screw | |
| 29 | 4-3002510030 | Hexagon head screw | |
| 30 | 4-3002510035 | БОЛТ | |
| 31 | 4-3002510040 | Hexagon head screw | |
| 32 | 4-3001510110 | Hexagon head screw | |
| 35 | 4-3530021100 | Nut | |
| 41 | 4-3900017100 | Spring washer | |
| 42 | 4-3170600100 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
