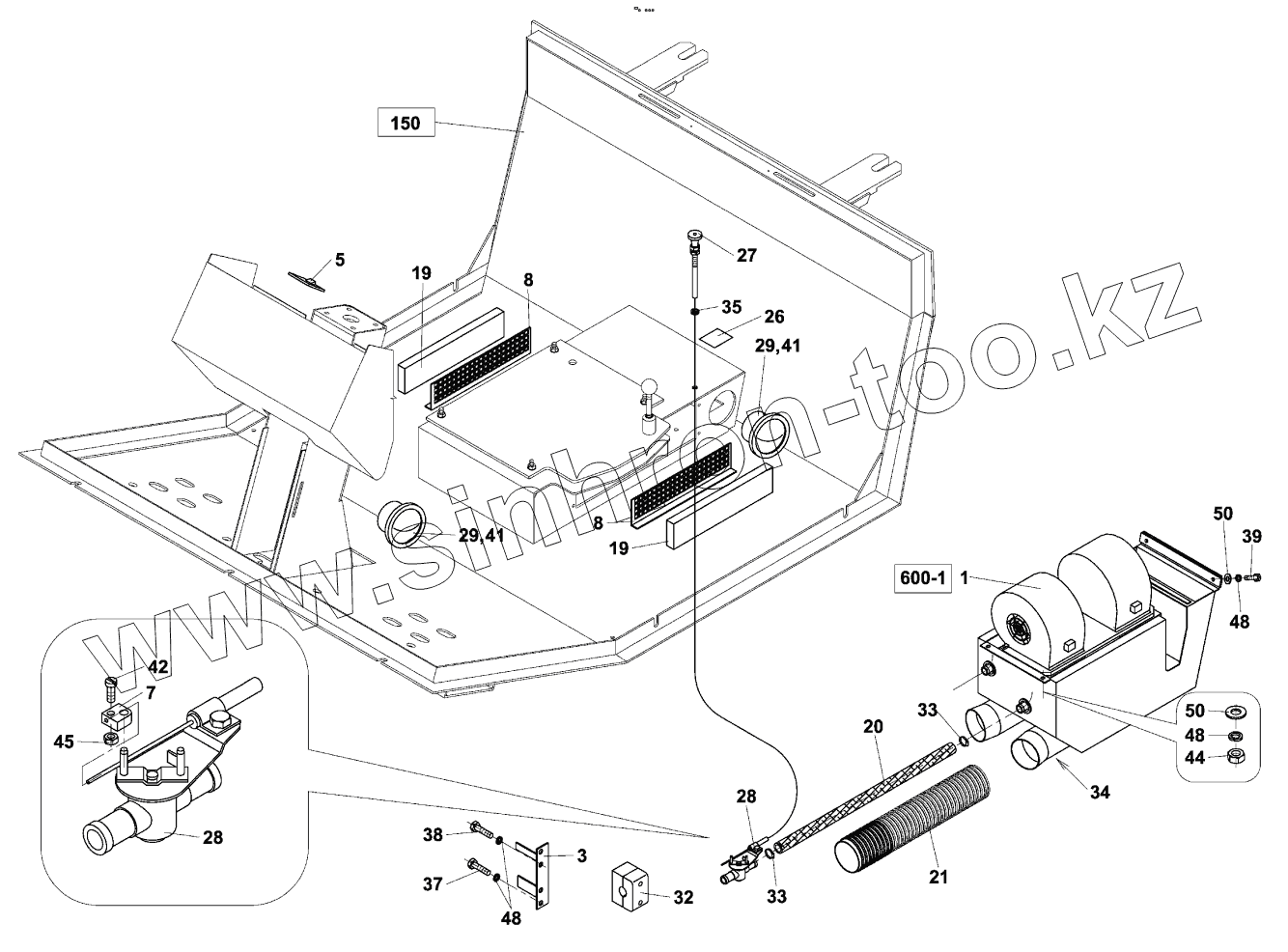

Каталог запасных частей к технике: Ammann ASC 110. Heating
1
3
5
7
8
8
19
19
20
21
26
27
28
28
29
29
32
33
33
33
33
34
35
37
38
39
41
41
42
44
45
48
48
48
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107656 | 4-107656 | Water heating | |
| 1 | 4-S210696 | Heating | |
| 3 | 4-438710 | Hose holder | |
| 5 | 4-444047 | Electrical installation | |
| 7 | 4-437968 | Clamping device | |
| 8 | 4-320249 | Grate | |
| 19 | 4-612044 | Filter | |
| 20 | 4-612045 | Cooling water hose | |
| 21 | 4-611958 | Hose | |
| 26 | 4-6531012638 | Symbol | |
| 27 | 4-9500000336 | Pull rod | |
| 28 | 4-9200000201 | Valve | |
| 29 | 4-9200000002 | Ventilation nozzle | |
| 32 | 4-5358050034 | Sleeve | |
| 33 | 4-5531020003 | Hose clamp | |
| 33 | 4-5531020003 | Hose clamp | |
| 34 | 4-6150051016 | Staple strip | |
| 35 | 4-6160100165 | Leadthrough | |
| 37 | 4-3114306030 | Socket head cap screw | |
| 38 | 4-3002506012 | Hexagon head screw | |
| 39 | 4-3002506016 | Hexagon head screw | |
| 41 | 4-3123802913 | Screw | |
| 42 | 4-3113104010 | Socket head cap screw | |
| 44 | 4-3048500060 | Hexagon nut | |
| 45 | 4-3140100040 | Hexagon nut | |
| 48 | 4-3174000061 | Lock washer | |
| 50 | 4-3172900066 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
