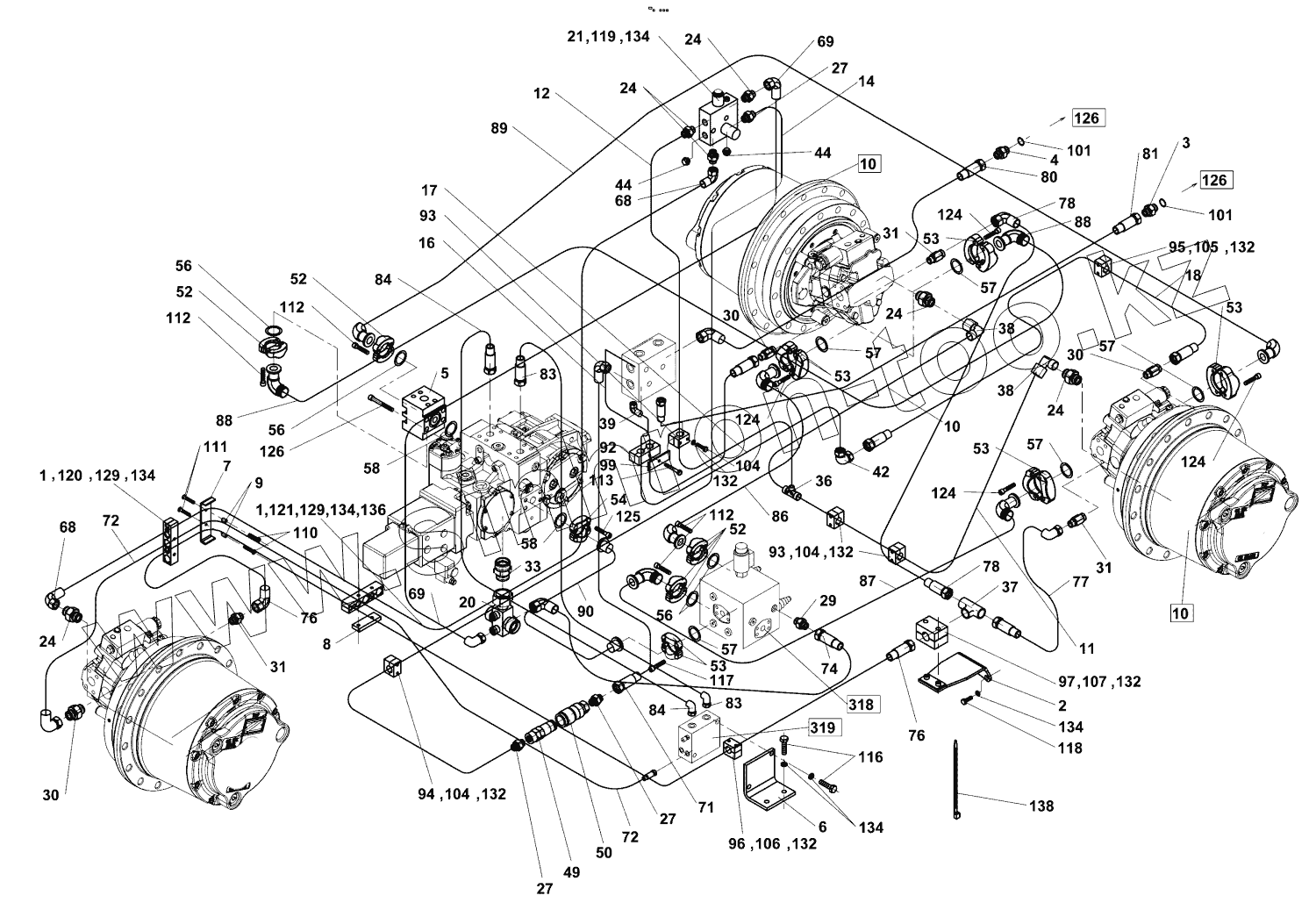

Каталог запасных частей к технике: Ammann ASC 110. Driving hydraulics
1
1
2
3
4
5
6
7
8
9
10
10
10
11
12
14
16
17
18
20
21
24
24
24
24
24
27
27
27
29
30
30
30
31
31
31
33
36
37
38
38
39
42
44
44
49
50
52
52
52
53
53
53
53
53
54
56
56
56
57
57
57
57
57
58
58
68
68
69
69
71
72
72
74
76
76
77
78
78
80
81
83
83
84
84
86
87
88
88
89
90
92
93
93
94
95
96
97
99
101
101
104
104
104
105
106
107
110
111
112
112
112
113
116
117
118
119
120
121
124
124
124
124
125
126
126
126
129
129
132
132
132
132
132
132
134
134
134
134
134
136
138
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107739 | 4-107739 | Driving hydraulics | |
| 1 | 4-11859A | Clip | |
| 2 | 4-324729 | Bracket | |
| 3 | 4-319877 | Connector | |
| 4 | 4-324677 | Connector | |
| 5 | 4-319771 | Cube | |
| 6 | 4-443906 | Holder | |
| 7 | 4-12526A | Holder | |
| 8 | 4-11853A | Washer | |
| 9 | 4-12528A | Distance element | |
| 10 | 4-614085 | Pipe | |
| 11 | 4-614086 | Pipe | |
| 12 | 4-613669 | Pipe | |
| 14 | 4-613670 | Pipe | |
| 16 | 4-614084 | Pipe | |
| 17 | 4-613672 | Pipe | |
| 18 | 4-614083 | Pipe | |
| 20 | 4-5160572134 | Hydraulic body | |
| 21 | 4-5451050067 | Hydraulic brake block | |
| 24 | 4-5160650058 | Screwed connection | |
| 27 | 4-5160650078 | Connector | |
| 29 | 4-5160650166 | Connector | |
| 30 | 4-5160650086 | Connector | |
| 31 | 4-5160650033 | Connector | |
| 33 | 4-5160650041 | Connector | |
| 36 | 4-5160660059 | T-socket | |
| 37 | 4-5160660100 | T-socket | |
| 38 | 4-5160670087 | Screwed connection | |
| 39 | 4-5160670029 | Screwed connection | |
| 42 | 4-5160660012 | Clutch | |
| 44 | 4-5160670114 | Plug | |
| 49 | 4-5358050080 | Quick-release coupling | |
| 50 | 4-5358050081 | МУФТА | |
| 52 | 4-5160580015 | Semi-flange | |
| 53 | 4-5160580016 | Yoke | |
| 54 | 4-5160580017 | Yoke | |
| 56 | 4-6160142201 | O-ring | |
| 57 | 4-6160142202 | O-ring | |
| 58 | 4-6160142203 | O-ring | |
| 68 | 4-5160571793 | Hydr hose | |
| 69 | 4-5160572160 | Hydr hose | |
| 71 | 4-5160571792 | Hydr hose | |
| 72 | 1167984 | Hose | |
| 74 | 4-5160570953 | Hydr hose | |
| 76 | 4-5160571884 | Hydr hose | |
| 77 | 4-5160571881 | Hydr hose | |
| 78 | 4-5160571194 | Hydr hose | |
| 80 | 4-5160572048 | Hydr hose | |
| 81 | 4-5160570615 | Hydraulic hose | |
| 83 | 4-5160572140 | Hydr hose | |
| 84 | 4-5160572141 | Hydr hose | |
| 86 | 1167990 | Hose | |
| 87 | 1167993 | Hose | |
| 88 | 1167991 | Hose | |
| 89 | 1167992 | Hose | |
| 90 | 4-5160572135 | Hydr hose | |
| 92 | 4-5358050027 | Sleeve | |
| 93 | 4-5358050022 | Sleeve | |
| 94 | 4-5358050011 | ЗАЖИМ | |
| 95 | 4-5358050024 | Sleeve | |
| 96 | 4-5358050039 | Sleeve | |
| 97 | 4-5358050035 | ОБОЙМА | |
| 99 | 4-5358050032 | Cap | |
| 101 | 4-6090010424 | Sealing ring | |
| 104 | 4-3114306022 | Socket head cap screw | |
| 105 | 4-3114306028 | Socket head cap screw | |
| 106 | 4-3114306030 | Socket head cap screw | |
| 107 | 4-3114306040 | Socket head cap screw | |
| 110 | J908876 | Countersunk screw | |
| 111 | 1-902973 | Countersunk screw | |
| 112 | 4-3114308030 | Socket head cap screw | |
| 113 | 4-3001508035 | Hexagon head screw | |
| 116 | 4-3002510020 | Hexagon head screw | |
| 117 | 4-3001510035 | Hexagon head screw | |
| 118 | 4-3001510045 | БОЛТ | |
| 119 | 4-3114310060 | Socket head cap screw | |
| 120 | 4-3001510065 | Hexagon head screw | |
| 121 | 4-3117610070 | Stud bolt | |
| 124 | 4-3114310035 | Socket head cap screw | |
| 125 | 4-3506771634 | Hexagon head screw | |
| 126 | 4-3506771630 | Hexagon head screw | |
| 129 | 4-3048500100 | Hexagon nut | |
| 132 | 4-3170200064 | ШАЙБА | |
| 134 | 4-3900017100 | Spring washer | |
| 136 | 4-6150090095 | Cover | |
| 138 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
