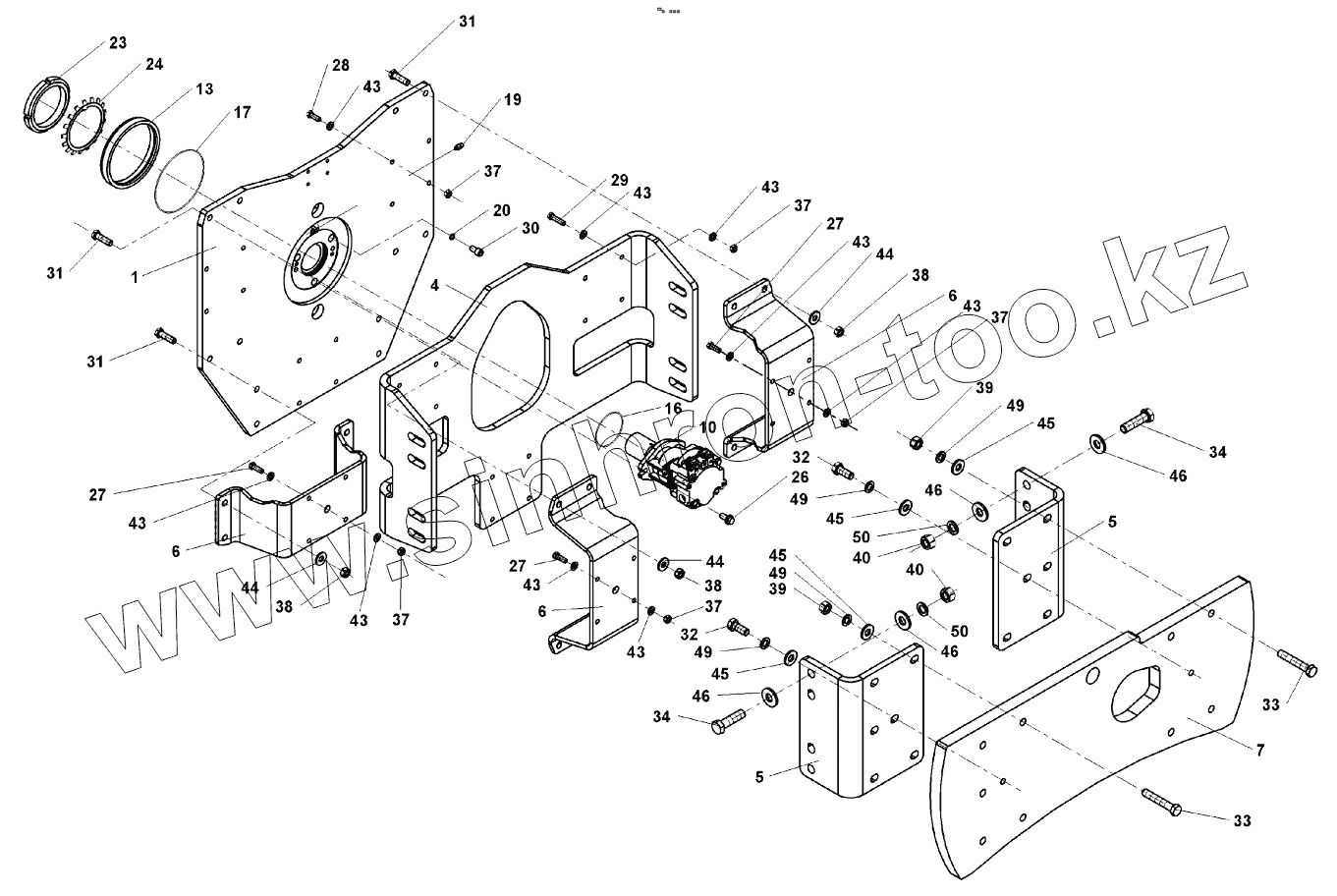

Каталог запасных частей к технике: Ammann ASC 110. Drive and Vibration mechanism D
1
4
5
5
6
6
6
7
10
13
16
17
19
20
23
24
26
27
27
27
28
29
30
31
31
31
32
32
33
33
34
34
37
37
37
37
37
38
38
38
39
39
40
40
43
43
43
43
43
43
43
43
43
44
44
44
45
45
45
45
46
46
46
46
49
49
49
49
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-11494 | 4-11494 | Drive | |
| 1 | 4-11495A | Plate | |
| 4 | 4-11497A | Plate | |
| 5 | 4-11498 | Bracket | |
| 6 | 4-11452A | Yoke | |
| 7 | 4-11805 | Weight | |
| 10 | 4-S324688 | Fluid motor | |
| 13 | 4-316730 | Ring | |
| 16 | 4-6160141001 | Ring | |
| 17 | 4-6160141003 | Ring | |
| 19 | 4-5353080052 | Venting valve | |
| 20 | 4-6090010412 | Sealing ring | |
| 23 | 4-5462110042 | Nut | |
| 24 | 4-5462110162 | Plate | |
| 26 | 4-3600014530 | Hexagon head screw | |
| 27 | 4-3002512035 | Hexagon head screw | |
| 28 | 4-3002512040 | Hexagon head screw | |
| 29 | 4-3001512050 | Hexagon head screw | |
| 30 | 4-3114314025 | Socket head cap screw | |
| 31 | 4-3001516055 | Hexagon head screw | |
| 32 | 4-3002520050 | Hexagon head screw | |
| 33 | 4-3001520120 | Hexagon head screw | |
| 34 | 4-3001524090 | Hexagon head screw | |
| 37 | 4-3530020120 | Nut | |
| 38 | 4-3530020160 | Nut | |
| 39 | 4-3048500200 | Hexagon nut | |
| 40 | 4-3048500240 | Hexagon nut | |
| 43 | 4-3170600130 | Washer | |
| 44 | 4-3679600170 | Strain washer | |
| 45 | 4-3679600210 | Strain washer | |
| 46 | 4-3679600240 | Strain washer | |
| 49 | 4-3900017200 | Spring washer | |
| 50 | 4-3900017240 | Spring washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
