Каталог запасных частей к технике: Ammann ASC 100. Rammer butt drum
1
2
3
4
4
4
4
7
8
9
10
10
12
13
14
15
15
15
16
16
16
17
17
18
18
19
19
22
23
24
24
25
25
26
27
28
28
30
31
33
33
35
37
38
38
39
40
40
42
44
44
46
47
47
48
48
51
52
56
56
56
57
59
62
64

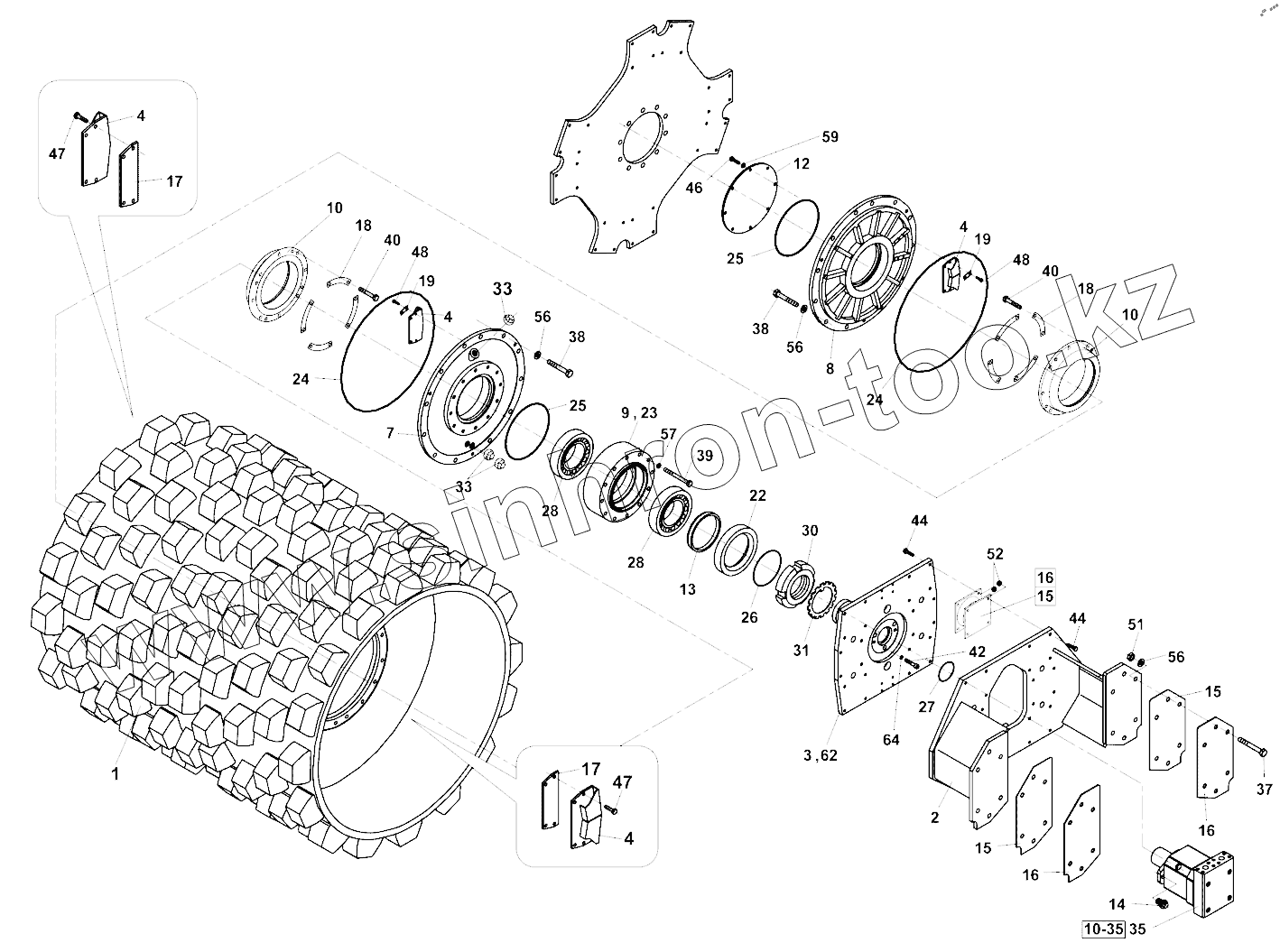

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107675 | 4-107675 | Rammer butt drum | |
| 1 | 4-107674 | Rammer butt drum | |
| 2 | 4-210558 | Bracket | |
| 3 | 4-107063 | Plate | |
| 4 | 4-319450 | Oil feed pipe | |
| 7 | 4-105347 | Cover | |
| 8 | 4-105411 | Cover | |
| 9 | 4-208611 | Hub | |
| 10 | 4-11584A | Cover | |
| 12 | 4-319724 | Cap | |
| 13 | 4-316730 | Ring | |
| 14 | 4-3600012030 | Hexagon head screw | |
| 15 | 4-442661 | Spacer | |
| 16 | 4-442662 | Spacer | |
| 17 | 4-320354 | Washer | |
| 18 | 4-11585A | Washer | |
| 19 | 4-437218 | Lock washer | |
| 22 | 4-6160070411 | Gasket | |
| 23 | 4-5462041020 | Ring | |
| 24 | 4-6160141006 | Ring | |
| 25 | 4-6160141007 | Ring | |
| 26 | 4-6160141003 | Ring | |
| 27 | 4-6160141001 | Ring | |
| 28 | 4-5462070026 | Bearing | |
| 30 | 4-5462110042 | Nut | |
| 31 | 4-5462110162 | Plate | |
| 33 | 4-5358570028 | Plug | |
| 35 | 4-S323782 | Fluid motor | |
| 37 | 4-3001520075 | Hexagon head screw | |
| 38 | 4-3001520070 | Hexagon head screw | |
| 39 | 4-3001516130 | Hexagon head screw | |
| 40 | 4-3002516050 | Hexagon head screw | |
| 42 | 4-3114314025 | Socket head cap screw | |
| 44 | 4-3002512045 | Hexagon head screw | |
| 46 | 4-3002512025 | Hexagon head screw | |
| 47 | 4-3002508025 | Hexagon head screw | |
| 48 | 4-3002508016 | Hexagon head screw | |
| 51 | 4-3048500200 | Hexagon nut | |
| 52 | 4-3530020120 | Nut | |
| 56 | 4-3900017200 | Spring washer | |
| 57 | 4-3900017160 | Spring washer | |
| 59 | 4-3900017120 | Spring washer | |
| 62 | 4-5353080052 | Venting valve | |
| 64 | 4-6090010412 | Sealing ring |
