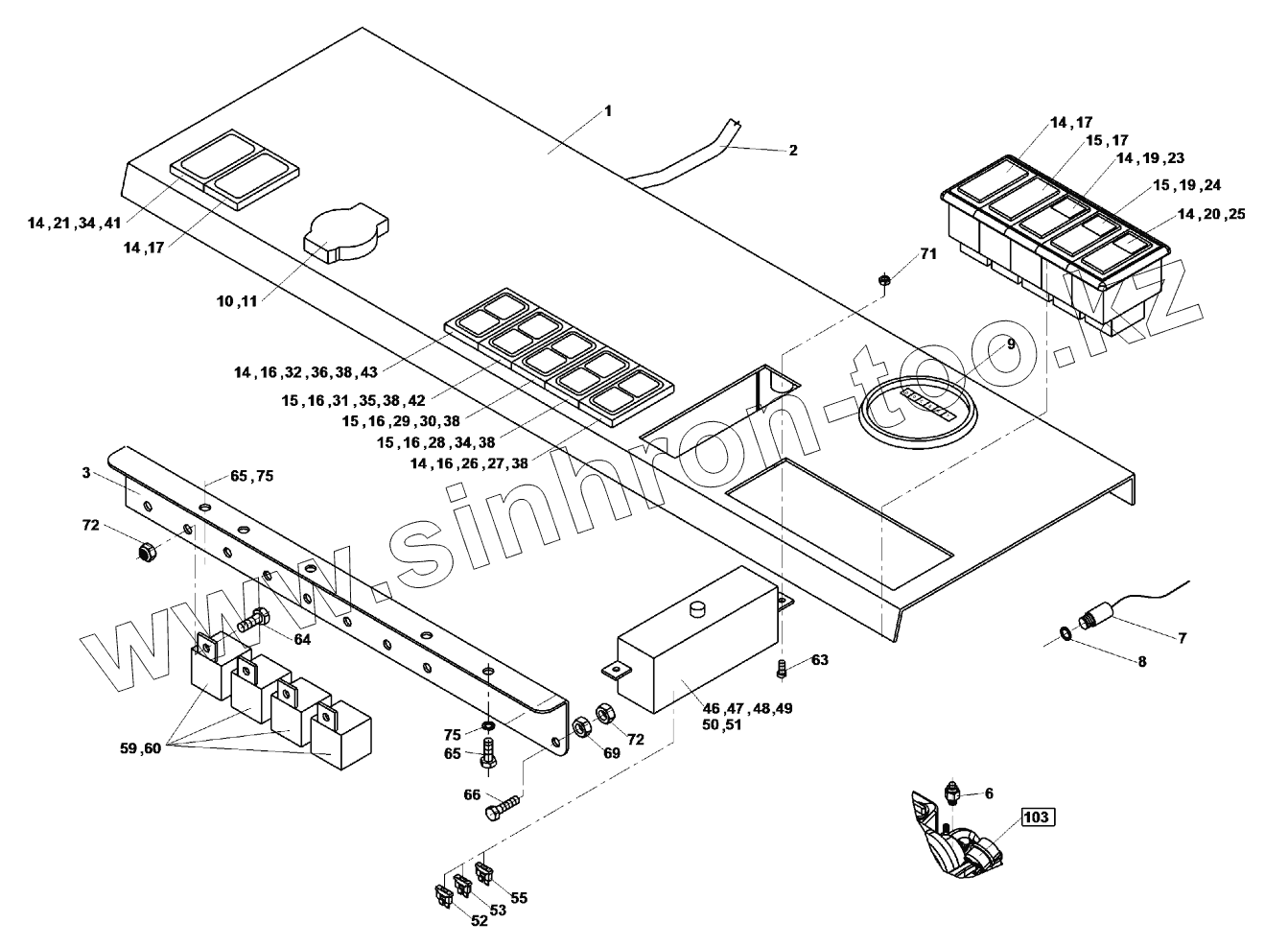

Каталог запасных частей к технике: Ammann ASC 100. Plate
1
2
3
6
7
8
9
10
11
14
14
14
14
14
14
14
15
15
15
15
15
16
16
16
16
16
17
17
17
19
19
20
21
23
24
25
26
27
28
29
30
31
32
34
34
35
36
38
38
38
38
38
41
42
43
46
47
48
49
50
51
52
53
55
59
60
63
64
65
65
66
69
71
72
72
75
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-210480 | 4-210480 | ПЛИТА | |
| 1 | 4-323738 | Plate | |
| 2 | 4-211566 | Cable harness | |
| 3 | 4-324918 | Bracket | |
| 6 | 4-5503580118 | Temperature sensor | |
| 7 | 4-5503580053 | Temperature switch | |
| 8 | 4-6090010412 | Sealing ring | |
| 9 | 4-5503580084 | Hours-run meter | |
| 10 | 4-5358010401 | Ignition lock | |
| 11 | 4-5358010402 | Flap | |
| 14 | 4-5358200091 | T-piece | |
| 15 | 4-5358200092 | Intermediate piece | |
| 16 | 4-5358220047 | Indicator lamp | |
| 17 | 4-5358220040 | Cover | |
| 19 | 4-5358220048 | Switch | |
| 20 | 4-5358200097 | Switch | |
| 21 | 4-5358220045 | Switch | |
| 23 | 4-5358220043 | Plate | |
| 24 | 4-5358220044 | Plate | |
| 25 | 4-5358210080 | Plate | |
| 26 | 4-5358210029 | Plate | |
| 27 | 4-5358220067 | Plate | |
| 28 | 4-5358210040 | Plate | |
| 29 | 4-5358220053 | Plate | |
| 30 | 4-5358220068 | Plate | |
| 31 | 4-5358220051 | Plate | |
| 32 | 4-5358220039 | Plate | |
| 34 | 4-5358210081 | Plate | |
| 35 | 4-5358220052 | ТАБЛИЧКА | |
| 36 | 4-5358220062 | Plate | |
| 38 | 4-5358220071 | Spotlight | |
| 41 | 4-6531012244 | Symbol | |
| 42 | 4-6531012612 | СИМБОЛ | |
| 43 | 4-6531012637 | СИМБОЛ | |
| 46 | 4-9200010006 | Fusebox | |
| 47 | 4-9200010005 | Bridge | |
| 48 | 4-9200010004 | Bunch plug | |
| 49 | 4-9200010003 | Bunch plug | |
| 50 | 4-9200010002 | Bunch plug | |
| 51 | 4-9200010001 | Bunch plug | |
| 52 | 4-5422060014 | Fuse | |
| 53 | 4-5422060012 | Fuse | |
| 55 | 4-5422060013 | Fuse | |
| 59 | 4-5358170080 | Relay | |
| 60 | 4-5358170081 | Relay support | |
| 63 | 4-3113104012 | Socket head cap screw | |
| 64 | 4-3002505010 | Hexagon head screw | |
| 65 | 4-3002505012 | Hexagon head screw | |
| 66 | 4-3002505020 | Hexagon head screw | |
| 69 | 4-3048500050 | Hexagon nut | |
| 71 | 4-3149200040 | Nut | |
| 72 | 4-3149200050 | Nut | |
| 75 | 4-3174000051 | Lock washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
