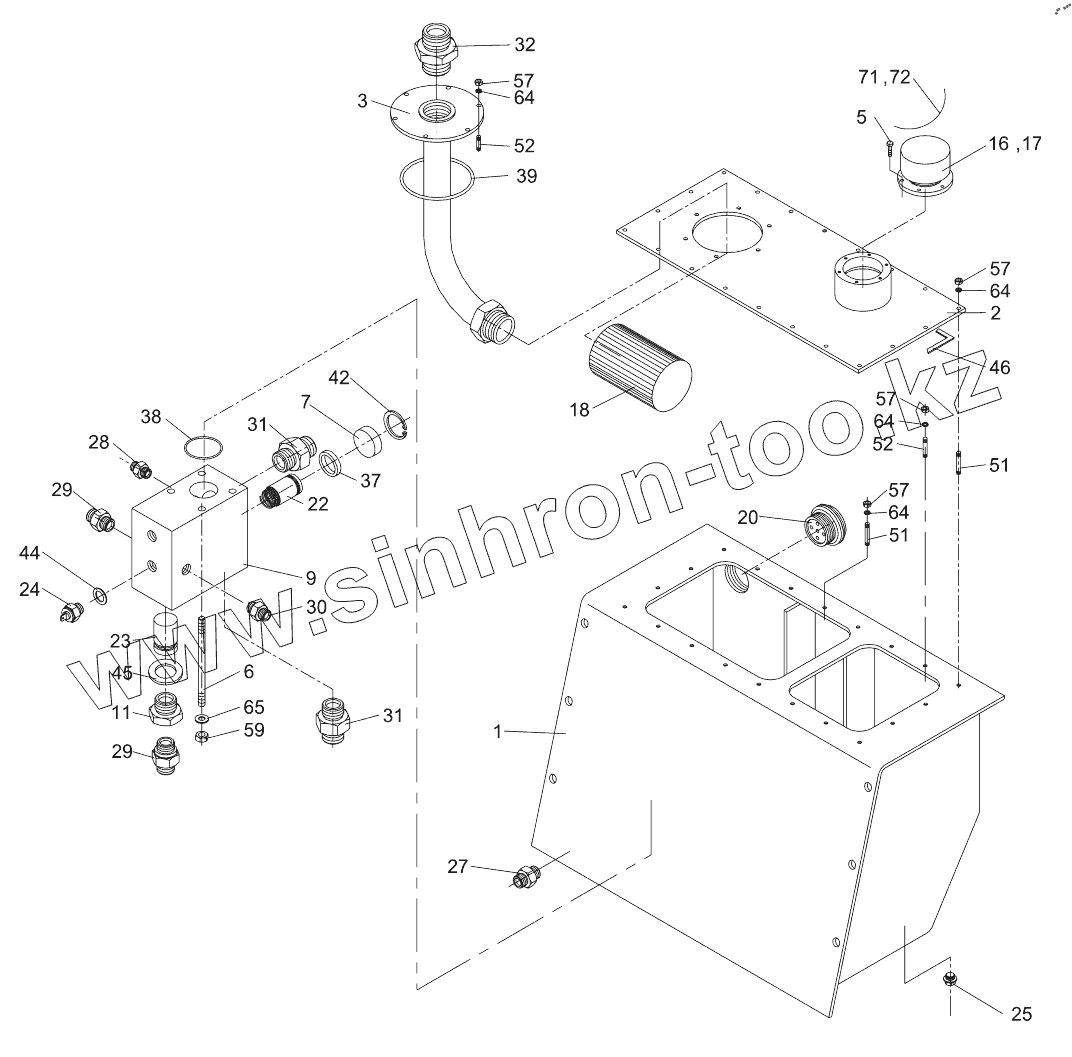

Каталог запасных частей к технике: Ammann ASC 100. Hydraulic oil tank
1
2
3
5
6
7
9
11
16
17
18
20
22
23
24
25
27
28
29
29
30
31
31
32
37
38
39
42
44
45
46
51
51
52
52
57
57
57
57
59
64
64
64
64
71
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-5451050066 | 4-5451050066 | Tank | |
| 1 | 4-8300750134 | Tank | |
| 2 | 4-8300750136 | Cover | |
| 3 | 4-8300750137 | Holder | |
| 5 | 4-438723 | Screw | |
| 6 | 4-440859 | Threaded rod | |
| 7 | 4-440860 | Plug | |
| 9 | 4-8300750138 | Cube | |
| 11 | 4-437267 | Reduction | |
| 16 | 4-5358500002 | Filler neck | |
| 17 | 4-5358500004 | Accessories | |
| 18 | 4-5451050018 | Strainer | |
| 20 | 4-5536860012 | Inspection glass | |
| 22 | 4-5358010206 | Temperature controller | |
| 23 | 4-5451050016 | Valve | |
| 24 | 4-5503580072 | Temperature sensor | |
| 25 | 4-5160670037 | Plug | |
| 27 | 4-5160650106 | Screwed connection | |
| 28 | 4-5160650059 | Screwed connection | |
| 29 | 4-5160650045 | Connector | |
| 30 | 4-5160650066 | Screwed connection | |
| 31 | 4-5160650067 | Screwed connection | |
| 32 | 4-5160650091 | Connector | |
| 37 | 4-6160142202 | O-ring | |
| 38 | 4-6160142206 | O-ring | |
| 39 | 4-6160142207 | O-ring | |
| 42 | 4-5535010231 | Circlip | |
| 44 | 4-6090010412 | Sealing ring | |
| 45 | 4-6090010420 | Sealing ring | |
| 46 | 4-690219 | Sealing tape | |
| 51 | 4-3029506025 | Stud bolt | |
| 52 | 4-3029506016 | Stud bolt | |
| 57 | 4-3048500060 | Hexagon nut | |
| 59 | 4-3048500080 | Hexagon nut | |
| 64 | 4-3174000061 | Lock washer | |
| 71 | 4-4100300011 | Lead seal | |
| 72 | 4-690079 | Wire |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
