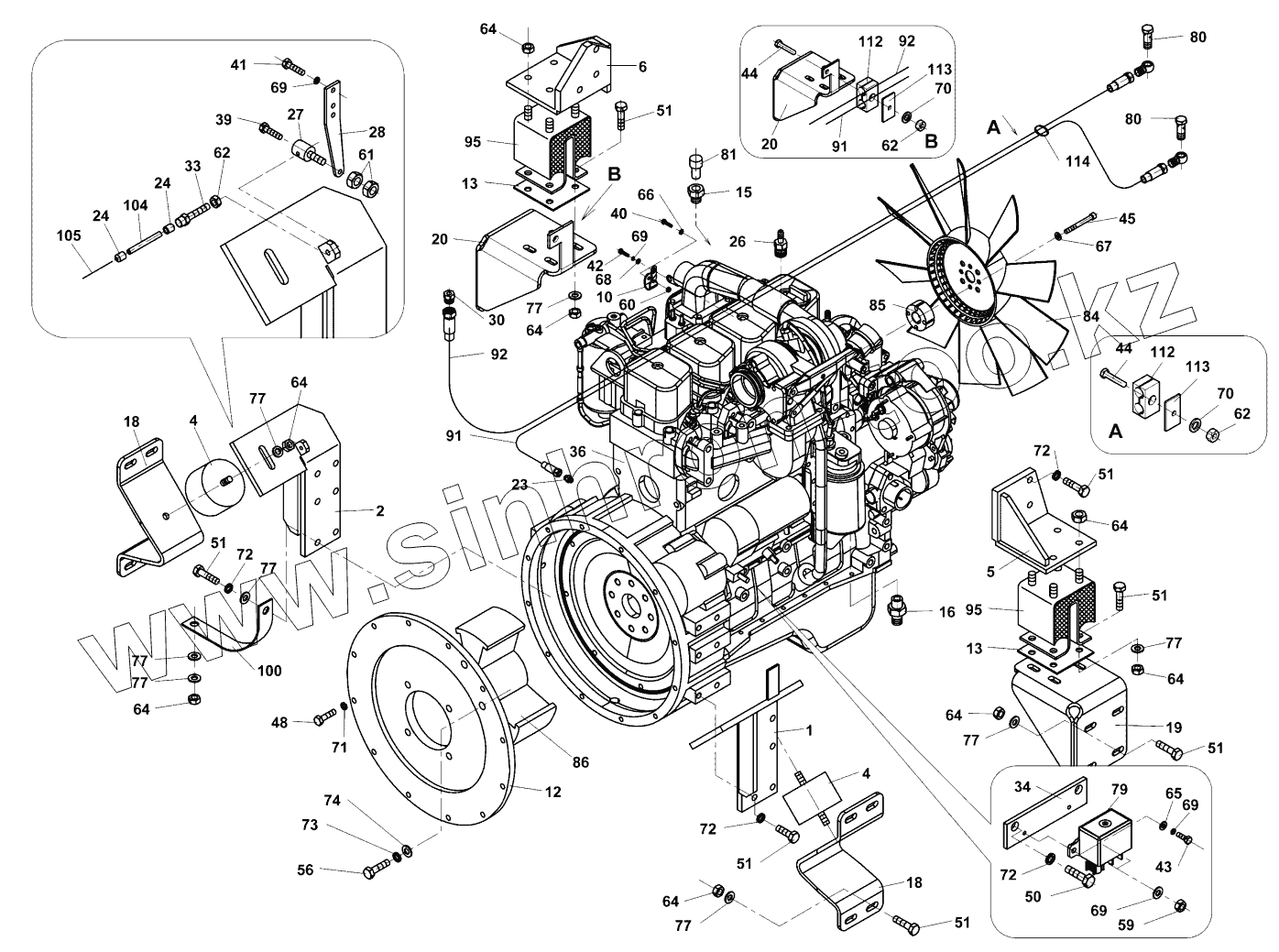

Каталог запасных частей к технике: Ammann ASC 100. Engine
1
2
4
4
5
6
10
12
13
13
15
16
18
18
18
19
20
20
23
24
24
26
27
28
30
33
34
36
39
40
41
42
43
44
44
45
48
50
51
51
51
51
51
51
51
56
59
60
61
62
62
62
64
64
64
64
64
64
64
64
65
66
67
68
69
69
69
69
70
70
71
72
72
72
72
73
74
77
77
77
77
77
77
77
77
79
80
80
81
84
85
86
91
91
92
92
95
95
100
104
105
112
112
113
113
114
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107049 | 4-107049 | Engine | |
| 1 | 4-323683 | Motor bracket | |
| 2 | 4-323684 | Motor bracket | |
| 4 | 4-6160070620 | Rubber mount | |
| 5 | 4-318321 | Bracket | |
| 6 | 4-324179 | Motor bracket | |
| 10 | 4-442774 | Holder | |
| 12 | 4-323692 | Flange | |
| 13 | 4-433832 | Washer | |
| 15 | 4-315885 | Reduction | |
| 16 | 4-315882 | Coupling piece | |
| 18 | 4-210925 | Bracket | |
| 19 | 4-210604 | Bracket | |
| 20 | 4-211612 | Bracket | |
| 23 | 4-5160650113 | Connector | |
| 24 | 4-438736 | End fitting | |
| 26 | 4-319344 | Connection | |
| 27 | 4-435106 | Screw | |
| 28 | 4-323828 | Gas lever | |
| 30 | 4-437488 | Pipe socket | |
| 33 | 4-435095 | Tension screw | |
| 34 | 4-10491A | Holder | |
| 36 | 4-9501000074 | Engine | |
| 39 | 4-3002505008 | Hexagon head screw | |
| 40 | 4-3002505025 | Hexagon head screw | |
| 41 | 4-3002506010 | Hexagon head screw | |
| 42 | 4-3002505035 | Hexagon head screw | |
| 43 | 4-3002506012 | Hexagon head screw | |
| 44 | 4-3001508050 | Hexagon head screw | |
| 45 | 4-3114308075 | Socket head cap screw | |
| 48 | 4-3001510035 | Hexagon head screw | |
| 50 | 4-3002512025 | Hexagon head screw | |
| 51 | 4-3002512035 | Hexagon head screw | |
| 56 | 4-3002516020 | Hexagon head screw | |
| 59 | 4-3149200060 | ГАЙКА | |
| 60 | 4-3048500050 | Hexagon nut | |
| 61 | 4-3048500060 | Hexagon nut | |
| 62 | 4-3048500080 | Hexagon nut | |
| 64 | 4-3530020120 | Nut | |
| 65 | 4-3170200064 | ШАЙБА | |
| 66 | 4-3174000051 | Lock washer | |
| 67 | 4-3170200084 | ШАЙБА | |
| 68 | 4-3172600053 | Washer | |
| 69 | 4-3900017060 | Spring washer | |
| 70 | 4-3900017080 | Spring washer | |
| 71 | 4-3900017100 | Spring washer | |
| 72 | 4-3900017120 | Spring washer | |
| 73 | 4-3900017160 | Spring washer | |
| 74 | 4-3170200170 | Washer | |
| 77 | 4-3679600130 | Strain washer | |
| 79 | 4-5422070104 | Contactor | |
| 80 | 4-5160680001 | Flow control screw | |
| 81 | 4-5451080094 | Switch | |
| 84 | 4-9501000074A | Fan | |
| 85 | 4-9501000074B | Intermediate piece | |
| 86 | 4-9512000332 | Hydraulic coupling | |
| 91 | 4-5160571816 | Hydraulic hose | |
| 92 | 4-5160571817 | Hydraulic hose | |
| 95 | 4-5353070108 | Rubber mount | |
| 100 | 4-5422740008 | Band | |
| 104 | 4-612167 | Bowden cable | |
| 105 | 4-612168 | Wire cable | |
| 112 | 4-5160580027 | Sleeve | |
| 113 | 4-5358050032 | Cap | |
| 114 | 4-6150051016 | Staple strip |
