Каталог запасных частей к технике: Ammann ASC 100. Cooling system
1
3
5
5
6
7
8
8
9
10
11
12
13
13
18
18
19
20
24
25
26
27
28
29
32
33
35
35
36
37
41
42
42
42
43
43
44
44
45
45
45
45
46
48
49
49
49
49
50
51
52
52
53
55
55
56
57
60
61
61
62
62
63
63
64
64
64
65
65
66
66

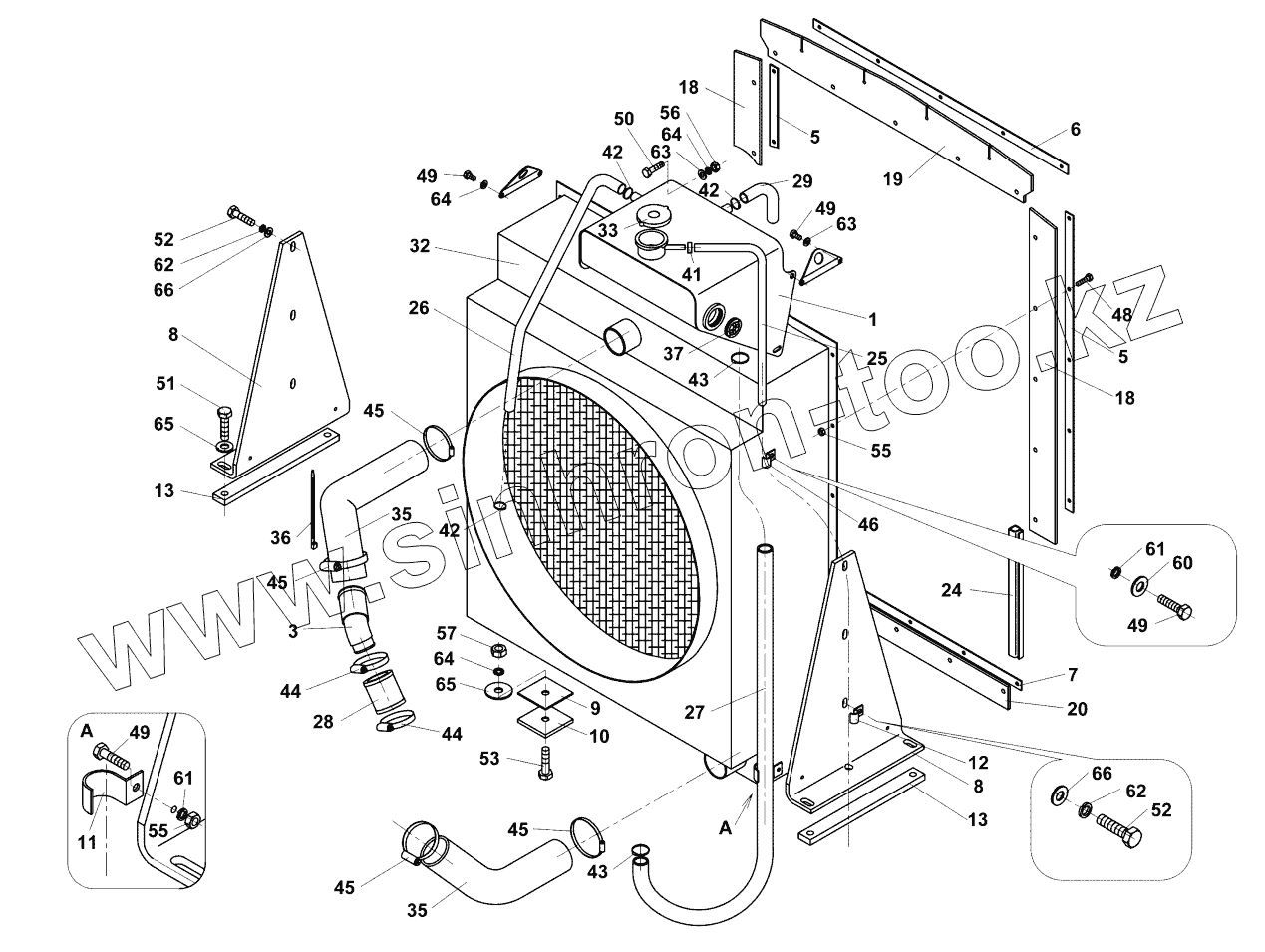

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107053 | 4-107053 | Cooling system | |
| 1 | 4-209462 | Tank | |
| 3 | 4-440832 | Manifold | |
| 5 | 4-319847 | Plate | |
| 6 | 4-319849 | Plate | |
| 7 | 4-319865 | Plate | |
| 8 | 4-208617 | Bracket | |
| 9 | 4-436785 | Spacer | |
| 10 | 4-436786 | Spacer | |
| 11 | 4-437276 | Clip | |
| 12 | 4-5531020095 | Clip | |
| 13 | 4-436800 | Plate | |
| 18 | 4-324992 | Diaphragm | |
| 19 | 4-324991 | Diaphragm | |
| 20 | 4-319855 | Diaphragm | |
| 24 | 4-612158 | Gasket | |
| 25 | 4-612160 | Hose | |
| 26 | 4-613654 | Hose | |
| 27 | 4-612157 | Cooler hose | |
| 28 | 4-612802 | Clutch | |
| 29 | 4-611818 | Hose | |
| 32 | 1162465 | Oil-water-air cooler | |
| 33 | 4-9500000057 | Plug | |
| 35 | 4-6160084037 | Elbow | |
| 36 | 4-6150051017 | Staple strip | |
| 37 | 4-5536860011 | Inspection glass | |
| 41 | 4-5531020061 | Clip | |
| 42 | 4-5531020002 | Hose clamp | |
| 43 | 4-5531020074 | Hose clamp | |
| 44 | 4-5531020070 | Hose clamp | |
| 45 | 4-5531020075 | Hose clamp | |
| 46 | 4-5531020082 | Clip | |
| 48 | 4-3002506016 | Hexagon head screw | |
| 49 | 4-3002506020 | Hexagon head screw | |
| 50 | 4-3002508020 | Hexagon head screw | |
| 51 | 4-3002512035 | Hexagon head screw | |
| 52 | 4-3002508030 | Hexagon head screw | |
| 53 | 4-3002512040 | Hexagon head screw | |
| 55 | 4-3048500060 | Hexagon nut | |
| 56 | 4-3048500080 | Hexagon nut | |
| 57 | 4-3048500120 | Hexagon nut | |
| 60 | 4-3170200064 | ШАЙБА | |
| 61 | 4-3900017060 | Spring washer | |
| 62 | 4-3900017080 | Spring washer | |
| 63 | 4-3170200084 | ШАЙБА | |
| 64 | 4-3900017120 | Spring washer | |
| 65 | 4-3172700140 | Washer | |
| 66 | 4-3172700090 | Washer |
