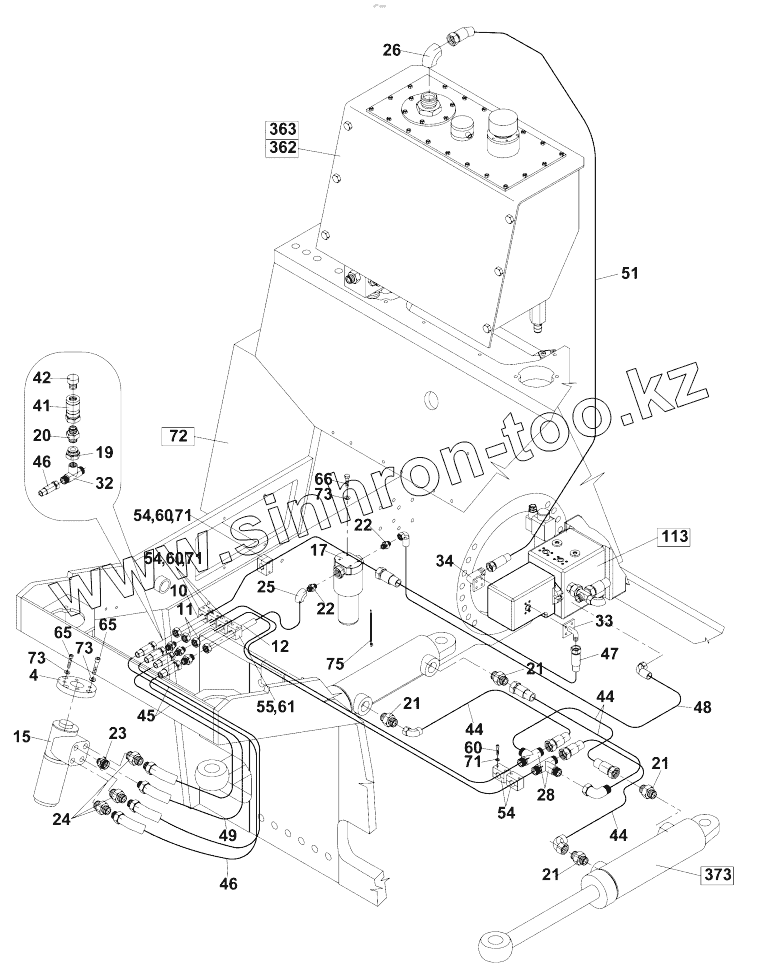

Каталог запасных частей к технике: Ammann ASC 100. Steering hydraulics
4
10
11
12
15
17
19
20
21
21
21
21
22
22
23
24
25
26
28
32
33
34
41
42
44
44
44
45
46
46
47
48
49
51
54
54
54
55
60
60
60
61
65
65
66
71
71
71
73
73
73
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107119 | 4-107119 | Steering hydraulics | |
| 4 | 4-312610 | Plate | |
| 10 | 4-613606 | Pipe | |
| 11 | 4-612006 | Pipe | |
| 12 | 4-613673 | Pipe | |
| 15 | 4-5451100047 | Power steering | |
| 17 | 4-5358520113 | Filter | |
| 19 | 4-5160660082 | Clutch | |
| 20 | 4-5160650050 | Screwed connection | |
| 21 | 4-5160650045 | Connector | |
| 22 | 4-5160572080 | Connector | |
| 23 | 4-5160650056 | Screwed connection | |
| 24 | 4-5160650085 | Screwed connection | |
| 25 | 4-5160660027 | Adjustable male stud run | |
| 26 | 4-5160660066 | Adjustable male stud run | |
| 28 | 4-5160660067 | T-socket | |
| 32 | 4-5160670056 | T-socket | |
| 33 | 4-5160680050 | Flange | |
| 34 | 4-5160680164 | Flange | |
| 41 | 4-5358050082 | Quick-release coupling | |
| 42 | 4-5160660083 | Cover | |
| 44 | 4-5160571650 | Hydraulic hose | |
| 45 | 4-5160570628 | Hydraulic hose | |
| 46 | 4-5160570629 | Hydraulic hose | |
| 47 | 4-5160571651 | Hydraulic hose | |
| 48 | 4-5160571012 | Hydraulic hose | |
| 49 | 4-5160570631 | Hydraulic hose | |
| 51 | 4-5160571664 | Hydraulic hose | |
| 54 | 4-5358050024 | Sleeve | |
| 55 | 4-5358050038 | Sleeve | |
| 60 | 4-3114306028 | Socket head cap screw | |
| 61 | 4-3114306030 | Socket head cap screw | |
| 65 | 4-3114310020 | Socket head cap screw | |
| 66 | 4-3002510025 | Hexagon head screw | |
| 71 | 4-3170200064 | ШАЙБА | |
| 73 | 4-3900017100 | Spring washer | |
| 75 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
