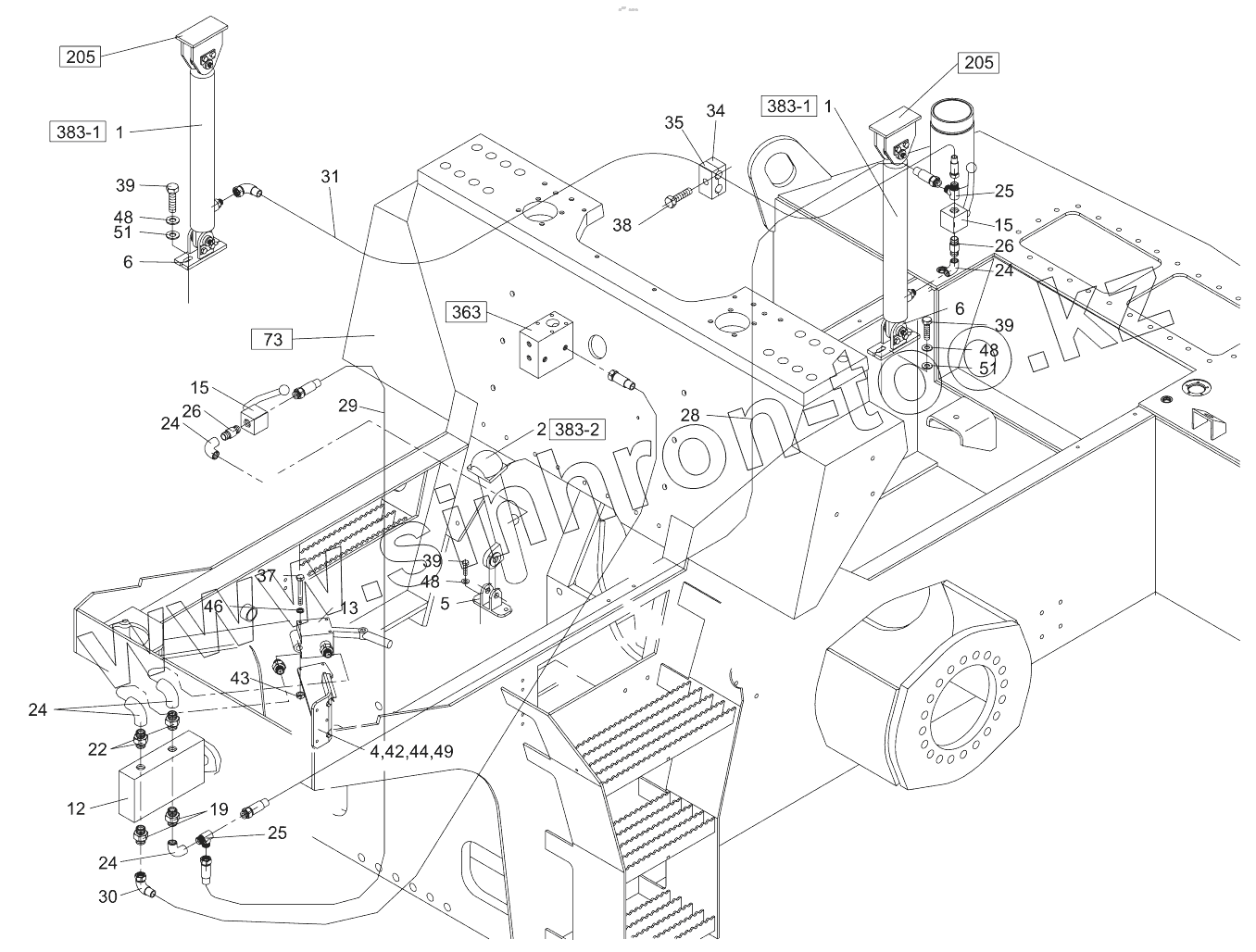

Каталог запасных частей к технике: Ammann ASC 100. Lifting hydraulics
1
1
2
4
5
6
6
12
13
15
15
19
22
24
24
24
24
25
25
26
26
28
29
30
31
34
35
37
38
39
39
39
42
43
44
46
48
48
48
49
51
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107146 | 4-107146 | Hydraulic system | |
| 1 | 4-S209500_A | Fluid motor | |
| 2 | 4-S209432_A | Fluid motor | |
| 4 | 4-323949 | Holder | |
| 5 | 4-324082 | Bracket | |
| 6 | 4-323948 | Bracket | |
| 12 | 4-5451050060 | Block | |
| 13 | 4-S5451080041 | Hand pump | |
| 15 | 4-5160650159 | Ball cock | |
| 19 | 4-5160650126 | Screwed connection | |
| 22 | 4-5160650112 | Connector | |
| 24 | 4-5160670076 | Adjustable male stud run | |
| 25 | 4-5160660078 | L-connection | |
| 26 | 4-5160660119 | Clutch | |
| 28 | 4-5160571205 | Hydraulic hose | |
| 29 | 4-5160571671 | Hydraulic hose | |
| 30 | 4-5160571047 | Hydraulic hose | |
| 31 | 4-5160571669 | Hydraulic hose | |
| 34 | 4-5358050076 | Sleeve | |
| 35 | 4-5358050032 | Cap | |
| 37 | 4-3001506070 | Hexagon head screw | |
| 38 | 4-3001508035 | Hexagon head screw | |
| 39 | 4-3002512030 | Hexagon head screw | |
| 42 | 4-3001508028 | Hexagon head screw | |
| 43 | 4-3048500060 | Hexagon nut | |
| 44 | 4-3048500080 | Hexagon nut | |
| 46 | 4-3174000061 | Lock washer | |
| 48 | 4-3900017120 | Spring washer | |
| 49 | 4-3900017080 | Spring washer | |
| 51 | 4-3679600130 | Strain washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
