Каталог запасных частей к технике: Ammann ASC 100. Driving hydraulics
1
3
3
4
5
6
10
11
12
14
16
17
18
21
22
23
26
26
26
26
27
28
29
30
30
31
33
33
36
37
39
42
44
44
44
45
45
50
50
51
54
54
54
54
54
54
54
56
56
56
56
56
56
56
56
57
66
67
68
69
70
70
71
72
73
74
75
78
79
81
82
83
85
86
88
88
88
90
92
94
95
97
97
100
100
100
101
103
105
106
107
107
107
107
107
107
110
110
113
113
115
118
118
118
118
121
122
124

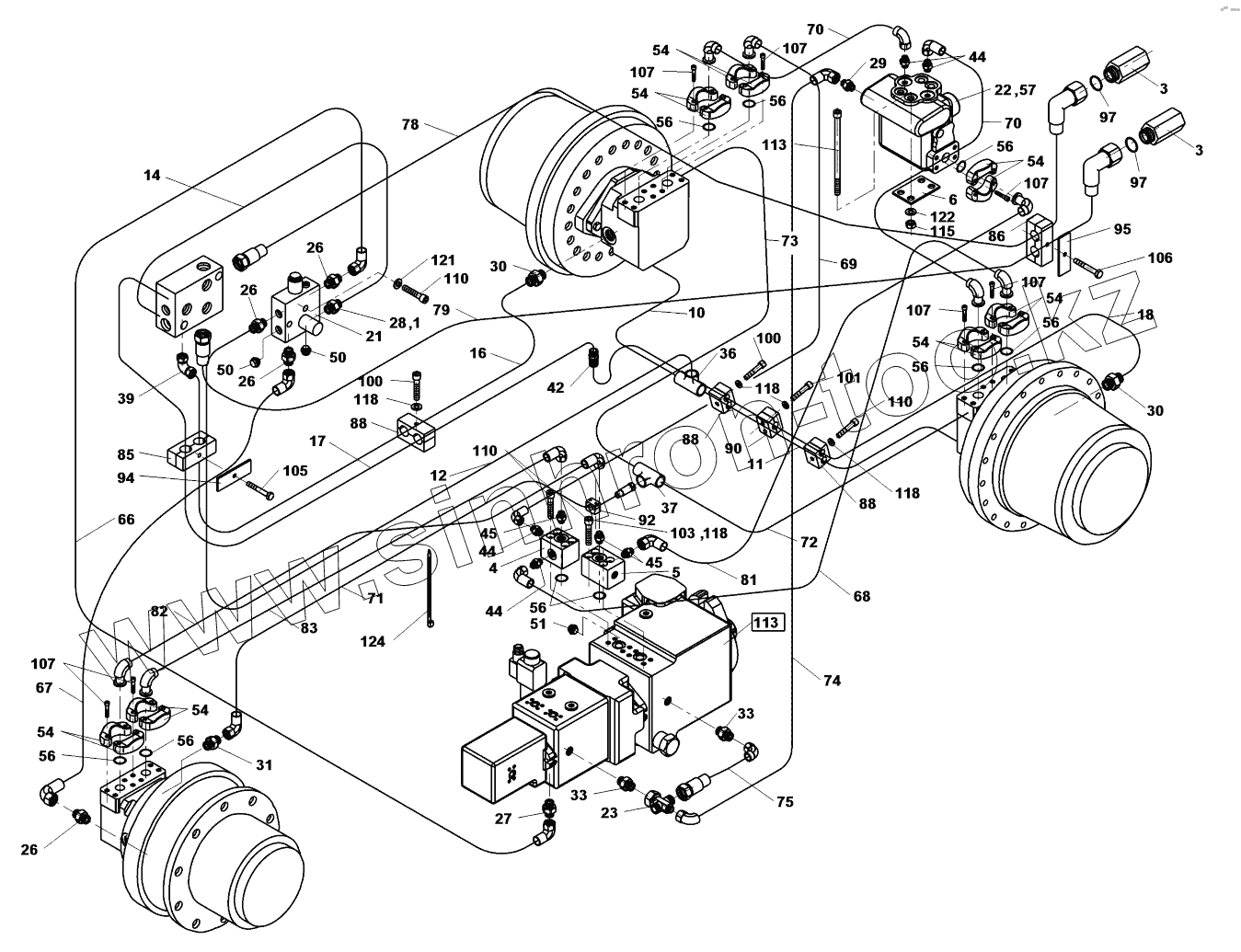

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107117 | 4-107117 | Driving hydraulics | |
| 1 | 4-442833 | Diaphragm | |
| 3 | 4-319877 | Connector | |
| 4 | 4-323956 | Cube | |
| 5 | 4-323957 | Cube | |
| 6 | 4-442829 | Washer | |
| 10 | 4-613595 | Pipe | |
| 11 | 4-613596 | Pipe | |
| 12 | 4-613669 | Pipe | |
| 14 | 4-613678 | Pipe | |
| 16 | 4-613679 | Pipe | |
| 17 | 4-613672 | Pipe | |
| 18 | 4-613601 | Pipe | |
| 21 | 4-5451050067 | Hydraulic brake block | |
| 22 | 4-5451050101 | Block | |
| 23 | 4-5160571337 | Hydraulic body | |
| 26 | 4-5160650058 | Screwed connection | |
| 27 | 4-5160650105 | Screwed connection | |
| 28 | 4-5160650078 | Connector | |
| 29 | 4-5160650085 | Screwed connection | |
| 30 | 4-5160650086 | Connector | |
| 31 | 4-5160650033 | Connector | |
| 33 | 4-5160571630 | Connector | |
| 36 | 4-5160660059 | T-socket | |
| 37 | 4-5160660100 | T-socket | |
| 39 | 4-5160670029 | Screwed connection | |
| 42 | 4-5160660012 | Clutch | |
| 44 | 4-5160650134 | Connector | |
| 45 | 4-5160650120 | Connector | |
| 50 | 4-5160670114 | Plug | |
| 51 | 4-5160670040 | Plug | |
| 54 | 4-5160580016 | Yoke | |
| 56 | 4-6160142202 | O-ring | |
| 57 | 4-6160142203 | O-ring | |
| 66 | 4-5160571652 | Hydraulic hose | |
| 67 | 4-5160571653 | Hydraulic hose | |
| 68 | 4-5160571656 | Hydraulic hose | |
| 69 | 4-5160571657 | Hydraulic hose | |
| 70 | 4-5160571660 | Hydraulic hose | |
| 71 | 4-5160571661 | Hydraulic hose | |
| 72 | 4-5160571673 | Hydraulic hose | |
| 73 | 4-5160571672 | Hydraulic hose | |
| 74 | 4-5160571654 | Hydraulic hose | |
| 75 | 4-5160570203 | Hydraulic hose | |
| 78 | 4-5160571648 | Hydraulic hose | |
| 79 | 4-5160570615 | Hydraulic hose | |
| 81 | 4-5160571658 | Hydraulic hose | |
| 82 | 4-5160571659 | Hydraulic hose | |
| 83 | 4-5160571662 | Hydraulic hose | |
| 85 | 4-5358050027 | Sleeve | |
| 86 | 4-5358050061 | Sleeve | |
| 88 | 4-5358050022 | Sleeve | |
| 90 | 4-5358050024 | Sleeve | |
| 92 | 4-5358050034 | Sleeve | |
| 94 | 4-5358050032 | Cap | |
| 95 | 4-5358050059 | Cap | |
| 97 | 4-6090010424 | Sealing ring | |
| 100 | 4-3114306022 | Socket head cap screw | |
| 101 | 4-3114306028 | Socket head cap screw | |
| 103 | 4-3114306030 | Socket head cap screw | |
| 105 | 4-3001508035 | Hexagon head screw | |
| 106 | 4-3114308065 | Socket head cap screw | |
| 107 | 4-3001510035 | Hexagon head screw | |
| 110 | 4-3114310060 | Socket head cap screw | |
| 113 | 4-3114312160 | Socket head cap screw | |
| 115 | 4-3048500120 | Hexagon nut | |
| 118 | 4-3170200064 | ШАЙБА | |
| 121 | 4-3900017100 | Spring washer | |
| 122 | 4-3900017120 | Spring washer | |
| 124 | 4-6150051019 | Staple strip |
