Каталог запасных частей к технике: Ammann ARS122. Smooth Drum
1
2
3
4
4
4
5
6
7
7
8
9
10
11
12
13
13
14
14
14
15
16
17
17
18
18
19
20
21
21
22
23
24
24
24
24
25
25.01
26
27
27
28
29
29
30
31
31
32
33
33
34
35
35
36
36
36
37
38
39
40
41
42
42
43
44
44
45
46
46
47
48

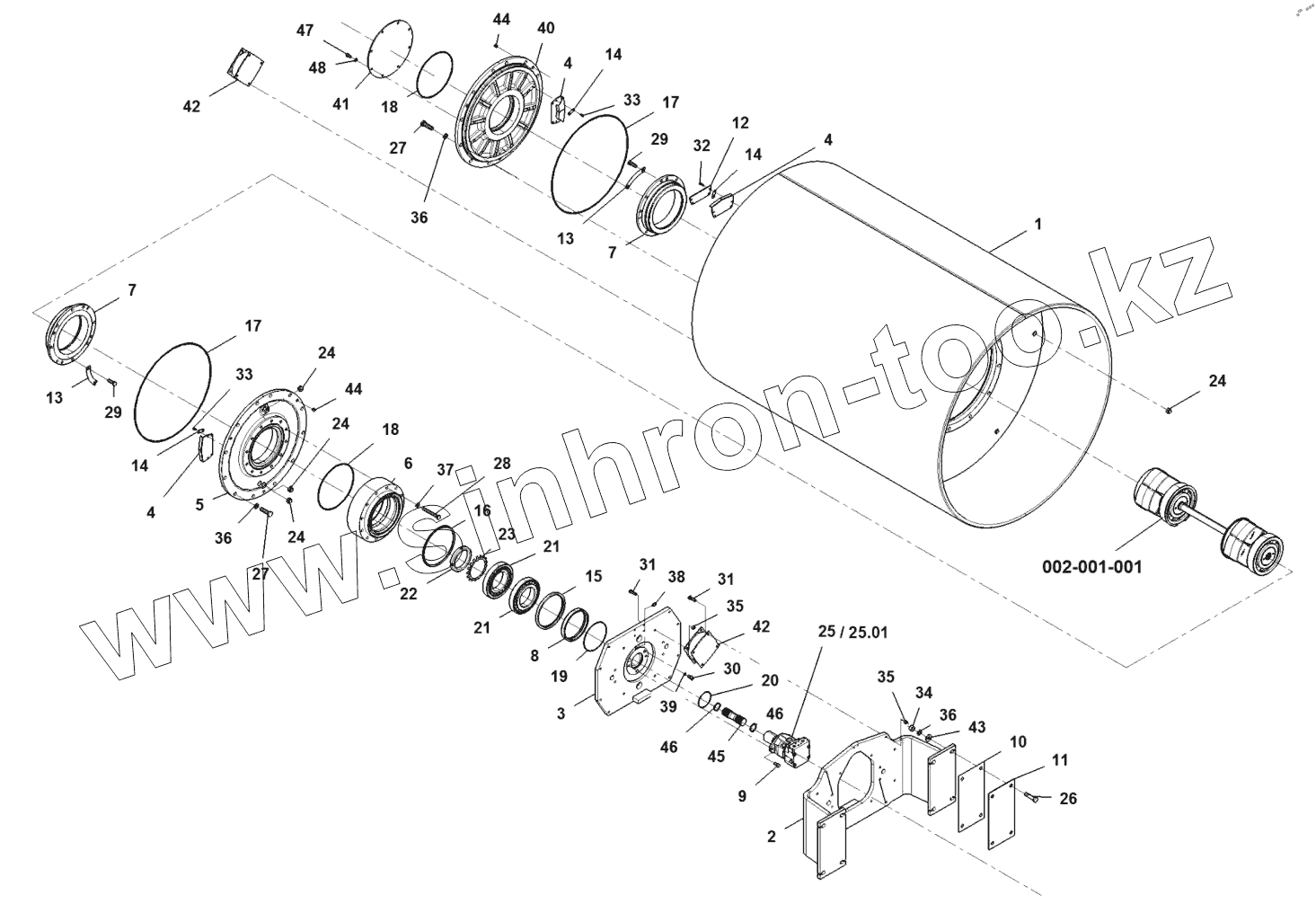

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1472837 | 1472837 | Smooth Drum | |
| 1 | 1472009 | Drum | |
| 2 | 4-210558 | Bracket | |
| 3 | 4-107063 | Plate | |
| 4 | 4-319450 | Oil feed pipe | |
| 5 | 4-105347 | Cover | |
| 6 | 4-208611 | Hub | |
| 7 | 4-11584A | Cover | |
| 8 | 4-316730 | Ring | |
| 9 | 4-3600012030 | Hexagon head screw | |
| 10 | 4-442661 | Spacer | |
| 11 | 4-442662 | Spacer | |
| 12 | 4-320354 | Washer | |
| 13 | 4-11585A | Washer | |
| 14 | 4-437218 | Lock washer | |
| 15 | 4-6160070411 | Gasket | |
| 16 | 4-5462041020 | Ring | |
| 17 | 4-6160141006 | Ring | |
| 18 | 4-6160141007 | Ring | |
| 19 | 4-6160141003 | Ring | |
| 20 | 4-6160141001 | Ring | |
| 21 | 4-5462070026 | Bearing | |
| 22 | 4-5462110042 | Nut | |
| 23 | 4-5462110162 | Plate | |
| 24 | 4-5358570028 | Plug | |
| 25 | 1521459 | Fluid motor | |
| 25.01 | 1521319 | Sealing Kit | |
| 26 | 4-3001520080 | Hexagon head screw | |
| 27 | 4-3001520070 | Hexagon head screw | |
| 28 | 4-3001516130 | Hexagon head screw | |
| 29 | 4-3002516050 | Hexagon head screw | |
| 30 | 4-3114314025 | Socket head cap screw | |
| 31 | 4-3002512045 | Hexagon head screw | |
| 32 | 4-3002508025 | Hexagon head screw | |
| 33 | 4-3002508016 | Hexagon head screw | |
| 34 | 4-3048500200 | Hexagon nut | |
| 35 | 4-3530020120 | Nut | |
| 36 | 4-3900017200 | Spring washer | |
| 37 | 4-3900017160 | Spring washer | |
| 38 | 4-5353080052 | Venting valve | |
| 39 | 1451528 | Sealing ring | |
| 40 | 4-105411 | Cover | |
| 41 | 4-319724 | Cap | |
| 42 | 4-9200000031 | Rubber mount | |
| 43 | 4-3679600210 | Strain washer | |
| 44 | 4-5358570046 | Plug | |
| 45 | 4-319485 | Clutch | |
| 46 | 4-5535010048 | Circlip | |
| 47 | 4-3002512025 | Hexagon head screw | |
| 48 | 4-3900017120 | Spring washer |
