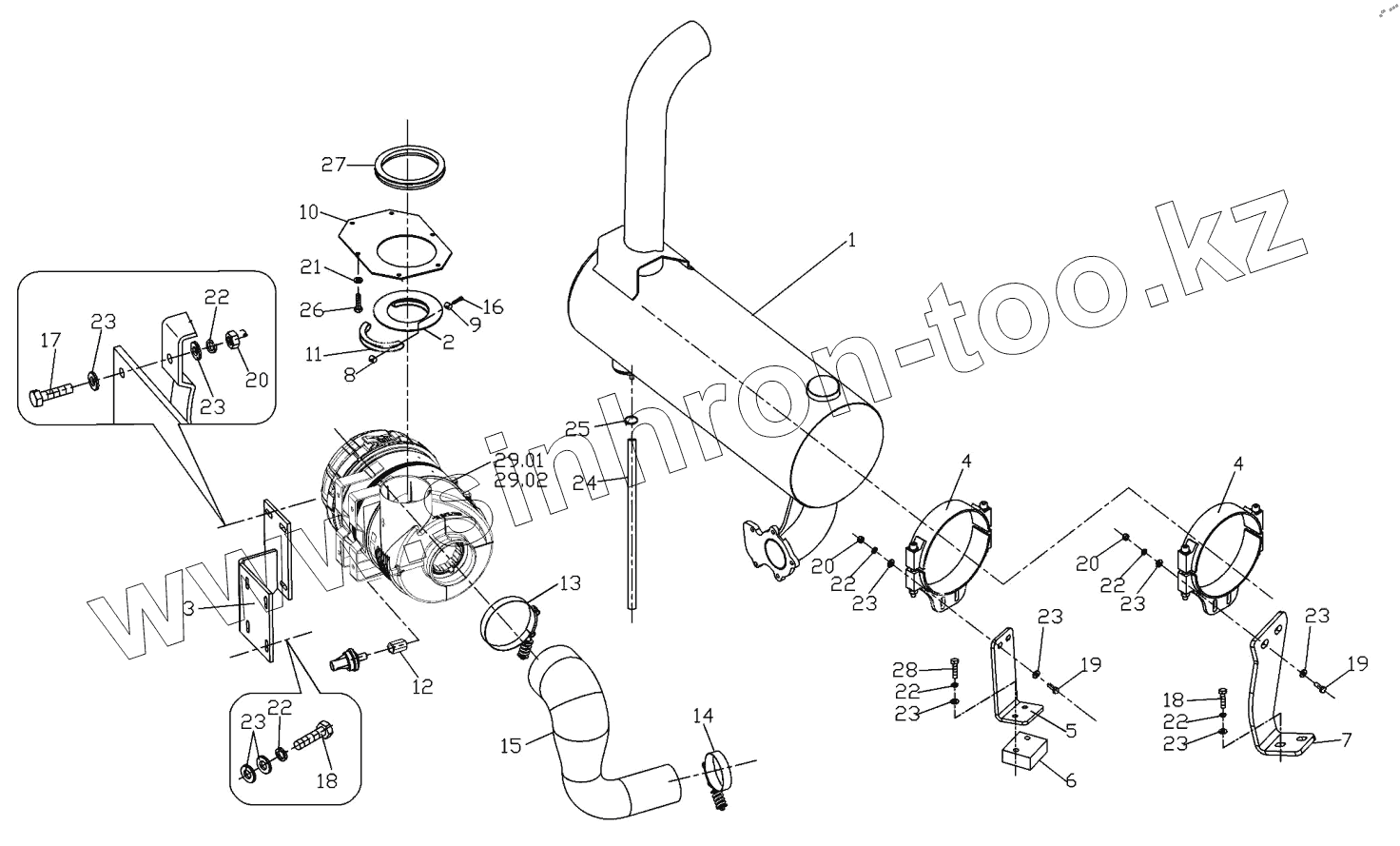

Каталог запасных частей к технике: Ammann ARS122. Intake and exhaust Assembly
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
20
21
22
22
22
22
22
22
23
23
23
23
23
23
23
23
23
24
25
26
27
28
29.01
29.02
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1471934 | 1471934 | Intake and exhaust Assembly | |
| 1 | 1450914 | Silencer | |
| 2 | 1471943 | Diaphragm | |
| 3 | 1471931 | Air filter holder | |
| 4 | 1472012 | Sleeve | |
| 5 | 1471982 | Silencer support | |
| 6 | 1472256 | Plate | |
| 7 | 1472271 | Silencer support | |
| 8 | 4-431148 | Nut | |
| 9 | 4-431146 | Cylinder | |
| 10 | 1472069 | Plate | |
| 11 | 1471945 | Sleeve | |
| 12 | 1472097 | Nipple | |
| 13 | 1457037 | Hose clamp | |
| 14 | 1457031 | T-bolt clamp | |
| 15 | 1450916 | Rubber connector | |
| 16 | 4-3114306040 | Socket head cap screw | |
| 17 | 4-3002510030 | Hexagon head screw | |
| 18 | 4-3002510025 | Hexagon head screw | |
| 19 | 4-3001510035 | Hexagon head screw | |
| 20 | 4-3530021100 | Nut | |
| 21 | 4-3900017080 | Spring washer | |
| 22 | 4-3900017100 | Spring washer | |
| 23 | 4-3170200105 | Washer | |
| 24 | 1451589 | Hose | |
| 25 | 4-5531020073 | Hose clamp | |
| 26 | 4-3002508016 | Hexagon head screw | |
| 27 | 1472828 | Rubber profile | |
| 28 | 4-3001510060 | Hexagon head screw | |
| 29.01 | 1450897 | Air Filter Primary | |
| 29.02 | 1450898 | Air Filter Secondary |
