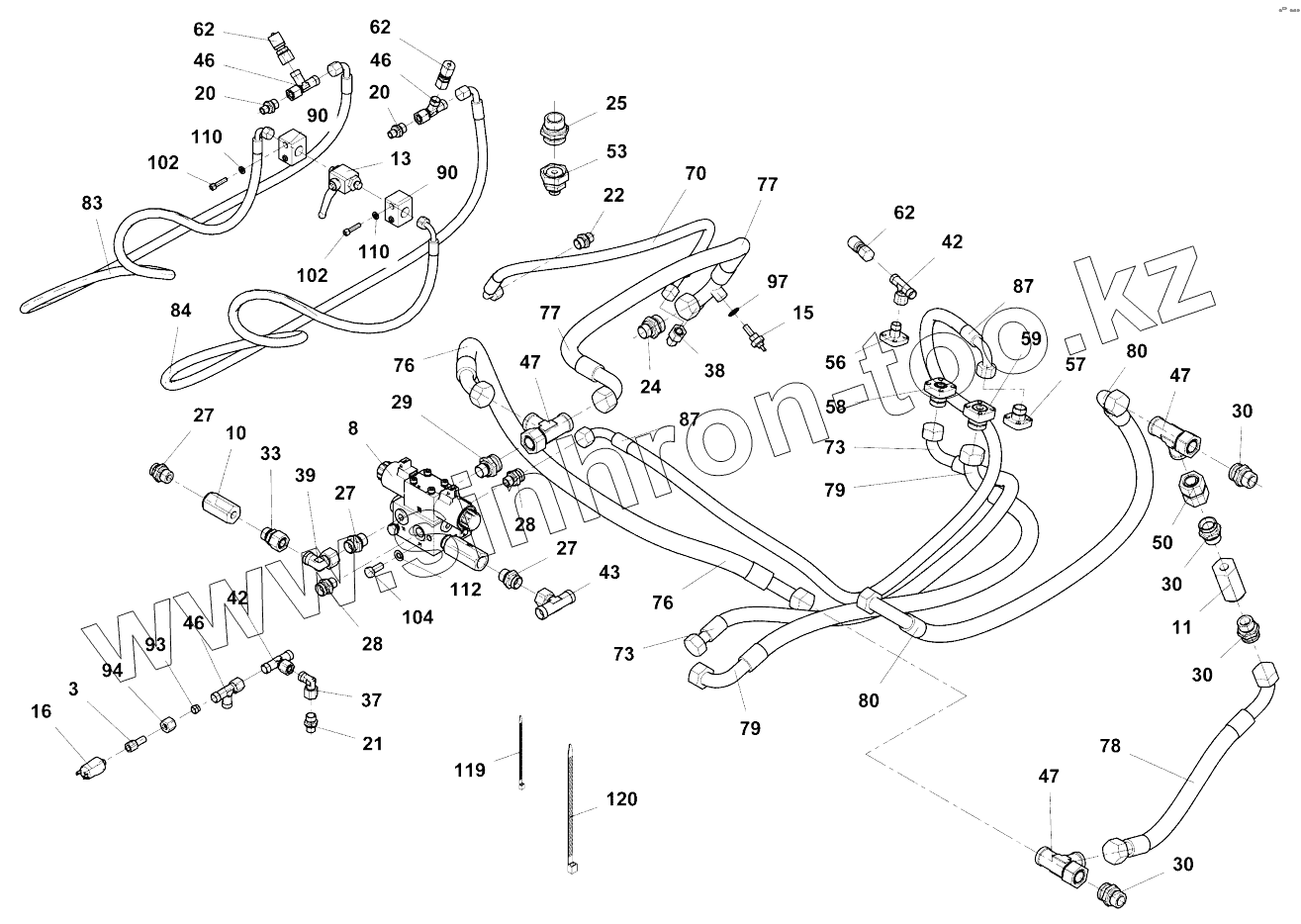

Каталог запасных частей к технике: Ammann ARP 35. Pump hydraulics
3
8
10
11
13
15
16
20
20
21
22
24
25
27
27
27
28
28
29
30
30
30
30
33
37
38
39
42
42
43
46
46
46
47
47
47
50
53
56
57
58
59
62
62
62
70
73
73
76
76
77
77
78
79
79
80
80
83
84
87
87
90
90
93
94
97
102
102
104
110
110
112
119
120
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-13043 | 4-13043 | Pump hydraulics | |
| 3 | 4-441501 | Clutch | |
| 8 | 4-5451050045 | Vibration hydraulic block | |
| 10 | 4-5451060031 | Nonreturn valve | |
| 11 | 4-5451060019 | Valve | |
| 13 | 4-5160650159 | Ball cock | |
| 15 | 4-5503580053 | Temperature switch | |
| 16 | 4-5451080112 | Switch | |
| 20 | 4-5160650105 | Screwed connection | |
| 21 | 4-5160650035 | Screwed connection | |
| 22 | 4-5160650059 | Screwed connection | |
| 24 | 4-5160650031 | Screwed connection | |
| 25 | 4-5160650067 | Screwed connection | |
| 27 | 4-5160650085 | Screwed connection | |
| 28 | 4-5160650050 | Screwed connection | |
| 29 | 4-5160650056 | Screwed connection | |
| 30 | 4-5160650102 | Screwed connection | |
| 33 | 1175178 | Reduction | |
| 37 | 4-5160670087 | Screwed connection | |
| 38 | 4-5160670028 | Screwed connection | |
| 39 | 4-5160670029 | Screwed connection | |
| 42 | 4-5160670055 | T-connection | |
| 43 | 4-5160670054 | T-connection | |
| 46 | 4-5160670075 | L-connection | |
| 47 | 4-5160660063 | L-connection | |
| 50 | 4-5160660089 | Swivel union | |
| 53 | 4-5160670105 | Reduction | |
| 56 | 4-5160680035 | Flange | |
| 57 | 4-5160670057 | Flange | |
| 58 | 1174639 | Flange | |
| 59 | 4-5160670058 | Flange | |
| 62 | 4-5160660047 | Clutch | |
| 70 | 1174380 | Hydr hose | |
| 73 | 4-5160572109 | Hydr hose | |
| 76 | 1174390 | Hydr hose | |
| 77 | 1174389 | Hydr hose | |
| 78 | 4-5160572300 | Hydr hose | |
| 79 | 1174382 | Hydr hose | |
| 80 | 1174381 | Hydr hose | |
| 83 | 4-5160572885 | Hydr hose | |
| 84 | 4-5160572886 | Hydr hose | |
| 87 | 4-5160572887 | Hydr hose | |
| 90 | 4-5160580006 | Clip | |
| 93 | 4-5160600009 | Cutting ring | |
| 94 | 4-5160610002 | Union nut | |
| 97 | 4-6090010465 | Sealing ring | |
| 102 | 4-3114306028 | Socket head cap screw | |
| 104 | 4-3114310025 | Socket head cap screw | |
| 110 | 4-3170200064 | ШАЙБА | |
| 112 | 4-3900017100 | Spring washer | |
| 119 | 4-6150051017 | Staple strip | |
| 120 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
