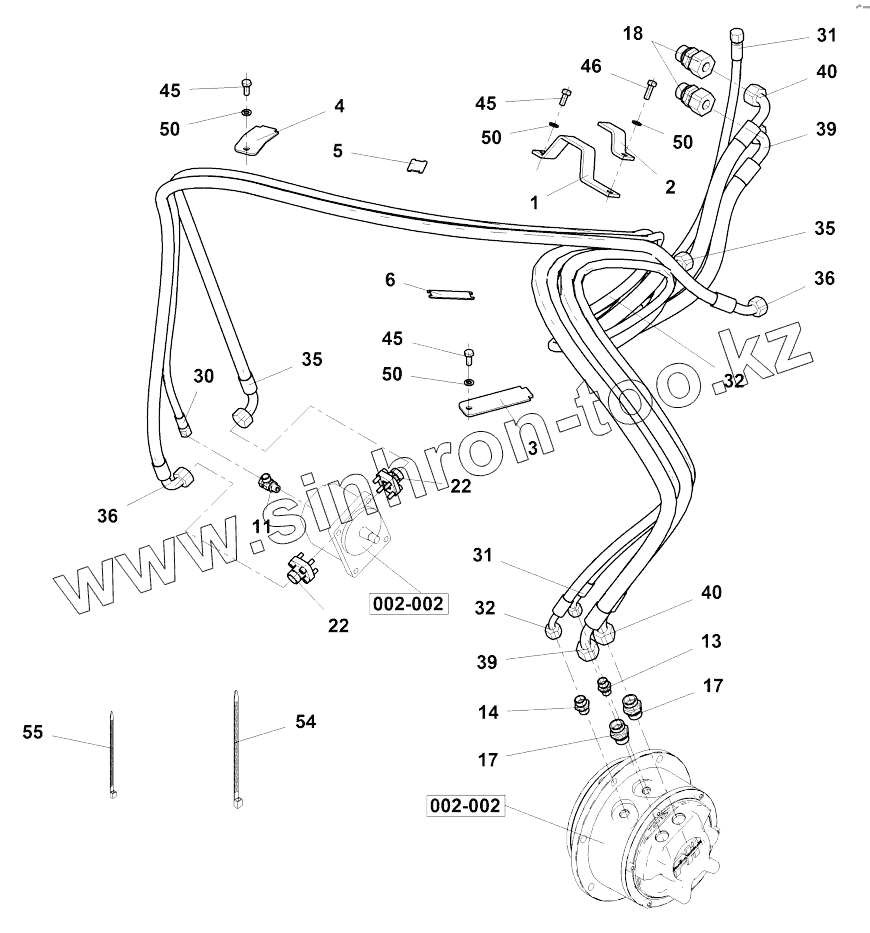

Каталог запасных частей к технике: Ammann ARP 35. Front drum hydraulics
1
2
3
4
5
6
11
13
14
17
17
18
22
22
30
31
31
32
32
35
35
36
36
39
39
40
40
45
45
45
46
50
50
50
50
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-16921 | 4-16921 | Drum hydraulics | |
| 1 | 4-13804 | Holder | |
| 2 | 4-13812 | Holder | |
| 3 | 4-14084 | Plate | |
| 4 | 4-24819 | Plate | |
| 5 | 4-13750 | Plate | |
| 6 | 4-13746 | Plate | |
| 11 | 4-5160680037 | Screwed connection | |
| 13 | 4-5160650035 | Screwed connection | |
| 14 | 4-5160650059 | Screwed connection | |
| 17 | 4-5160650082 | Screwed connection | |
| 18 | 4-5160571348 | Screwed connection | |
| 22 | 4-5160670057 | Flange | |
| 30 | 4-5160573196 | Hydr hose | |
| 31 | 1174379 | Hydr hose | |
| 32 | 1174378 | Hydr hose | |
| 35 | 4-5160572881 | Hydr hose | |
| 36 | 4-5160572882 | Hydr hose | |
| 39 | 4-5160572698 | Hydr hose | |
| 40 | 4-5160572699 | Hydr hose | |
| 45 | 4-3002508020 | Hexagon head screw | |
| 46 | 4-3002508025 | Hexagon head screw | |
| 50 | 4-3900017080 | Spring washer | |
| 54 | 4-6150051019 | Staple strip | |
| 55 | 4-6150051017 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
