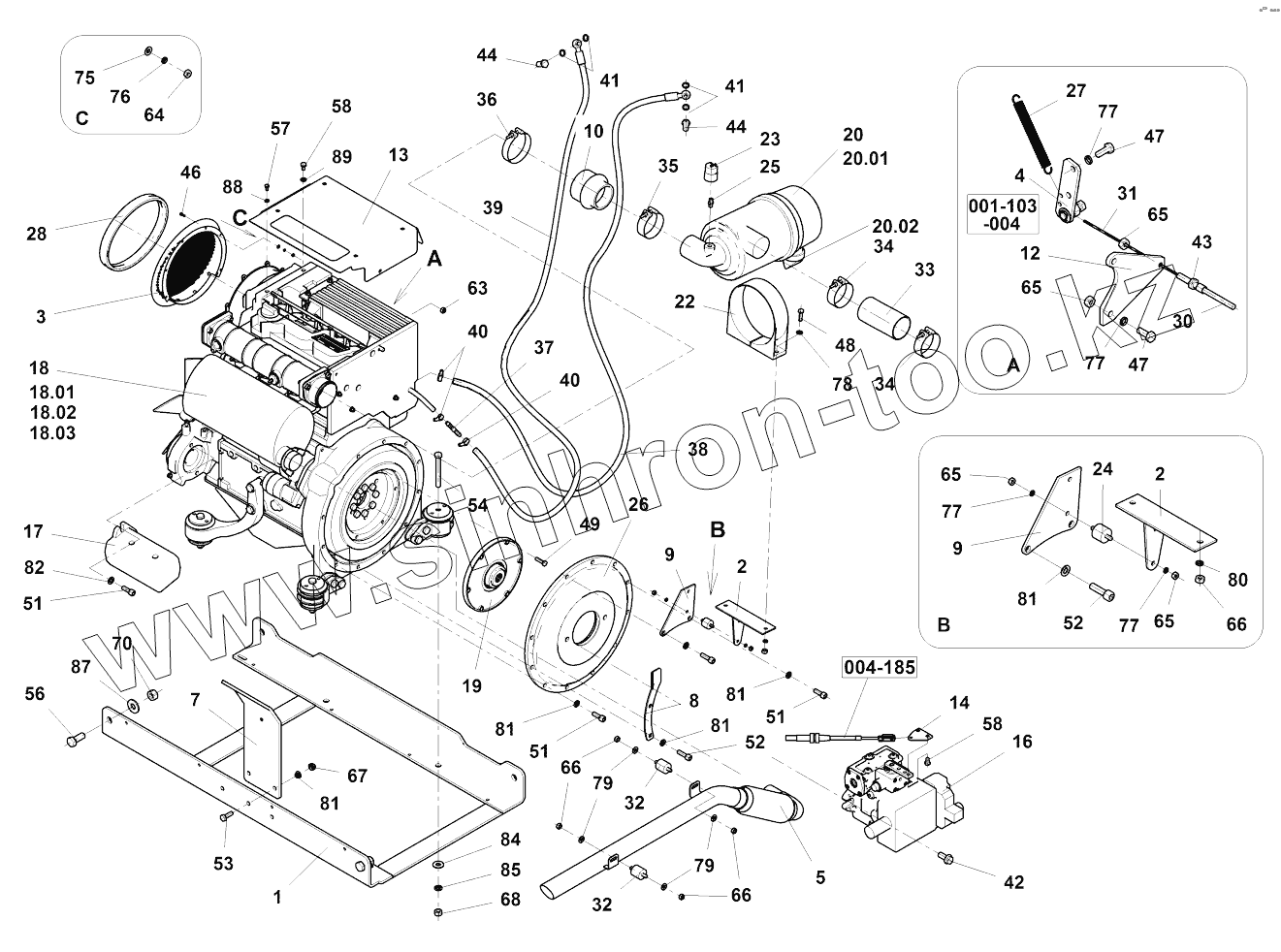

Каталог запасных частей к технике: Ammann ARP 35. Engine
48
63
58
58
57
56
54
53
52
52
51
51
51
49
64
47
47
46
44
44
43
42
41
41
40
40
39
78
89
88
87
85
84
82
81
81
81
81
81
80
79
79
38
77
77
77
77
76
75
70
68
67
66
66
66
65
65
65
65
10
18
17
16
14
13
12
19
9
9
8
7
5
4
3
2
2
1
27
37
36
35
34
34
33
32
32
31
30
28
26
25
24
23
22
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 48 | 4-3001508028 | Hexagon head screw | |
| 63 | 4-3149200060 | ГАЙКА | |
| 58 | 4-3002508014 | Hexagon head screw | |
| 57 | 4-3002506012 | Hexagon head screw | |
| 56 | 4-3002516040 | Hexagon head screw | |
| 54 | 4-3001512100 | Hexagon head screw | |
| 53 | 4-3002510030 | Hexagon head screw | |
| 52 | 4-3114310035 | Socket head cap screw | |
| 51 | 4-3114310030 | Socket head cap screw | |
| 49 | 4-3001508030 | Hexagon head screw | |
| 64 | 4-3140100040 | Hexagon nut | |
| 47 | 4-3002506016 | Hexagon head screw | |
| 46 | 4-3113104012 | Socket head cap screw | |
| 44 | 4-5160571281 | Hollow screw | |
| 43 | 4-5358010100 | Clamping element | |
| 42 | 4-3600014530 | Hexagon head screw | |
| 41 | 4-6090010412 | Sealing ring | |
| 40 | 4-5531020002 | Hose clamp | |
| 39 | 4-5160572684 | Hydr hose | |
| 78 | 4-3170200084 | ШАЙБА | |
| 89 | 4-3900017080 | Spring washer | |
| 88 | 4-3900017060 | Spring washer | |
| 87 | 4-3679600170 | Strain washer | |
| 85 | 4-3900017120 | Spring washer | |
| 84 | 4-3679600130 | Strain washer | |
| 82 | 4-3170600100 | Washer | |
| 81 | 4-3900017100 | Spring washer | |
| 80 | 4-3174000082 | Lock washer | |
| 79 | 4-3679600080 | Strain washer | |
| 38 | 4-5160572683 | Hydr hose | |
| 77 | 4-3174000061 | Lock washer | |
| 76 | 4-3174000041 | Lock washer | |
| 75 | 4-3170200043 | ШАЙБА | |
| 70 | 4-3048500160 | Hexagon nut | |
| 68 | 4-3048500120 | Hexagon nut | |
| 67 | 4-3048500100 | Hexagon nut | |
| 66 | 4-3048500080 | Hexagon nut | |
| 65 | 4-3048500060 | Hexagon nut | |
| 10 | 4-01828A | Reduction | |
| 18.03 | 5-0020005 | Belt | |
| 18.02 | 4-9540000092 | Fuel filter | |
| 18.01 | 4-9540000093 | Engine oil filter | |
| 18 | 4-9540000167 | Engine | |
| 17 | 1215381 | Gear pump | |
| 16 | 4-9540000099 | Pump | |
| 14 | 4-13712 | Lever | |
| 13 | 4-17089 | Cover | |
| 12 | 4-02969A | Holder | |
| 19 | 4-9512000344 | Clutch | |
| 9 | 4-13245 | Plate | |
| 8 | 4-13250 | Holder | |
| 7 | 4-13986 | Holder | |
| 5 | 4-17084 | Exhaust | |
| 4 | 4-S01758A | Gas lever | |
| 3 | 4-01639A | Collar | |
| 2 | 4-13243 | Holder | |
| 1 | 4-13201 | Supporting frame | |
| 27 | 4-4100020039 | Tension spring | |
| 37 | 4-5531020090 | Connector | |
| 36 | 4-5531020056 | Hose clamp | |
| 35 | 4-5531020041 | Hose clamp | |
| 34 | 4-5531020062 | Hose clamp | |
| 33 | 4-5422610070 | Hose | |
| 32 | 4-6160070627 | Rubber mount | |
| 31 | 4-3431125020 | Wire cable | |
| 30 | 4-5358010104 | Hose | |
| 28 | 4-6150020025 | Profile | |
| 4-13009 | 4-13009 | Diesel engine | |
| 26 | 4-9512000371 | Mounting flange | |
| 25 | 4-5358520110 | Intermediate piece | |
| 24 | 4-6160070611 | Rubber mount | |
| 23 | 4-5358520057 | Indicator | |
| 22 | 4-5358520091 | Holder | |
| 20.02 | 1201845 | Dust emptying valve | |
| 20.01 | 4-5358520090 | Air filter element | |
| 20 | 4-5358520109 | Air filter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
