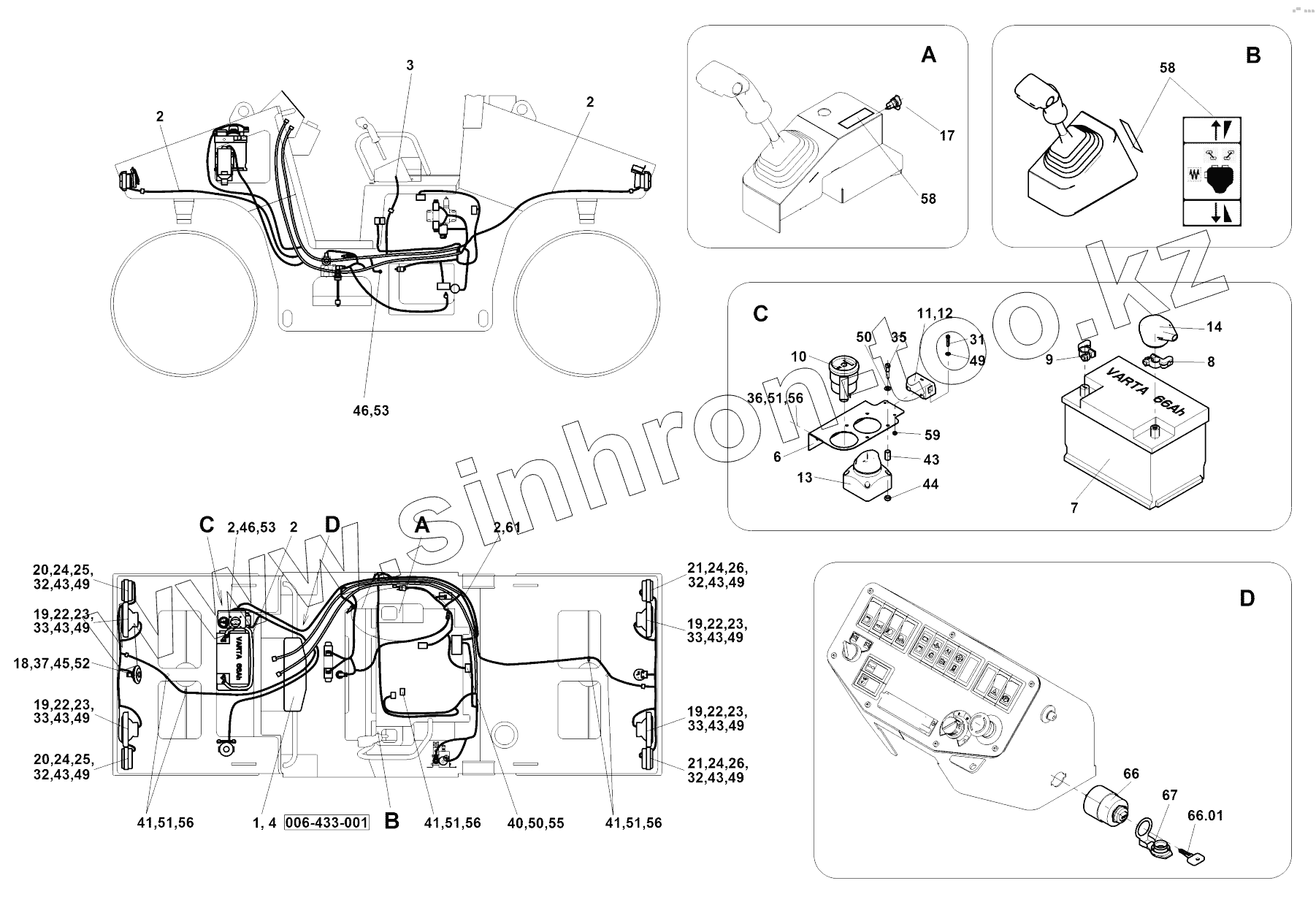

Каталог запасных частей к технике: Ammann ARP 35. Electrical installation PNEU
1
2
2
2
2
2
3
4
6
7
8
9
10
11
12
13
14
17
18
19
19
19
19
20
20
21
21
22
22
22
22
23
23
23
23
24
24
24
24
25
25
26
26
31
32
32
32
32
33
33
33
33
35
36
37
40
41
41
41
43
43
43
43
43
43
43
43
43
44
45
46
46
49
49
49
49
49
49
49
49
49
50
50
51
51
51
51
52
53
53
55
56
56
56
56
58
58
59
61
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-212037 | 4-212037 | Electrical installation | |
| 1 | 4-S20285_B | Instrument panel | |
| 2 | 4-211871 | Cable harness | |
| 3 | 4-211869 | Cable harness | |
| 4 | 4-211872 | Cable harness | |
| 6 | 4-20172 | Holder | |
| 7 | 4-5435060053 | Battery | |
| 8 | 4-5435060046 | Clamp | |
| 9 | 4-5435060047 | Clamp | |
| 10 | 4-5503580088 | Hours-run meter | |
| 11 | 4-5358170100 | Fuse | |
| 12 | 4-5358170101 | Bushing | |
| 13 | 4-5358170091 | Isolator | |
| 14 | 1281104 | Cover | |
| 17 | 4-5358010411 | Socket | |
| 18 | 4-5358170063 | Signal horn | |
| 19 | 4-5358170062 | Spotlight | |
| 20 | 4-5358170097 | Lamp | |
| 21 | 4-5358170096 | Lamp | |
| 22 | 4-5358220010 | Terminal block | |
| 23 | 4-5433050025 | Incandescent lamp | |
| 24 | 4-5433060014 | Incandescent lamp | |
| 25 | 4-5433050013 | Incandescent lamp | |
| 26 | 4-5433050012 | Incandescent lamp | |
| 31 | 4-3113104014 | Socket head cap screw | |
| 32 | 4-3113104016 | Socket head cap screw | |
| 33 | 4-3113104030 | Socket head cap screw | |
| 35 | 4-3113105055 | Socket head cap screw | |
| 36 | 4-3002506020 | Hexagon head screw | |
| 37 | 4-3002508020 | Hexagon head screw | |
| 40 | 4-3048500050 | Hexagon nut | |
| 41 | 4-3048500060 | Hexagon nut | |
| 43 | 4-3149200040 | Nut | |
| 44 | 4-3149200050 | Nut | |
| 45 | 4-3149200080 | ГАЙКА | |
| 46 | 4-3149200100 | Nut | |
| 49 | 4-3170200043 | ШАЙБА | |
| 50 | 4-3170200053 | Washer | |
| 51 | 4-3170200064 | ШАЙБА | |
| 52 | 4-3170200084 | ШАЙБА | |
| 53 | 4-3170200105 | Washer | |
| 55 | 4-3174000051 | Lock washer | |
| 56 | 4-3174000061 | Lock washer | |
| 58 | 4-6531013317 | Symbol | |
| 59 | 4-04152A | Pipe | |
| 61 | 4-5422240001 | Insulating tape | |
| 66 | 4-5358010407 | Ignition lock | |
| 67 | 4-5358010402 | Flap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
