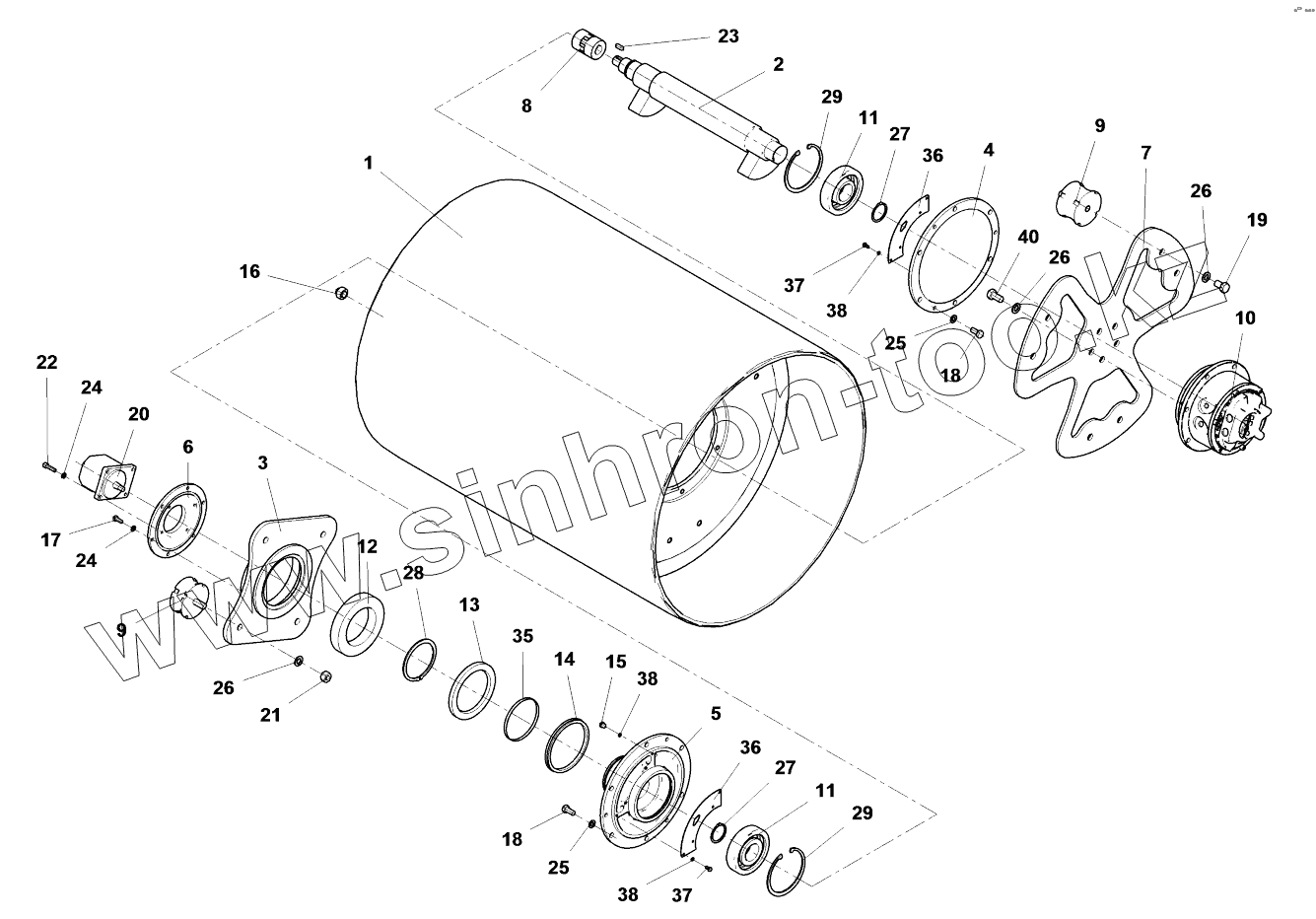

Каталог запасных частей к технике: Ammann ARP 35. Drum
1
2
3
4
5
6
7
8
9
9
10
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
24
25
25
26
26
26
27
27
28
29
29
35
36
36
37
37
38
38
38
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-16171 | 4-16171 | Drum | |
| 1 | 4-12177 | Drum | |
| 2 | 4-12259 | Shaft | |
| 3 | 4-01568A | Plate | |
| 4 | 4-01335A | Cover | |
| 5 | 4-01336A | Cover | |
| 6 | 4-01750A | Cover | |
| 7 | 4-01572A | Driver | |
| 8 | 4-9512000335 | Clutch | |
| 9 | 4-9200000071 | Rubber mount | |
| 10 | 1205999 | Fluid motor | |
| 11 | 4-5462040310 | Bearing | |
| 12 | 4-5462010061 | Bearing | |
| 13 | 4-6160070346 | Gasket | |
| 14 | 4-6160142078 | Ring | |
| 15 | 4-5160670064 | Sealing plug | |
| 16 | 4-5358570028 | Plug | |
| 17 | 4-3002508020 | Hexagon head screw | |
| 18 | 4-3002512025 | Hexagon head screw | |
| 19 | 4-3002516025 | Hexagon head screw | |
| 20 | 4-9540000096 | Fluid motor | |
| 21 | 4-3048500160 | Hexagon nut | |
| 22 | 4-3114308030 | Socket head cap screw | |
| 23 | 4-3256208025 | Feather key | |
| 24 | 4-3900017080 | Spring washer | |
| 25 | 4-3900017120 | Spring washer | |
| 26 | 4-3900017160 | Spring washer | |
| 27 | 4-5535010050 | Circlip | |
| 28 | 4-5535010103 | Circlip | |
| 29 | 4-5535010325 | Circlip | |
| 35 | 1178475 | Bushing | |
| 36 | 4-02101A | Cap | |
| 37 | 4-3002506012 | Hexagon head screw | |
| 38 | 4-3174000061 | Lock washer | |
| 40 | 4-3002516030 | Hexagon head screw |
