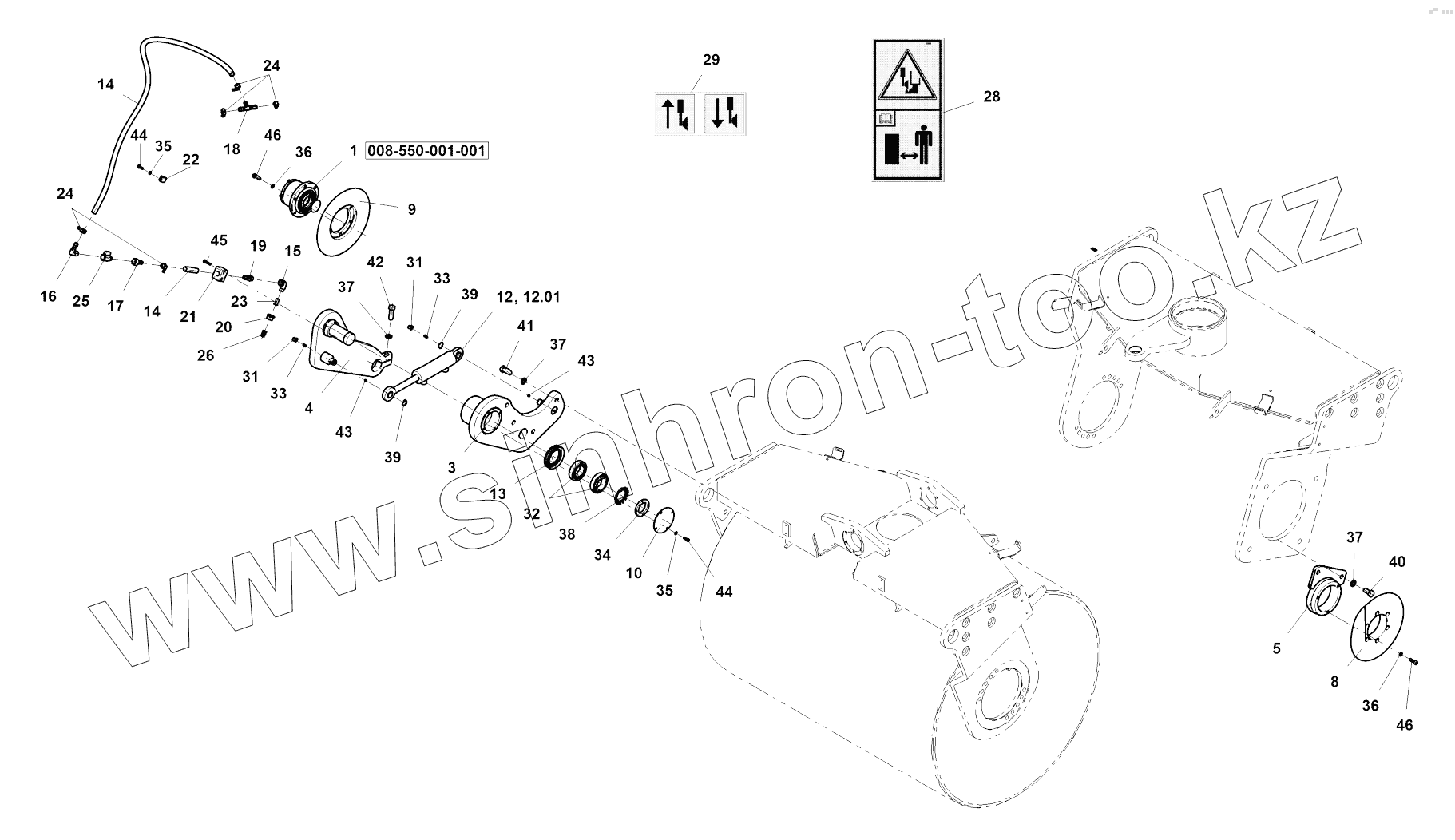

Каталог запасных частей к технике: Ammann ARP 35. Cutter - mechanical equipment
37
37
37
25
26
28
29
31
31
32
33
33
34
35
35
36
36
24
24
38
39
39
40
41
42
43
43
44
44
45
46
46
14
14
1
3
4
5
8
9
10
12
13
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 37 | 4-3900017140 | Spring washer | |
| 25 | 4-9540000015 | Cone | |
| 26 | 4-6150090037 | Nozzle | |
| 28 | 4-6531013352 | Symbol | |
| 29 | 4-6531013318 | Symbol | |
| 31 | 4-5358030042 | Plug | |
| 32 | 4-5462070199 | Bearing | |
| 33 | 4-5536210002 | Greasing nipple | |
| 34 | 4-5462110013 | Nut | |
| 35 | 4-3900017060 | Spring washer | |
| 36 | 4-3900017080 | Spring washer | |
| 24 | 4-5531020002 | Hose clamp | |
| 38 | 4-5462110127 | Plate | |
| 39 | 4-5535010020 | Circlip | |
| 40 | 4-3002514030 | Hexagon head screw | |
| 41 | 4-3002514035 | Hexagon head screw | |
| 42 | 4-3002514045 | Hexagon head screw | |
| 43 | 4-3118106006 | Adjusting screw | |
| 44 | 4-3114306016 | Socket head cap screw | |
| 45 | 4-3114306025 | Socket head cap screw | |
| 46 | 4-3114308025 | Socket head cap screw | |
| 14 | 1241684 | Hose | |
| 1 | 4-S19891 | Hub | |
| 3 | 4-19851 | Bracket | |
| 4 | 4-19883 | Arm | |
| 5 | 4-20001 | Holder | |
| 8 | 4-19999 | Roller | |
| 9 | 4-19998 | Washer | |
| 10 | 4-19993 | Cap | |
| 12 | 4-5451180179 | Hydraulic cylinder | |
| 12.01 | 1215430 | Sealing kit | |
| 13 | 1249074 | Seal | |
| 4-19849 | 4-19849 | Edge cutter | |
| 15 | 1248706 | Manifold | |
| 16 | 4-5531020052 | Connector | |
| 17 | 1248895 | Connector | |
| 18 | 4-5531020054 | Connector | |
| 19 | 4-5531020055 | Connector | |
| 20 | 4-6150090023 | Nut | |
| 21 | 4-5358050044 | Sleeve | |
| 22 | 4-5325030034 | Clamping device | |
| 23 | 4-6150090032 | Valve |
