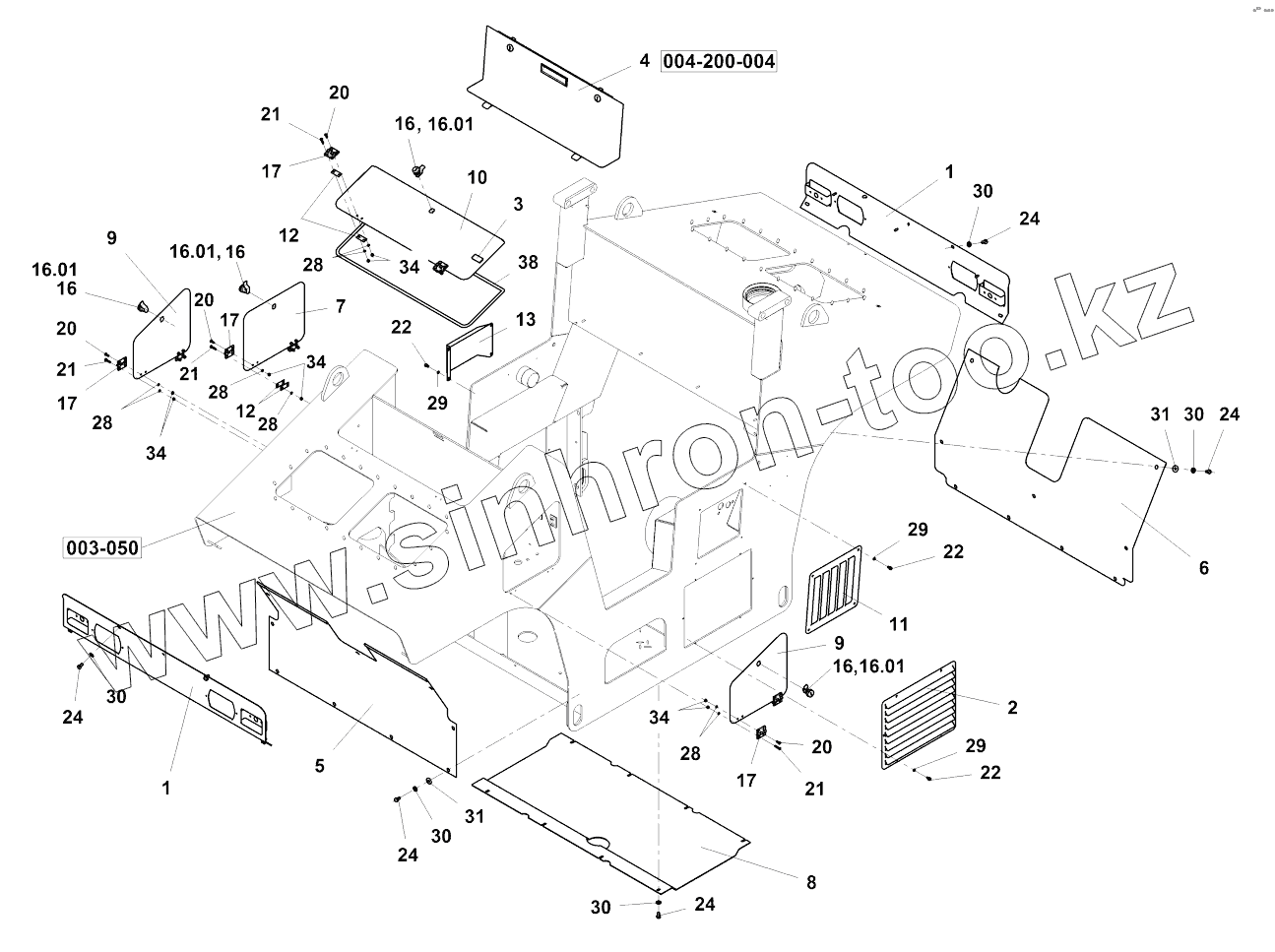

Каталог запасных частей к технике: Ammann ARP 35. Cover hood
13
38
34
34
34
34
31
31
30
30
30
30
30
29
29
29
28
28
28
28
28
24
24
24
24
24
22
22
22
21
21
21
21
20
20
20
20
17
17
17
17
16
16
16
16
12
12
11
10
9
9
8
7
6
5
4
3
2
1
1
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 13 | 4-17610 | Cover | |
| 38 | 4-6120070106 | Adhesive tape | |
| 34 | 4-3048500050 | Hexagon nut | |
| 31 | 4-3172600084 | Washer | |
| 30 | 4-3679600080 | Strain washer | |
| 29 | 4-3174000061 | Lock washer | |
| 28 | 4-3174000051 | Lock washer | |
| 24 | 4-3002508016 | Hexagon head screw | |
| 22 | 4-3114306010 | Socket head cap screw | |
| 21 | 1220092 | Countersunk screw | |
| 20 | 4-3115505016 | Oval head countersunk screw | |
| 17 | 4-5358010501 | Hinge | |
| 16.01 | 4-9500001014 | Key | |
| 16 | 4-9500001015 | Tongue lock | |
| 4-13102 | 4-13102 | Covering hood | |
| 12 | 4-09126A | Washer | |
| 11 | 4-13619 | Cover | |
| 10 | 4-13112 | Cover | |
| 9 | 4-13111 | Cover | |
| 8 | 4-13113 | Cover | |
| 7 | 4-20174 | Cover | |
| 6 | 4-17604 | Cover | |
| 5 | 4-17603 | Front cover | |
| 4 | 4-S13229 | Front cover | |
| 3 | 4-6150020029 | Gasket | |
| 2 | 4-17585 | Cover | |
| 1 | 4-13104 | Plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
