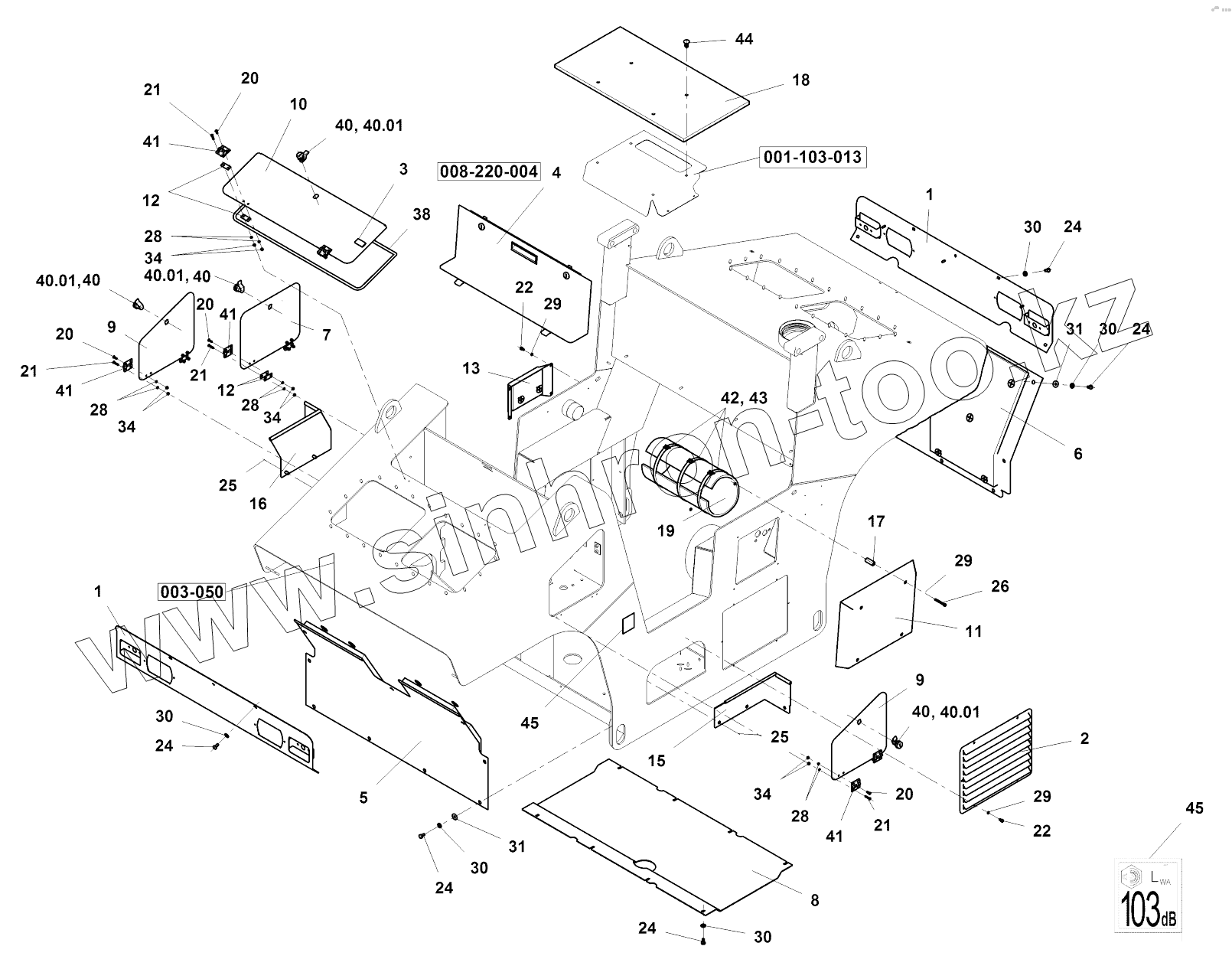

Каталог запасных частей к технике: Ammann ARP 35. Bonnet soundproofing
34
34
34
34
21
21
21
21
22
22
24
24
24
24
24
25
25
26
28
28
28
28
29
29
29
30
30
30
30
30
31
31
20
20
20
20
38
40
40
40
40
41
41
41
41
42
43
44
45
45
10
1
1
2
3
4
5
6
7
8
9
9
11
12
12
13
15
16
17
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 34 | 4-3048500050 | Hexagon nut | |
| 21 | 1220092 | Countersunk screw | |
| 22 | 4-3114306010 | Socket head cap screw | |
| 24 | 4-3002508016 | Hexagon head screw | |
| 25 | 4-3714106016 | Screw | |
| 26 | 4-3114306050 | Socket head cap screw | |
| 28 | 4-3174000051 | Lock washer | |
| 29 | 4-3174000061 | Lock washer | |
| 30 | 4-3679600080 | Strain washer | |
| 31 | 4-3172600084 | Washer | |
| 20 | 4-3115505016 | Oval head countersunk screw | |
| 38 | 4-6120070106 | Adhesive tape | |
| 40 | 4-9500001015 | Tongue lock | |
| 40.01 | 4-9500001014 | Key | |
| 41 | 4-5358010501 | Hinge | |
| 42 | 1220090 | Clip | |
| 43 | 4-5531030035 | Band | |
| 44 | 4-5358570069 | Clip | |
| 45 | 4-6531013045 | Symbol | |
| 10 | 4-13112 | Cover | |
| 1 | 4-13104 | Plate | |
| 2 | 4-17585 | Cover | |
| 3 | 4-6150020029 | Gasket | |
| 4 | 4-S17617_A | Cover | |
| 5 | 4-18525 | Cover | |
| 6 | 4-18526 | Cover | |
| 7 | 4-20174 | Cover | |
| 8 | 4-13113 | Cover | |
| 9 | 4-13111 | Cover | |
| 4-17501 | 4-17501 | Covering hood | |
| 11 | 4-18528 | Cover | |
| 12 | 4-09126A | Washer | |
| 13 | 4-18529 | Cover | |
| 15 | 4-17347 | Cover | |
| 16 | 4-17355 | Cover | |
| 17 | 4-17796 | Spacer element | |
| 18 | 4-17627 | Insulation | |
| 19 | 4-17647 | Insulation |
