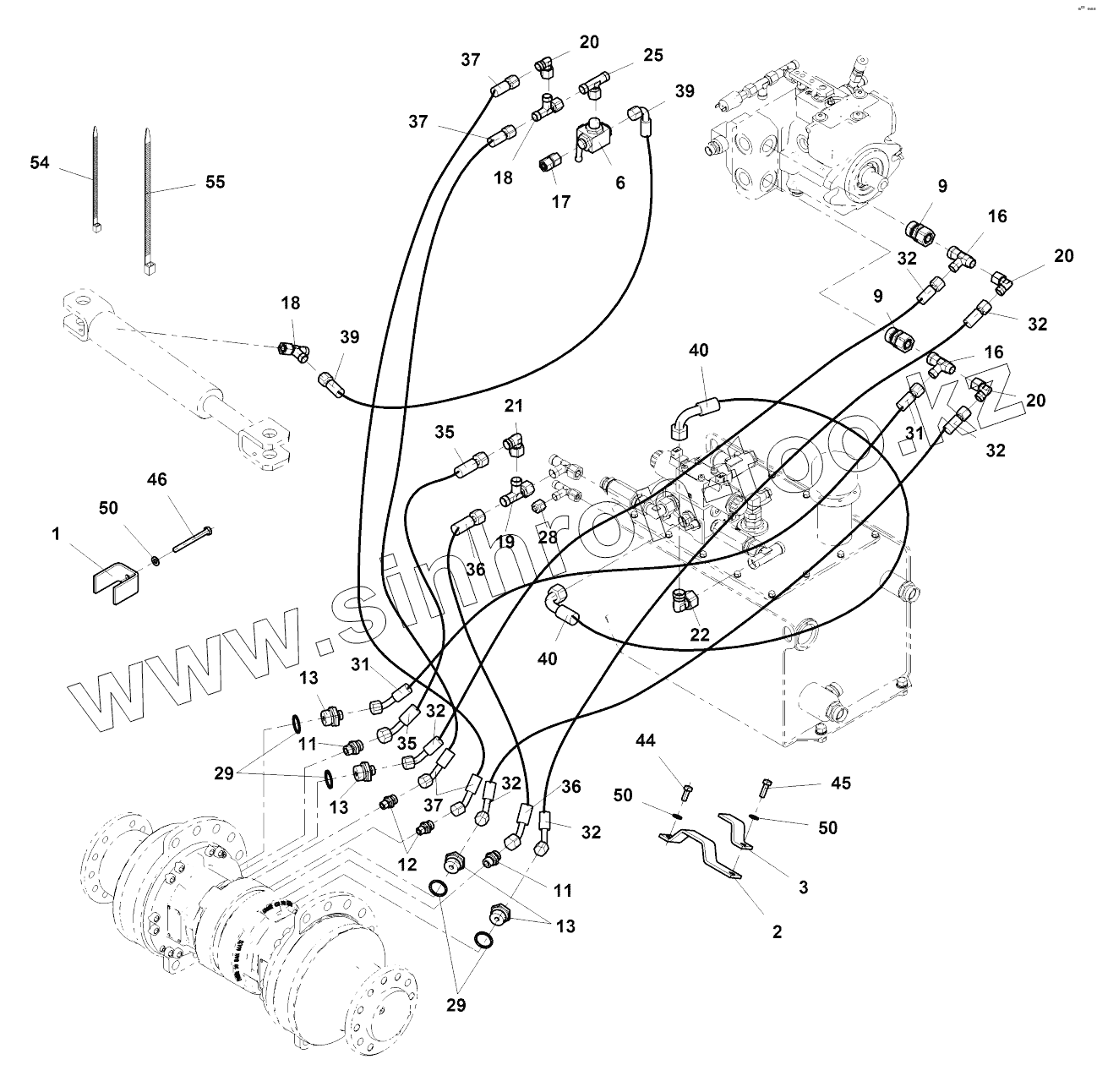

Каталог запасных частей к технике: Ammann ARP 35. Axle hydraulics
1
2
3
6
9
9
11
11
12
13
13
13
16
16
17
18
18
19
20
20
20
21
22
25
28
29
29
31
31
32
32
32
32
32
32
35
35
36
36
37
37
37
39
39
40
40
44
45
46
50
50
50
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-20047 | 4-20047 | Axle hydraulics | |
| 1 | 4-20142 | Clip | |
| 2 | 4-20143 | Holder | |
| 3 | 4-13812 | Holder | |
| 6 | 4-5160680061 | Ball cock | |
| 9 | 4-5160650158 | Connector | |
| 11 | 4-5160650063 | Screwed connection | |
| 12 | 4-5160650058 | Screwed connection | |
| 13 | 4-436856 | Connector | |
| 16 | 4-5160660118 | T-socket | |
| 17 | 4-5160660102 | Swivel union | |
| 18 | 4-5160670075 | L-connection | |
| 19 | 4-5160670065 | L-connection | |
| 20 | 4-5160670087 | Screwed connection | |
| 21 | 4-5160670028 | Screwed connection | |
| 22 | 4-5160670029 | Screwed connection | |
| 25 | 4-5160670055 | T-connection | |
| 28 | 4-5160670104 | Sealing plug | |
| 29 | 4-6090010420 | Sealing ring | |
| 31 | 4-5160573067 | Hydr hose | |
| 32 | 4-5160573068 | Hydr hose | |
| 35 | 4-5160573069 | Hydr hose | |
| 36 | 4-5160573070 | Hydr hose | |
| 37 | 4-5160573071 | Hydr hose | |
| 39 | 4-5160573072 | Hydr hose | |
| 40 | 4-5160573073 | Hydr hose | |
| 44 | 4-3002508020 | Hexagon head screw | |
| 45 | 4-3002508025 | Hexagon head screw | |
| 46 | 4-3001508080 | Hexagon head screw | |
| 50 | 4-3170200084 | ШАЙБА | |
| 54 | 4-6150051017 | Staple strip | |
| 55 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
