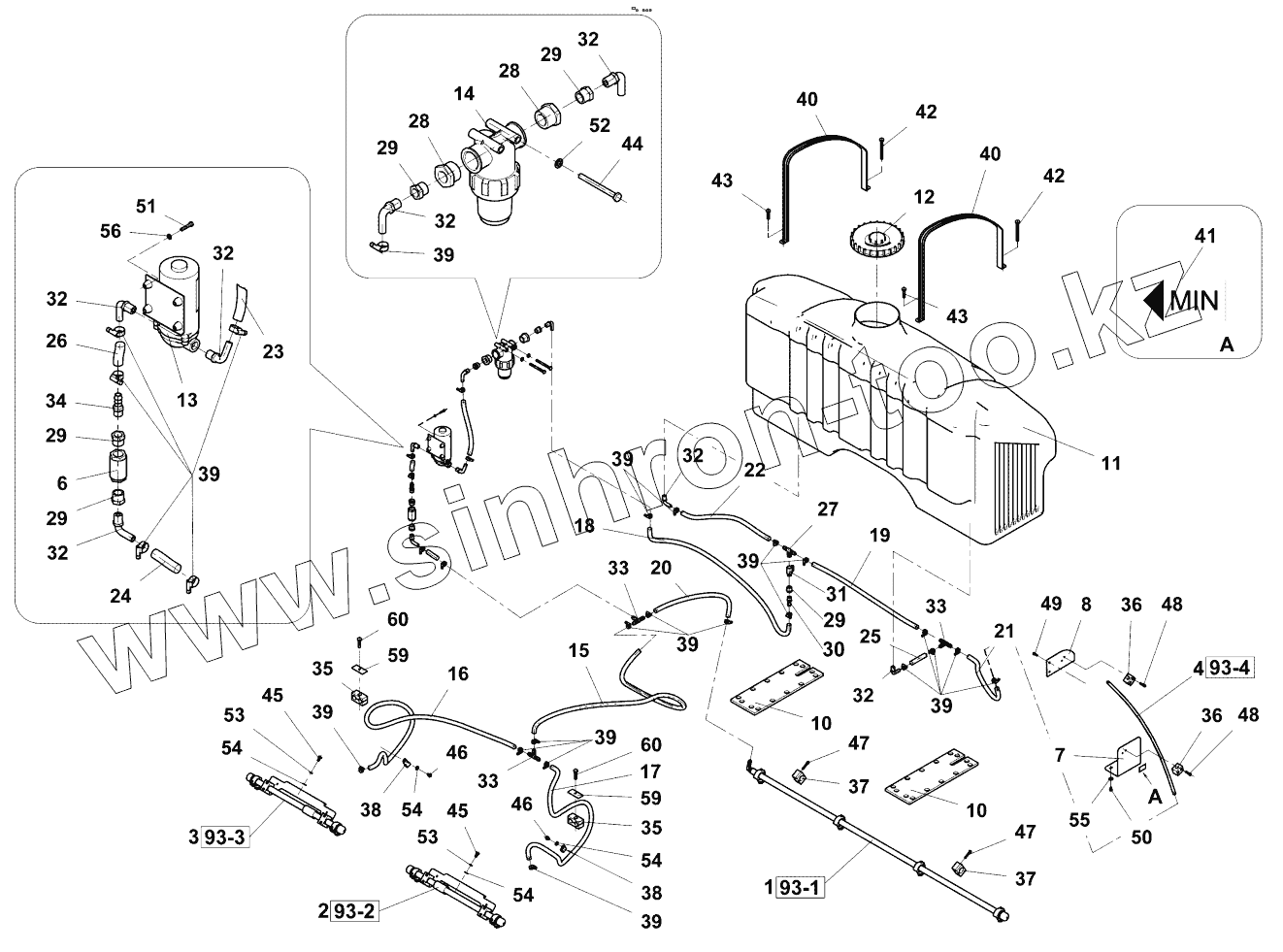

Каталог запасных частей к технике: Ammann AP 240. Sprinkling system
1
2
3
4
6
7
8
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
29
29
29
30
31
32
32
32
32
32
32
32
33
33
33
34
35
35
36
36
37
37
38
38
39
39
39
39
39
39
39
39
39
40
40
41
42
42
43
43
44
45
45
46
46
47
47
48
48
49
50
51
52
53
53
54
54
54
54
55
56
59
59
60
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-12415 | 4-12415 | Spraying | |
| 1 | 4-S12440 | Sprinkling tube | |
| 2 | 4-S12435_A | Sprinkling tube | |
| 3 | 4-S13217 | Sprinkling system | |
| 4 | 4-S13090 | Sprinkling tube | |
| 6 | 4-442317 | Valve | |
| 7 | 4-12839 | Holder | |
| 8 | 4-12416 | Holder | |
| 10 | 4-440059 | Washer | |
| 11 | 4-6150050128 | Water tank | |
| 12 | 4-440948 | Plug | |
| 13 | 1166033 | Water pump | |
| 14 | 4-5358520088 | Water filter | |
| 15 | 4-14320 | Hose | |
| 16 | 4-14310 | Hose | |
| 17 | 4-14313 | Hose | |
| 18 | 4-14315 | Hose | |
| 19 | 4-14311 | Hose | |
| 20 | 4-14317 | Hose | |
| 21 | 4-14312 | Hose | |
| 22 | 4-14321 | Hose | |
| 23 | 4-14318 | Hose | |
| 24 | 4-14314 | Hose | |
| 25 | 4-14316 | Hose | |
| 26 | 4-14319 | Hose | |
| 27 | 4-5531020100 | Connector | |
| 28 | 4-5325110014 | Reduction | |
| 29 | 4-5325110009 | Reduction | |
| 30 | 1196601 | House coupling | |
| 31 | 4-9540000015 | Cone | |
| 32 | 4-5531020052 | Connector | |
| 33 | 4-5531020054 | Connector | |
| 34 | 4-5531020055 | Connector | |
| 35 | 4-5358050066 | Sleeve | |
| 36 | 4-5358050011 | ЗАЖИМ | |
| 37 | 4-5160580009 | Clip | |
| 38 | 4-5160680043 | Clip | |
| 39 | 4-5531020001 | СКОБА | |
| 40 | 4-5531020084 | Clamping belt | |
| 41 | 4-6531012696 | Symbol | |
| 42 | 4-3002510100 | Hexagon head screw | |
| 43 | 4-3002510040 | Hexagon head screw | |
| 44 | 4-3001508085 | Hexagon head screw | |
| 45 | 4-3002508016 | Hexagon head screw | |
| 46 | 4-3002508010 | Hexagon head screw | |
| 47 | 4-3114306030 | Socket head cap screw | |
| 48 | 4-3114306025 | Socket head cap screw | |
| 49 | 4-3115106010 | Countersunk screw | |
| 50 | 4-3002506012 | Hexagon head screw | |
| 51 | 4-3113105025 | БОЛТ | |
| 52 | 4-3170600080 | Washer | |
| 53 | 4-3174000082 | Lock washer | |
| 54 | 4-3170200084 | ШАЙБА | |
| 55 | 4-3172900066 | Washer | |
| 56 | 4-3170200053 | Washer | |
| 59 | 4-5358050047 | Cap | |
| 60 | 4-3001508050 | Hexagon head screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
