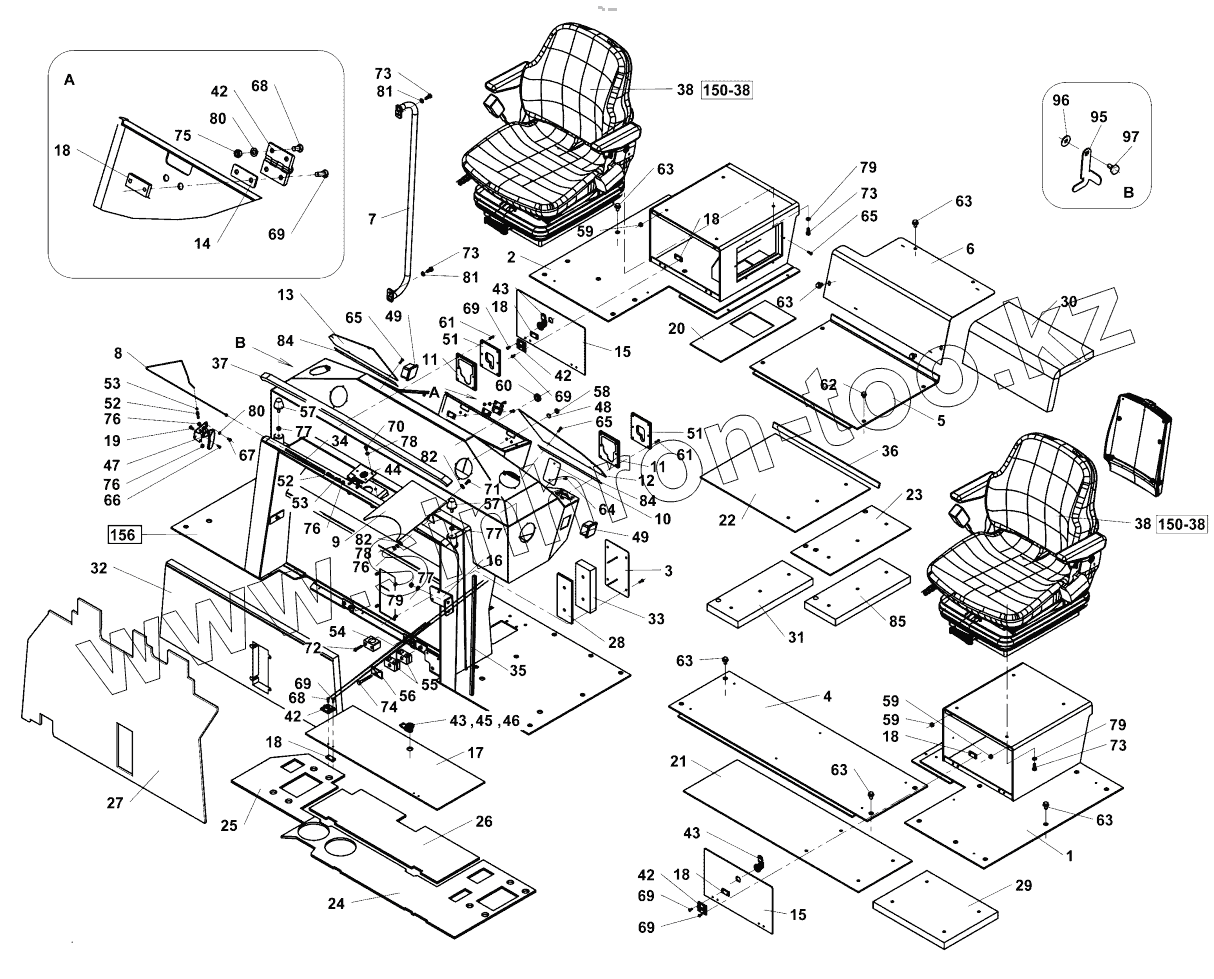

Каталог запасных частей к технике: Ammann AP 240. Operator platform
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
17
18
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
42
42
42
42
43
43
43
44
45
46
47
48
49
49
51
51
52
52
53
53
54
55
56
57
57
58
59
59
59
60
61
61
62
63
63
63
63
63
63
64
65
65
65
66
67
68
68
69
69
69
69
69
69
70
71
72
73
73
73
73
74
75
76
76
76
76
77
77
77
78
78
79
79
79
80
80
81
81
82
82
84
84
85
95
96
97
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-09140A | 4-09140A | Platform | |
| 1 | 4-09179A | Cover | |
| 2 | 4-09180A | Cover | |
| 3 | 4-09321A | Cover | |
| 4 | 4-09323A | Cover | |
| 5 | 4-09333A | Cover | |
| 6 | 4-09336A | Cover | |
| 7 | 4-00539A | ДЕРЖАТЕЛЬ | |
| 8 | 4-438567 | ТРОС | |
| 9 | 4-438871 | КОЖУХ | |
| 10 | 4-438865 | ФЛАНЕЦ | |
| 11 | 4-437501 | РАМКА | |
| 12 | 4-09175A | Cover | |
| 13 | 4-09176A | Cover | |
| 14 | 4-09348A | Washer | |
| 15 | 4-09347A | Door | |
| 16 | 4-09212A | Holder | |
| 17 | 4-14080 | Cover | |
| 18 | 4-09127A | Plate | |
| 19 | 4-438764 | КРЕПЛЕНИЕ | |
| 20 | 4-09328A | Insulation | |
| 21 | 4-09331A | Insulation | |
| 22 | 4-09332A | Insulation | |
| 23 | 4-09341A | Insulation | |
| 24 | 4-09325A | Insulation | |
| 25 | 4-09326A | Insulation | |
| 26 | 4-09327A | Insulation | |
| 27 | 4-09343A | Insulation | |
| 28 | 4-09345A | Insulation | |
| 29 | 4-09329A | Insulation | |
| 30 | 4-09339A | Insulation | |
| 31 | 4-09340A | Insulation | |
| 32 | 4-09342A | Insulation | |
| 33 | 4-09344A | Insulation | |
| 34 | 4-5358010104 | Hose | |
| 35 | 4-6150020021 | Rubber profile | |
| 36 | 4-6150020029 | Gasket | |
| 37 | 4-6160081073 | Profile | |
| 38 | 4-S614113 | Complete seat | |
| 42 | 4-5358010501 | Hinge | |
| 43 | 4-5358010503 | ЗАМОК | |
| 44 | 4-13386 | Lock | |
| 45 | 4-5358010502 | КЛЮЧ | |
| 46 | 4-5358010505 | КЛЮЧ ЗАМКА | |
| 47 | 4-5358010018 | Lever | |
| 48 | 4-5358570046 | Plug | |
| 49 | 4-5325110016 | Dummy plug | |
| 51 | 4-437500 | ПРОХОДНОЙ ИЗОЛЯТ | |
| 52 | 4-5358010100 | Clamping element | |
| 53 | 4-5358010103 | НАКОНЕЧНИК | |
| 54 | 4-5358050048 | ЗАЖИМ | |
| 55 | 4-5358050027 | Sleeve | |
| 56 | 4-5358050032 | Cap | |
| 57 | 4-6160070617 | Rubber mount | |
| 58 | 4-6160100158 | Leadthrough | |
| 59 | 4-6160100166 | ПРОХОДНОЙ ИЗОЛЯТ | |
| 60 | 4-6160100162 | Leadthrough | |
| 61 | 4-5535010949 | ЗАКЛЕПКА С УСОМ | |
| 62 | 4-3279708012 | Hexagon head screw | |
| 63 | 4-3279710016 | БОЛТ | |
| 64 | 4-3123204010 | Plate screw | |
| 65 | 4-3738005016 | Oval head screw | |
| 66 | 4-3110304012 | Hexagon head screw | |
| 67 | 4-3002505010 | Hexagon head screw | |
| 68 | 4-3115505012 | Oval head countersunk screw | |
| 69 | 4-3115505016 | Oval head countersunk screw | |
| 70 | 4-3002506012 | Hexagon head screw | |
| 71 | 4-3002506016 | Hexagon head screw | |
| 72 | 4-3114308030 | Socket head cap screw | |
| 73 | 4-3002508020 | Hexagon head screw | |
| 74 | 4-3001508060 | Hexagon head screw | |
| 75 | 4-3048500050 | Hexagon nut | |
| 76 | 4-3048500060 | Hexagon nut | |
| 77 | 4-3048500080 | Hexagon nut | |
| 78 | 4-3900017060 | Spring washer | |
| 79 | 4-3900017080 | Spring washer | |
| 80 | 4-3170200053 | Washer | |
| 81 | 4-3170200084 | ШАЙБА | |
| 82 | 4-3172900066 | Washer | |
| 84 | 4-6120070106 | Adhesive tape | |
| 85 | 4-14111 | Insulation | |
| 95 | 4-14107 | Securing plate | |
| 96 | 4-14951 | Washer | |
| 97 | 4-14108 | Locking screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
