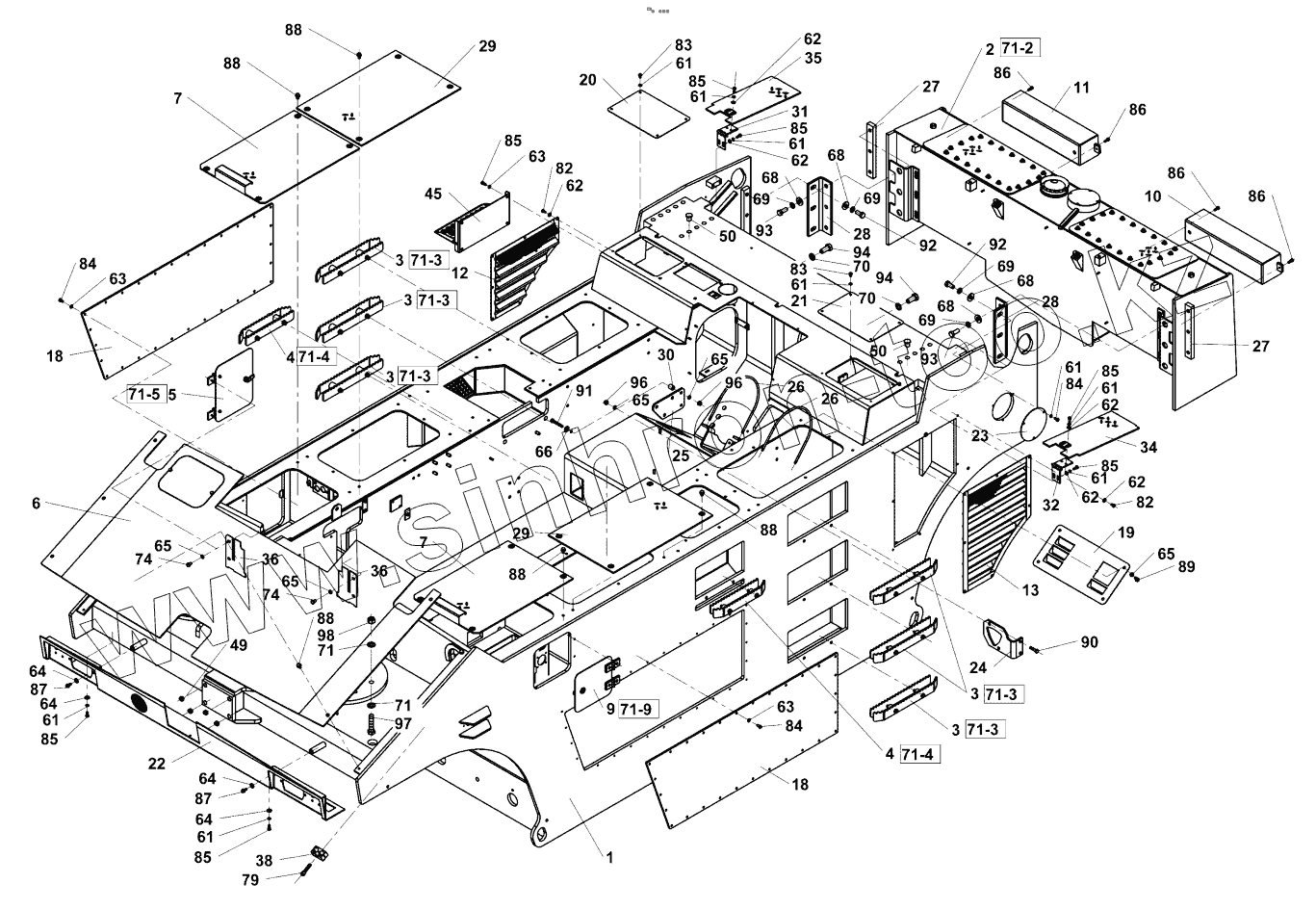

Каталог запасных частей к технике: Ammann AP 240. Frame
1
2
3
3
3
3
3
4
4
5
6
7
7
9
10
11
12
13
18
18
19
20
21
22
23
24
25
26
26
27
27
28
28
29
29
30
31
32
34
35
36
36
38
45
49
50
50
61
61
61
61
61
61
61
61
61
62
62
62
62
62
62
63
63
63
64
64
64
64
65
65
65
65
65
66
68
68
68
68
69
69
69
69
70
70
71
71
74
74
79
82
82
83
83
84
84
84
85
85
85
85
85
85
85
86
86
86
86
87
87
88
88
88
88
88
89
90
91
92
92
93
93
94
94
96
96
97
98
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-10463A | 4-10463A | Frame | |
| 1 | 4-10464A | Frame | |
| 2 | 4-S09815A | Fuel tank | |
| 3 | 4-S09057A | Tread | |
| 4 | 4-S09058A | Tread | |
| 5 | 4-S09059A | Door | |
| 6 | 4-09055A | Front cover | |
| 7 | 4-09562A | Cover | |
| 9 | 4-S10378A | Door | |
| 10 | 4-00232A | ЛЕВ.КРОНШТ.ФОНАРЬЯ | |
| 11 | 4-00231A | ПР.КРОНШТ.ФОНАРЬЯ | |
| 12 | 4-09799A | Grille | |
| 13 | 4-09800A | Grille | |
| 18 | 4-01934A | КОЖУХ | |
| 19 | 4-01049A | Cap | |
| 20 | 4-00398A | КРЫШКА | |
| 21 | 4-00175A | КРЫШКА | |
| 22 | 4-09060A | Bracket | |
| 23 | 4-10442A | Cap | |
| 24 | 4-01045A | ДЕРЖАВКА | |
| 25 | 4-04186A | ДЕРЖАВКА | |
| 26 | 4-00437A | ХОМУТ ВОЗД.РЕСЕРВУАР | |
| 27 | 4-09569A | Flat | |
| 28 | 4-09568A | Angle | |
| 29 | 4-10481A | Plate | |
| 30 | 4-04187A | ТРУБКА | |
| 31 | 4-01088A | Hinge | |
| 32 | 4-01089A | Hinge | |
| 34 | 4-10427A | Cap | |
| 35 | 4-10435A | Cap | |
| 36 | 4-10975A | Plate | |
| 38 | 4-5358050048 | ЗАЖИМ | |
| 45 | 4-9500000299 | СТУПЕНЬ | |
| 49 | 4-5358570022 | Plug | |
| 50 | 4-5358570023 | Plug | |
| 61 | 4-3900017080 | Spring washer | |
| 62 | 4-3679600080 | Strain washer | |
| 63 | 4-3170200084 | ШАЙБА | |
| 64 | 4-3172900090 | Washer | |
| 65 | 4-3900017100 | Spring washer | |
| 66 | 4-3170600100 | Washer | |
| 68 | 4-3679600170 | Strain washer | |
| 69 | 4-3900017160 | Spring washer | |
| 70 | 4-3900017200 | Spring washer | |
| 71 | 4-3170600210 | Washer | |
| 74 | 4-3002510016 | Hexagon head screw | |
| 79 | 4-3114308030 | Socket head cap screw | |
| 82 | 4-3002508014 | Hexagon head screw | |
| 83 | 4-3002508012 | Hexagon head screw | |
| 84 | 4-3002508016 | Hexagon head screw | |
| 85 | 4-3002508020 | Hexagon head screw | |
| 86 | 4-3114308020 | Socket head cap screw | |
| 87 | 4-3279708020 | БОЛТ | |
| 88 | 4-3279710016 | БОЛТ | |
| 89 | 4-3002510020 | Hexagon head screw | |
| 90 | 4-3001510040 | БОЛТ | |
| 91 | 4-3001510065 | Hexagon head screw | |
| 92 | 4-3002516035 | Hexagon head screw | |
| 93 | 4-3002516040 | Hexagon head screw | |
| 94 | 4-3002520545 | Hexagon head screw | |
| 96 | 4-3149200100 | Nut | |
| 97 | 4-3001520100 | Hexagon head screw | |
| 98 | 4-3048500200 | Hexagon nut |
