Каталог запасных частей к технике: Ammann AP 240. Engine
1
2
3
7
7
12
13
14
16
22
23
25
26
27
28
32
33
39
40
40
42
44
46
48
48
49
54
54
54
54
54
54
54
54
55
55
55
55
56
57
60
61
61
62
62
62
62
64
65
66
67
67
67
69
71
71
72
72
73
73
73
73
73
73
76
76
76
76
77
77
78
78
79
79
79
80
80
81
81
81
81
81
84
84
85
87
90
91
94
97
97
97
97
102
104
104
106
106
108
115
115
115
116
117

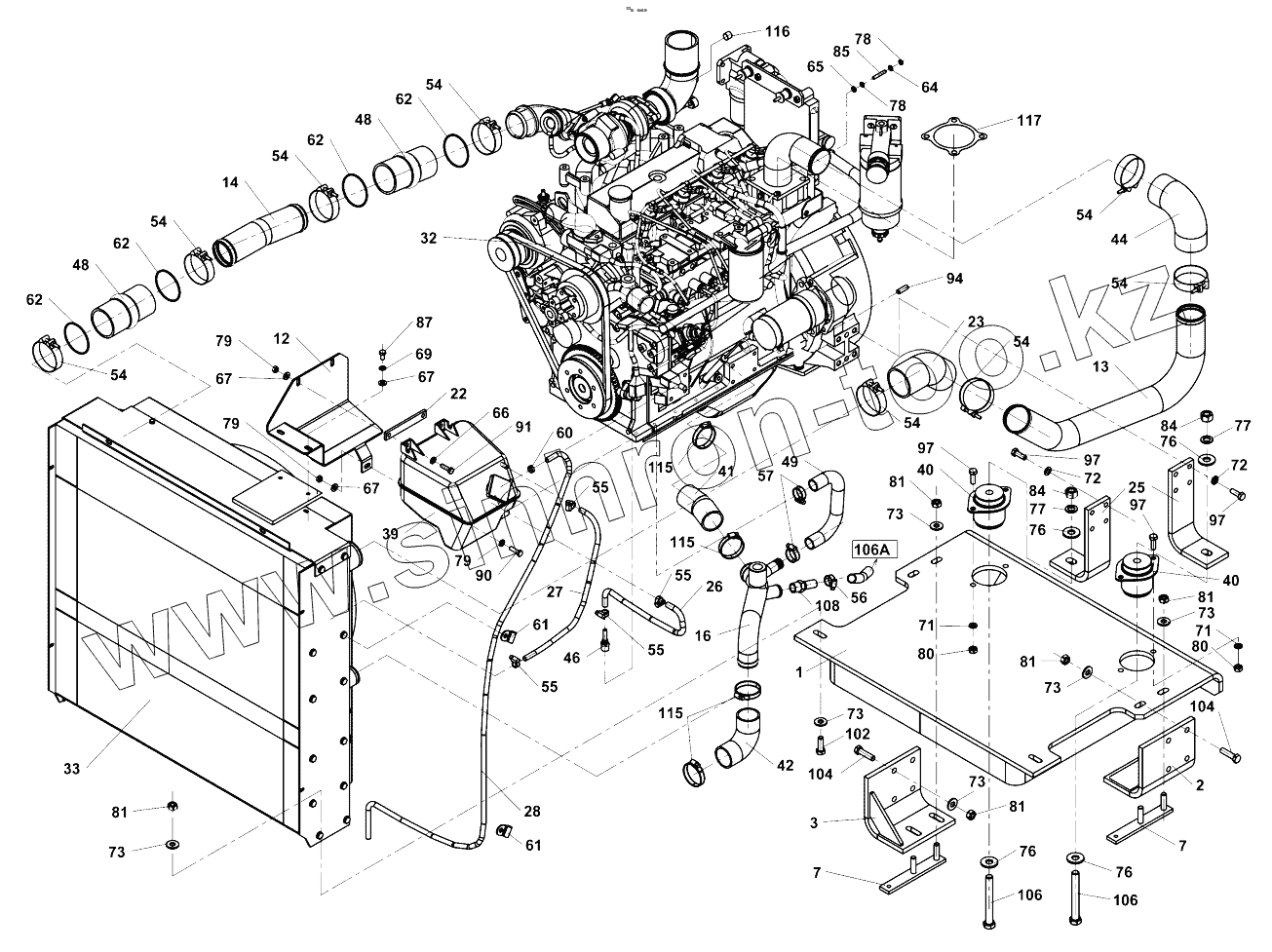

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-09600A | 4-09600A | Engine | |
| 1 | 4-09580A | Motor bracket | |
| 2 | 4-00304A | ДЕРЖАВКА | |
| 3 | 4-00305A | ДЕРЖАВКА | |
| 7 | 4-10557A | Fixture | |
| 12 | 4-09701A | Plate | |
| 13 | 4-09873A | Pipe | |
| 14 | 4-08915A | Pipe | |
| 16 | 4-11767 | Pipe | |
| 22 | 4-09731A | Washer | |
| 23 | 4-10796A | Manifold | |
| 25 | 4-09578A | Motor bracket | |
| 26 | 4-09912A | Hose | |
| 27 | 4-09911A | Hose | |
| 28 | 4-09913A | Hose | |
| 32 | 4-9501000400 | Engine | |
| 33 | 1162467 | Oil-water-air cooler | |
| 39 | 4-9200000305 | Tank | |
| 40 | 4-9200000056 | РЕЗИН.МЕТАЛ.ИЗДЕЛИЕ | |
| 42 | 4-9200000196 | Manifold | |
| 44 | 4-6160084049 | Manifold | |
| 46 | 4-5160572070 | End fitting | |
| 48 | 4-6160084015 | Clutch | |
| 49 | 4-9200000197 | Hose | |
| 54 | 4-5531020029 | Hose clamp | |
| 55 | 4-5531020002 | Hose clamp | |
| 56 | 4-5531020071 | Hose clamp | |
| 57 | 4-5531020074 | Hose clamp | |
| 60 | 4-5531020061 | Clip | |
| 61 | 4-5160572395 | Clip | |
| 62 | 4-9541111102 | Ring | |
| 64 | 4-3900017060 | Spring washer | |
| 65 | 4-3170200064 | ШАЙБА | |
| 66 | 4-3172900090 | Washer | |
| 67 | 4-3679600080 | Strain washer | |
| 69 | 4-3900017080 | Spring washer | |
| 71 | 4-3900017100 | Spring washer | |
| 72 | 4-3170600100 | Washer | |
| 73 | 4-3679600130 | Strain washer | |
| 76 | 4-3679600170 | Strain washer | |
| 77 | 4-3900017160 | Spring washer | |
| 78 | 4-3140300060 | Hexagon nut | |
| 79 | 4-3530021080 | Nut | |
| 80 | 4-3530021100 | Nut | |
| 81 | 4-3530020120 | Nut | |
| 84 | 4-3048500160 | Hexagon nut | |
| 85 | 4-3029506030 | Stud bolt | |
| 87 | 4-3002508016 | Hexagon head screw | |
| 90 | 4-3001508028 | Hexagon head screw | |
| 91 | 4-3002508030 | Hexagon head screw | |
| 94 | 4-3029010020 | Stud bolt | |
| 97 | 4-3002510030 | Hexagon head screw | |
| 102 | 4-3002512035 | Hexagon head screw | |
| 104 | 4-3001512045 | Hexagon head screw | |
| 106 | 4-3001516130 | Hexagon head screw | |
| 108 | 4-5160571462 | End fitting | |
| 115 | 4-5531020070 | Hose clamp | |
| 116 | 4-5160572028 | Plug | |
| 117 | 4-9501000305F | Seal |
