Каталог запасных частей к технике: Vaderstad RAPID RD 500F, 600F, 800F. Frame RD 500-800F

Тип техники

Марка

Модель

Схема

1

2

2

3

3

4

4

5

5

6

6

6

7

8

9

9

9

9

10

11

11

12

13

14

15

16

17

18

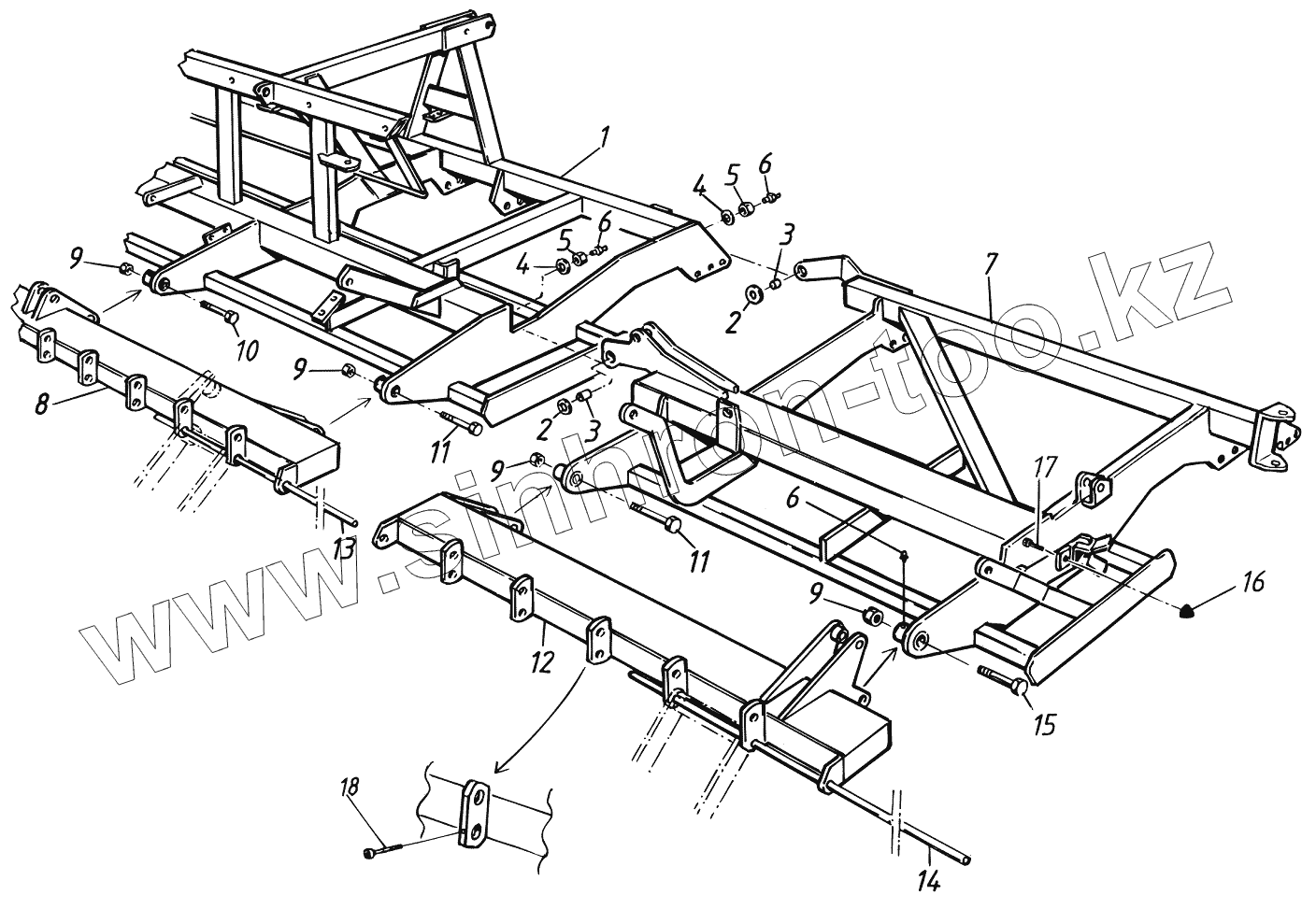

Позиция на иллюстрации	Заводской номер детали		Название детали
307311	307311		Wheel beam, wing section
202332	202332		Wing section
202507	202507		Wing section
424751	424751		Wing section
202333	202333		Wing section
202508	202508		Wing section
424752	424752		Wing section
307722	307722		Wheel beam
307310	307310		Wheel beam, wing section
202532	202532		Frame
307312	307312		Wheel beam, wing section
307313	307313		Wheel beam, wing section
307314	307314		Wheel beam, wing section
419785	419785		Axle, wheel beam
414211	414211		Axle, wheel beam, wing section
414212	414212		Axle, wheel beam, wing section
50002412021	50002412021		Screw
50011004021	50011004021		Screw
202506	202506		Wing section
202530	202530		Wing section
424747	424747		Wing section
202329	202329		Wing section
202531	202531		Wing section
424748	424748		Wing section
202330	202330		Wing section
202505	202505		Wing section
424749	424749		Wing section
202331	202331		Wing section
424750	424750		Wing section
1	202334		Frame
2	415372		Washer with radius
3	407613		Bearing
4	52003000041		Washer
5	51013000021		Lock nut
6	407661		Lubricating nipple
7	202328		Wing section
8	307304		Wheel beam
9	51012400021		Lock nut
10	415181		Screw
11	50002412021		Screw
12	307309		Wheel beam, wing section
13	414210		Axle, wheel beam, centre
14	415772		Axle, wheel beam, wing section
15	50002407021		Screw
16	418685		Rubber damper
17	50001002021		Screw
18	419087		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
