Каталог запасных частей к технике: Vaderstad Carrier CR420-820. Hydraulics, Crossboard/Agrilla CR 420-820
1
2
2
3
3
4
4
4
5
5
5
6
6
6
7
7
8
9
10
11
12
12
13
14
15
16
16
16
16
17
18
19
20
21
21
21
22
22
22
23
23
24
25
26

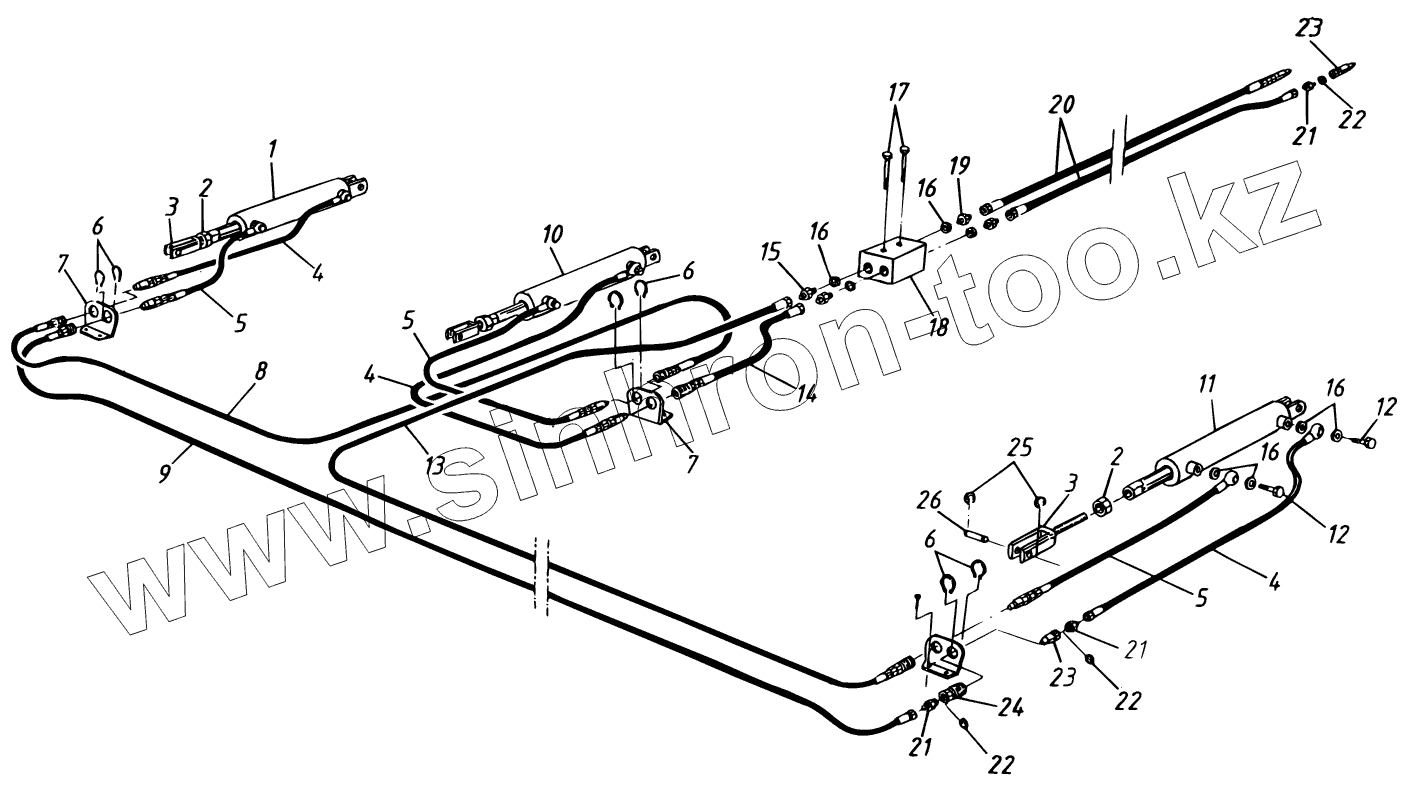

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 422740 | Sealing set | |
| 1 | 422235 | Hydraulic ram | |
| 1 | 409675 | Piston rod guide | |
| 1 | 422752 | Ram tube | |
| 1 | 422753 | Piston rod | |
| 2 | 51032000021 | Nut | |
| 3 | 421292 | Fork link | |
| 4 | 440835 | Hydraulic hose | |
| 5 | 440836 | Hydraulic hose | |
| 6 | 54003800094 | Circlip | |
| 7 | 412807 | Bracket | |
| 8 | 427084 | Hydraulic hose | |
| 9 | 427082 | Hydraulic hose | |
| 10 | 422236 | Hydraulic ram | |
| 10 | 422741 | Sealing set | |
| 10 | 422754 | Ram tube | |
| 10 | 422755 | Piston rod | |
| 10 | 418144 | Piston rod guide | |
| 11 | 409676 | Piston rod guide | |
| 11 | 422751 | Piston rod | |
| 11 | 422750 | Ram tube | |
| 11 | 422234 | Hydraulic ram | |
| 11 | 422739 | Sealing set | |
| 12 | 406751 | Hole screw, banjo | |
| 13 | 427085 | Hydraulic hose | |
| 14 | 427083 | Hydraulic hose | |
| 15 | 401789 | Nipple | |
| 16 | 402202 | Rubber steel washer | |
| 17 | 50000606021 | Screw | |
| 18 | 413076 | Check valve, pilot-controlled | |
| 18 | 412883 | Sealing set | |
| 18 | 410378 | Hydraulic block | |
| 19 | 401790 | Nipple | |
| 20 | 422165 | Hydraulic hose | |
| 21 | 401782 | Nipple | |
| 22 | 401774 | Rubber steel washer | |
| 23 | 401776 | Quick coupling | |
| 24 | 402005 | Quick coupling, Euroquipp | |
| 25 | 54021500091 | Circlip | |
| 26 | 411260 | Axle |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
