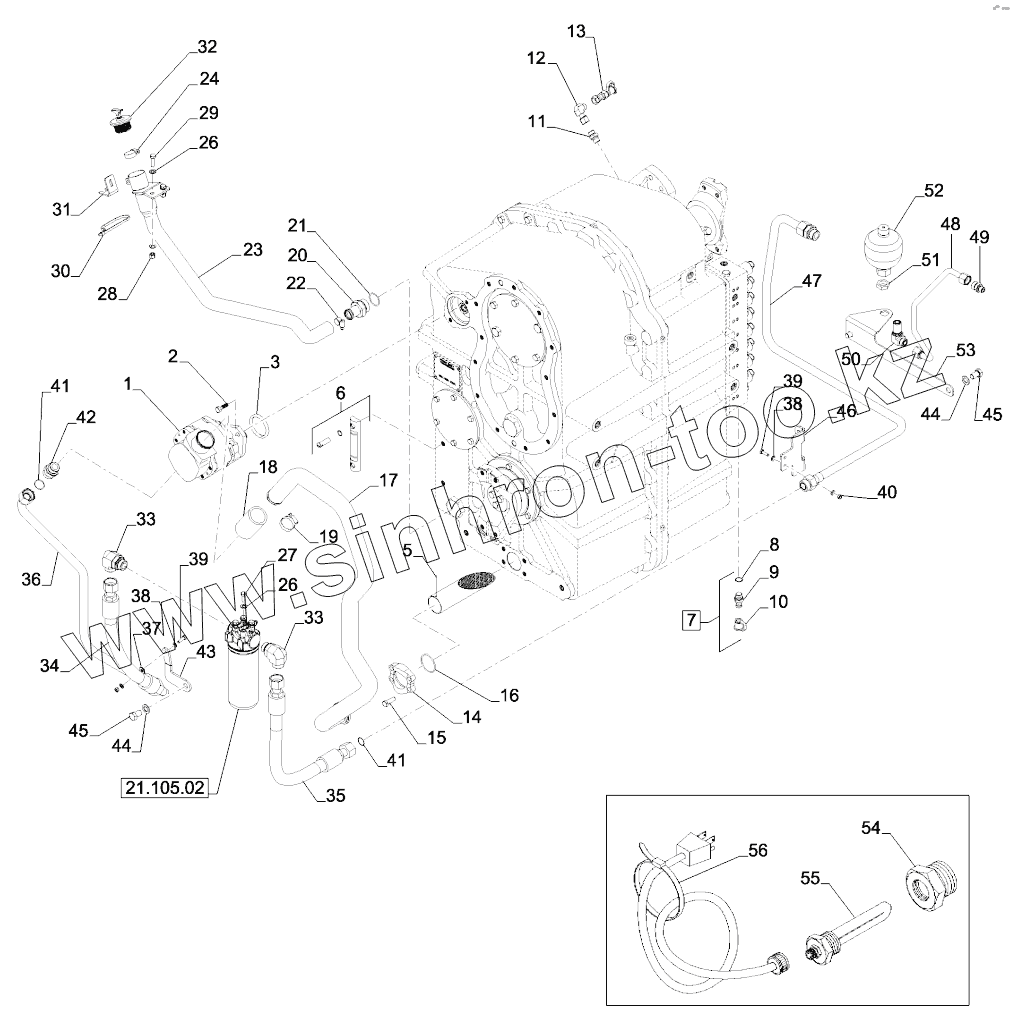

Каталог запасных частей к технике: New Holland T9.615, T9.670. POWER SHIFT TRANSMISSION - LUBRICATION

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
26
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
38
39
39
40
41
41
42
43
44
44
45
45
46
46
47
47
48
49
50
51
52
53
54
55
55
56
Позиция на иллюстрации Заводской номер детали Название детали
1 84176413 Lube pump
2 514-721 Bolt
3 238-5152 O-ring
4 370551A1 TUBE ASSY
5 S14701960 BALL
6 L116247 GAUGE
7 178889A1 FITTING
8 637-63113 O-ring
9 NSS Yoke
10 H434163 Dust cap
11 700-153 Hyd connector
12 701-329 ELBOW, 90є, 9/16"-18 ORFS x 9/16"-18 Fem Sw, SP6, 9C Only
13 190117A1 COUPLING, Diagnostic, SP6, 9C Only
14 A14141 FLANGE
15 627-12035 Bolt
16 238-6228 O-ring
17 84283535 Hyd tube
17 84283538 HYD. TUBE, Transmission Lube Suction, PS6, 9C
18 427140A1 Hose
19 214-3140 Hose clamp
20 87340823 Hyd connector
21 637-64386 O-ring
22 214-1420 CLAMP
23 84319553 HOSE, Transmission Fill, Formed
24 214-1428 HOSE CLAMP, #28, 1.31/2.25 Type F Worm
25 87646809 Tube
26 895-11010 Washer
27 627-10025 Bolt
28 832-10410 Nut
29 627-10035 BOLT
30 L18331 STRAP
31 87646822 Bracket
32 325737A1 CAP
33 700-308 Elbow
34 84179183 Hose assy
35 84179184 Hose assy
36 84179233 HYD. TUBE, 25.40 mm OD, Transmission Pump To Filter, PS4, 8.5C
36 84209817 TUBE, Transmission Pump To Filter, PS6, 9C
37 515-23254 Clamp
38 895-11008 Washer
39 627-8025 Bolt
40 829-1408 Nut
41 238-6021 O-ring
42 700-105 Hyd connector
43 84182313 Bracket
44 895-11016 WASHER, M16 x 30 x 3
45 627-16025 Bolt
46 84182314 Bracket
46 84209827 CLAMP BRACKET, P-Clamp, Middle Trans., PS6, 9C
47 84179238 HYD. TUBE, 25.40 mm OD, Transmission Filter To Reg Valve, PS4, 8.5C
47 84279281 HYD. TUBE, Transmission Filter To Reg Valve, PS6, 9C
48 84279279 Hyd tube
49 700-115 HYD CONNECTOR, 1"-14 ORFS x M18 x 1.5 ORB
50 701-346 ELBOW, 90є, 1"-14, ORFS, Blkhd
51 701-919 Bhd lock nut
52 87730802 Accumulator
53 84279278 BRACKET, SUPPORTING, Accumulator
54 367930A1 ADAPTER
55 385486A1 HEATER ASSY
55 387062A1 Unit heater
56 22-824 Cable tie
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
