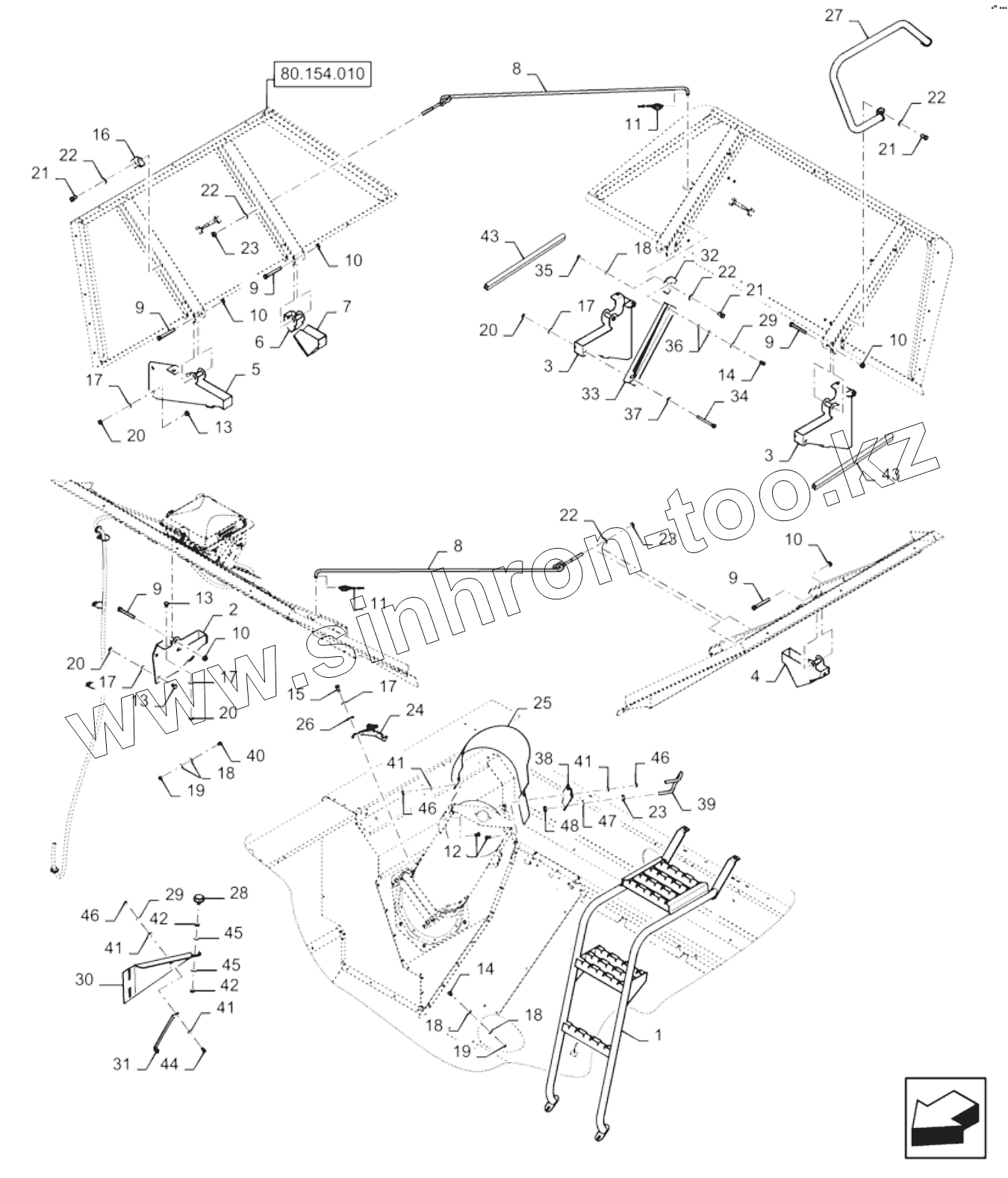

Каталог запасных частей к технике: New Holland Комбайн CR9080 E3 (часть 2). GRAINTANK EXTENSION HINGES
1
2
3
3
4
5
6
7
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
12
13
13
13
13
14
14
14
15
16
17
17
17
17
17
18
18
18
18
19
19
19
20
20
20
20
20
21
21
21
21
22
22
22
22
22
23
23
23
23
24
25
26
27
28
29
29
30
31
32
33
34
34
35
35
36
37
38
39
40
41
41
41
41
42
42
43
43
44
45
45
46
46
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 86976398 | Ladder | |
| 2 | 86975333 | Bracket | |
| 3 | 87107817 | Hinge | |
| 4 | 86975500 | Hinge | |
| 5 | 86975677 | Hinge | |
| 6 | 86975504 | Hinge | |
| 7 | 86975635 | Hinge | |
| 8 | 86975790 | Rod | |
| 9 | 374887 | Bolt | |
| 9 | 87032825 | Bolt | |
| 10 | 100038 | Nut | |
| 10 | 87681209 | Flange nut | |
| 11 | 87106279 | Pin | |
| 12 | 86507486 | Carriage bolt | |
| 13 | 120041 | Carriage bolt | |
| 13 | 87682390 | Carriage bolt | |
| 14 | 120104 | BOLT | |
| 14 | 87656137 | Bolt | |
| 15 | 43139 | SCREW | |
| 16 | 86976901 | Clip | |
| 17 | 140045 | Belleville washer | |
| 18 | 322358 | Belleville washer | |
| 19 | 9706690 | Nut | |
| 19 | 86507066 | Flange nut | |
| 20 | 100016 | Гайка | |
| 20 | 86050279 | Flange nut | |
| 21 | 300388 | Bolt | |
| 21 | 87343550 | Flange bolt | |
| 22 | 140046 | Belleville washer | |
| 23 | 9706685 | Nut | |
| 23 | 86512497 | Flange nut | |
| 24 | 84989746 | Bracket | |
| 25 | 86976336 | Shield | |
| 26 | 140042 | Washer | |
| 27 | 87109874 | Handle | |
| 28 | 190029 | Stop | |
| 29 | 378243 | Washer | |
| 30 | 84077956 | Support | |
| 31 | 84989162 | Support | |
| 32 | 87107781 | Bracket | |
| 33 | 87108067 | Latch | |
| 34 | 120117 | Bolt | |
| 34 | 87698861 | Bolt | |
| 35 | 87681210 | Flange nut | |
| 35 | 86629542 | Гайка | |
| 36 | 86511315 | WASHER | |
| 37 | 378244 | Washer | |
| 38 | 87108630 | Plate | |
| 39 | 87105130 | Handle | |
| 40 | 120104 | BOLT | |
| 41 | 322358 | Belleville washer | |
| 42 | 100016 | Гайка | |
| 43 | 1545944C1 | Seal | |
| 44 | 120104 | BOLT | |
| 45 | 140045 | Belleville washer | |
| 46 | 9706690 | Nut | |
| 47 | 140046 | Belleville washer | |
| 48 | 9706685 | Nut |
