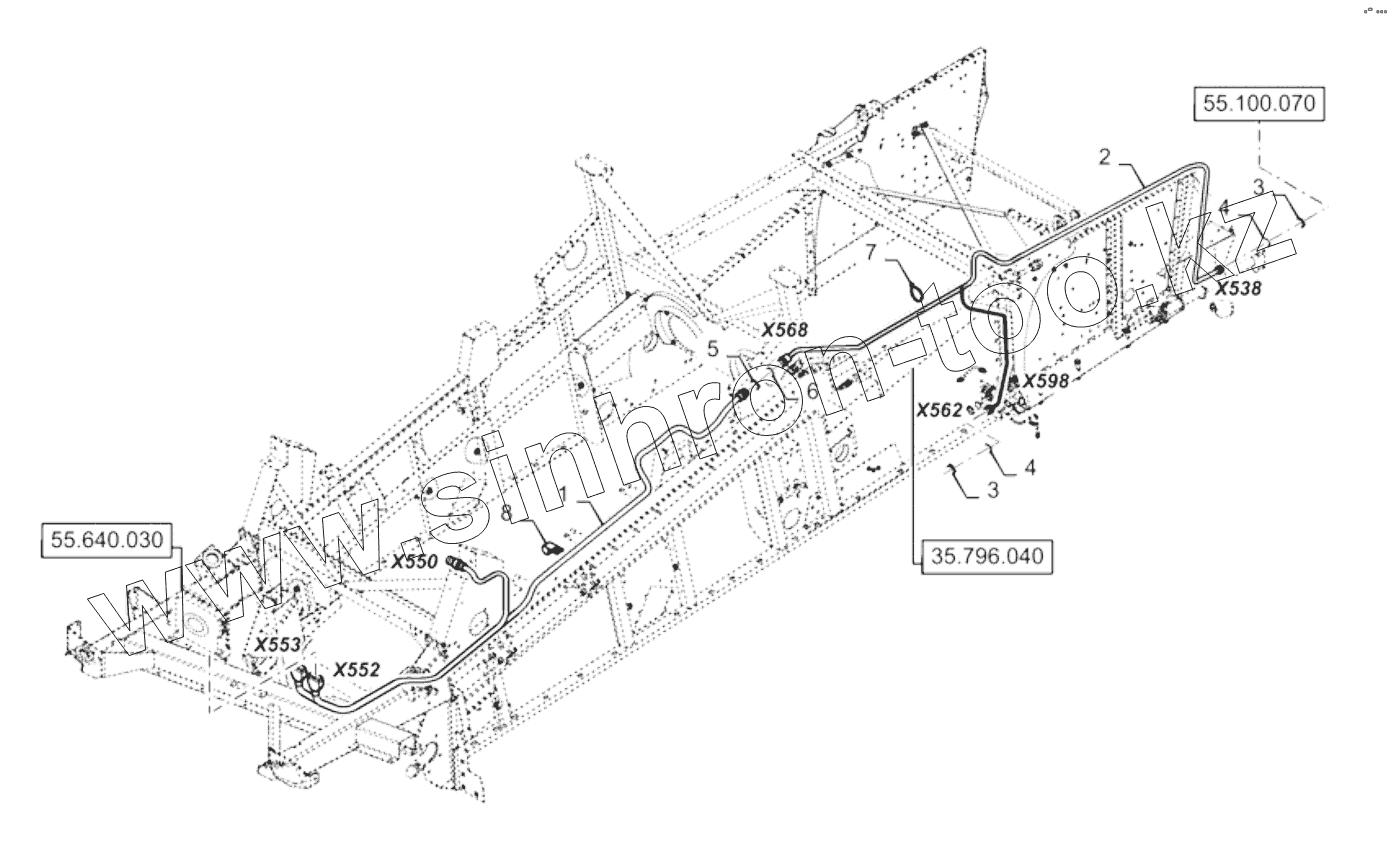

Каталог запасных частей к технике: New Holland Комбайн CR9080 E3 (часть 1). CCM4, WIRING HARNESS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано CSX7080 (D660) (2008) T8 (2012) T9.615, T9.670 (2012) TL5040 (2012) TS6.110 (2012) Комбайн CR9080 E3 (часть 1) (2014) Комбайн CR9080 E3 (часть 2) (2014) Трактор T9.505 (часть 1) (2012) Трактор T9.505 (часть 2) (2012) Трактор TJ425 (часть 1) (2010) Трактор TJ425 (часть 2) (2010)

Схема > Не выбрано FILTERS CAPACITIES MAINTENANCE PARTS, BELTS RIGHT-HAND SIDE MAINTENANCE PARTS, BELTS LEFT-HAND SIDE MAINTENANCE PARTS, FEEDER CHAINS MAINTENANCE PARTS, GRAIN ELEVATOR MAINTENANCE PARTS, UNLOADING AUGER DRIVE CHAIN MAINTENANCE PARTS, ALTERNATOR, STARTER, THERMOSTAT MAINTENANCE PARTS, CLUTCH PLATES MAINTENANCE PARTS, REVOLVING DUST SCREEN BRUSHES MAINTENANCE PARTS, BEVEL GEARS MAINTENANCE PARTS, TRACTION GEARBOX AND BRAKES MAINTENANCE PARTS, POWER TAKE-OFF FOR SELF-LEVELLING MAINTENANCE PARTS, FEEDER WEAR PLATES MAINTENANCE PARTS, THRESHING WEAR PLATES MAINTENANCE PARTS, THRESHING, SMALL GRAIN ROTORS MAINTENANCE PARTS, THRESHING, ROTOR KITS MAINTENANCE PARTS, THRESHING, TWIN PITCH ROTORS MAINTENANCE PARTS, THRESHING, CORN AND BEAN MAINTENANCE PARTS, THRESHING, CONCAVES MAINTENANCE PARTS, SIEVES MAINTENANCE PARTS, CLEANING SEALS MAINTENANCE PARTS, SHAKER SHOE MAINTENANCE PARTS, GRAIN ELEVATOR WEAR PLATES MAINTENANCE PARTS, UNLOADING AUGER MAINTENANCE PARTS, CHOPPER MAINTENANCE PARTS, CHAFF SPREADER FIRE EXTINGUISHER, FOR NA AND CANADA ONLY PRINTER COMPLETE ENGINE CURSOR13 ENGINE SUPPORTS OIL DRAIN ENGINE IN AND OUTLET, AIR FILTER ADDITIONAL FUEL FILTER FUEL TANK 1000 LITER, FUEL LINES FUEL TANK 1000 LITER, FUEL LINES FUEL TANK 1000 LITER, SUPPORTS FUEL TANK 250 LITER, SUPPORTS AIR CIRCUIT ENGINE IN- AND OUTLET ENGINE IN- AND OUTLET WATER CIRCUIT, SHUNT TANK, (Prod Date) before 20-JUN-2012 ROTARY SCREEN - FRAME COOLER, FAN BLADE ANTI-RECIRCULATION COOLER, WATER COOLER, AIR COOLER, FAN REVOLVING DUST SCREEN, DRIVE SHAFT REVOLVING DUST SCREEN, DRIVE BELT FAN DRIVE REVOLVING DUST SCREEN 38dm BRUSH IN DUST SCREEN ROTARY DUST SCREEN DRIVE ROTARY DUST SCREEN DRIVE BLOW-OFF SYSTEM, AIR COMPRESSOR BLOW-OFF SYSTEM, TUBES BLOW-OFF SYSTEM, TUBES BLOW-OFF SYSTEM, AIR RESERVOIR ENGINE BLOW-OFF ENGINE BLOW-OFF BLOW-OFF SYSTEM, AIR GUN ENGINE, GEARBOX ENGINE, GEARBOX ENGINE, GEARBOX ENGINE, GEARBOX AND CLUTCH ENGINE, GEARBOX ENGINE, GEARBOX CLUTCH, 16 PINS GEARBOX BRAKE GUARD COMPLETE TRACTION GEARBOX GEARBOX, INPUT SHAFT GEARBOX, DRIVE SHAFT GEARBOX, SHIFTING SYSTEM, GEARS GEARBOX, DRIVEN SHAFT DIFFERENTIAL LOCK CONTROL DIFFERENTIAL LOCK CONTROL DIFFERENTIAL, (Prod Date) before 29-MAR-2012 DIFFERENTIAL, (Prod Date) after 30-MAR-2012 DRIVE SHAFTS DRIVE SHAFT FOR TRACKS END REDUCTION, 13/110 END REDUCTION, 13/110 END REDUCTION, PLANETARY END REDUCTION, PLANETARY WHEELSPACER FOR TW620/70R42 - DUAL WHEELS OIL DELIVERY AND RETURN PIPES OIL COOLER HYDROSTATIC LINES, 125/107 CC / 125/125 CC HYDROSTATIC LINES, 125/107 CC / 125/125 CC HYDROSTATIC LINES, 125/140 CC VARIABLE HYDROSTATIC LINES, 125/140 CC VARIABLE HYDROSTATIC PUMP, 125CC CLEANING FAN AND ACTIVE SPREADER HYDRAULIC PUMP HYDRAULIC PUMP FOR HYDRAULIC FAN HYDROSTATIC PUMP, 125CC HYDROSTATIC PUMP, 125CC HYDROSTATIC PUMP, 125CC HYDROSTATIC MOTOR, 125CC HYDROSTATIC MOTOR, 140CC DUAL SPEED, PRA2 POWERED REAR AXLE, PRA2 POWERED REAR AXLE, PRA2 POWERED REAR AXLE - WHEEL DRIVE, PRA2 POWERED REAR AXLE - WHEEL MOTOR POWERED REAR AXLE - VALVE, PRA2 POWERED REAR AXLE, DUAL SPEED, PRA2 POWERED REAR AXLE - WHEEL DRIVE, PRA2, DUAL SPEED POWERED REAR AXLE - WHEEL MOTOR, DUAL SPEED POWERED REAR AXLE - VALVE, PRA2, DUAL SPEED GEARBOX, PARKING BRAKE HANDBRAKE PIPING BRAKE DISCS BRAKE CALIPER CIRCUIT FOR HYDRAULIC BRAKES CIRCUIT FOR HYDRAULIC BRAKES, (Prod Date) before 27-JUN-2012 RETURN FILTERS HYDRAULICS FOR ENGINE, PUMP AND DIVIDER HYDRAULIC TANK HYDRAULICS FOR ENGINE - THERMOSTAT HYDRAULICS FOR ENGINE - THERMOSTAT HYDRAULICS FOR ENGINE - HYDRAULIC DIVIDER PIPING FEEDER HYDRAULIC TUBES FEEDER HYDRAULIC TUBES WITH LATERAL FLOTATION, FRONT FACE ADJUSTMENT AND ADVANCED STONE PROTECTION FEEDER HYDRAULIC VALVE WITH LATERAL FLOTATION, FRONT FACE ADJUSTMENT AND ACTIVE STONE TRAP PROTECTION FEEDER HYDRAULIC VALVE WITH LATERAL FLOTATION, FRONT FACE ADJUSTMENT AND ADVANCED STONE PROTECTION FEEDER HYDRAULIC VALVE WITH LATERAL FLOTATION, FRONT FACE ADJUSTMENT AND STONE TRAP MODULE FEEDER HYDRAULIC VALVE WITH LATERAL FLOTATION, FRONT FACE ADJUSTMENT AND STONE TRAP MODULE MAIN STACK VALVE WITH FEEDER VARIATOR MAIN STACK VALVE, STANDARD MAIN STACK VALVE WITH FEEDER VARIATOR MAIN STACK VALVE, STANDARD ACCUMULATOR FOR MAIN VALVE FEEDER HEIGHT SYSTEM PIPING HEADER CYLINDER 80 MM, WITH STONE TRAP MODULE HEADER CYLINDER 90 MM, WITH STONE TRAP MODULE HEADER CYLINDERS, TUBES 80MM - 90MM HEADER CYLINDERS, TUBES WITH STONE TRAP MODULE HEADER CYLINDER STONE PROTECTION DOOR, DOOR LATCH LH HYDRAULIC TUBES UNLOADING AUGER CYLINDER CYLINDER FOR UNLOADING AUGER HYDRAULIC FAN DRIVE HYDRAULIC FAN DRIVE FEEDER LH CYLINDER AND ACCUMULATOR FEEDER LH CYLINDER AND ACCUMULATOR WITH LATERAL FLOTATION, FRONT FACE ADJUSTMENT AND ADVANCED STONE PROTECTION QUICK COUPLING, (Prod Date) before 09-SEP-2012 QUICK COUPLING, (Prod Date) after 10-SEP-2012 HYDRAULIC DIVIDER SMART STEER AUTO-GUIDANCE KIT - HYDRAULICS, (ProdDate) before 16-AUG-2013 FEEDER REVERSER DRIVE MOTOR CONVEYOR ASSEMBLY, HYDRAULIC MOTOR STRAW CHOPPER WITH ROLLER, HYDRAULIC MOTOR ACTIVE SPREADER HYDRAULIC TUBES HYDRAULICS , OPTI-SPREAD HYDRAULICS FOR ACTIVE SPREADER HYDRAULIC CHAFF SPREADER DRIVE WITH PSD HYDRAULICS FOR CHAFF SPREADER WITH VARIATOR CHAFF SPREADER BYPASS CHAFF SPREADER, HYDRAULICS SMART STEER AUTO-GUIDANCE KIT - HYDRAULIC VALVE HYDRAULIC TUBES HYDRAULIC TUBES HYDRAULIC TUBES FOR 36 INCH TRACKS HYDRAULIC MOTORS , OPTI-SPREAD HYDRAULIC MOTORS , CHAFF SPREADER TUBE CLAMPS AND HYDRAULIC TUBES STRAIGHT CONNECTIONS AND REPAIR FOR ORFS HYDRAULIC TUBES HYDRAULIC FITTINGS HYDRAULIC FITTINGS HYDRAULIC FITTINGS, ANGULAR HYDRAULIC FITTINGS, ANGULAR HYDRAULIC FITTINGS, T HYDRAULIC FITTINGS, PLUG FOLDING TRAILER HITCH, (Prod Date) before 31-DEC-2011 HITCH, (Prod Date) before 23-JAN-2012 HITCH COUNTERWEIGHTS FRAME, THRESHING LOWER AND PIVOTING FRAME, SELF LEVELLING AXLE, POWERED AND HEAVY DUTY (HD), TIE RODS STEERING, HYDRAULIC CONTROL, PIPING STEERING, HYDRAULIC CONTROL, PIPING TO CAB STEERING, HYDRAULIC CONTROL, STEERING VALVE PIPING STEERING, HYDRAULIC CONTROL, STEERING VALVE PIPING, AGR STEERING, HYDRAULIC CONTROL, MAIN STACK VALVE STEERING VALVE STEERING COLUMN STEERING COLUMN HYDRAULIC PUMP, (Prod Date) before 31-AUG-2012 HYDRAULIC PUMP, (Prod Date) after 01-SEP-2012 AXLE, POWERED AND HEAVY DUTY (HD), CYLINDER POWERED REAR AXLE, HYDROSTATIC SUPPLY FRONT AXLE EXTENSIONS AXLE, POWERED AND HEAVY DUTY (HD) WHEEL HUBS, HEAVY DUTY (HD) TRACTION WHEELS 520/85R42-157A8-R1W DUAL TRACTION WHEELS 520/85R42-157A8-R1 DUAL TRACTION WHEELS 620/70R42 - 166A8-R1W DUAL TRACTION WHEELS 900/60R32-185A8-R1W TRACTION WHEELS 900/60R32 176A8 R1W TRACTION WHEELS 900/60R32 176A8 R1 TRACTION WHEELS 900/65R32 178A8 R2 TRACTION WHEELS 520/85R42-157A8-R1 DUAL FIXATION KIT FOR DUAL WHEELS FIXATION KIT FOR FLOTATION WHEELS FLOTATION WHEELS 76X50.00-32 16PR HF3 STEERING WHEELS 28L-26 10PR R1 (-140) STEERING WHEELS 28L-26 12PR R2 (-140) STEERING WHEELS 480/70R30 LI152 R1 (-50) STEERING WHEELS 540/65R30 LI 150 R1W (-50) STEERING WHEELS 600/65R28 LI154 R1W (-65) TRACK SUPPORT, NON SUSPENDED TRACKS SIDE SUPPORT, NON SUSPENDED TRACKS RUBBER TRACK, NON SUSPENDED TRACKS TRACK ROLLER, NON SUSPENDED TRACKS DRIVING WHEEL, FOR NON SUSPENDED TRACKS FRONT IDLER AND TRACK TENSIONER, FOR NON SUSPENDED TRACKS REAR IDLER, FOR NON SUSPENDED TRACKS AIR CONDITIONER - COMPRESSOR DRIVE-BELT AIR CONDITIONER - HEATING HOSES AIR CONDITIONER - CONDENSOR RECIEVER-DRYER HOSES AIR CONDITIONER - CONDENSOR RECIEVER-DRYER AIR FILTER AND BLOWER AIR FILTER AND BLOWER, SUPPORTS AIR CONDITIONER - MOUNTING GROUP IN CAB AIRCO UNIT ATC W/COOLBOX STEERING COLUMN FRONT FRAME, ELECTRICITY MAIN WIRE HARNESS, CAB MAIN WIRE HARNESS, REAR LH MAIN WIRE HARNESS, REAR RH HARNESS WIRE, OPTI-SPREAD STRAW HOOD ELECTRICITY CABLE HARNESS, STRAW HOOD, LH CABLE HARNESS, STRAW HOOD, RH FEEDER GROUP WIRE HARNESS EXTENSION FEEDER GROUP WIRE HARNESS FEEDER GROUP WIRE HARNESS FOR ADVANCED STONE PROTECTION ELECTRICS ON HITCH ENGINE ELECTRICITY ENGINE ELECTRICITY ENGINE ELECTRICITY WIRE HARNESS CCM 3 HARNESS WIRE, CHAFF SPREADER CCM4, WIRING HARNESS CAB, MAIN WIRING HARNESS COOLANT HEATER ALTERNATOR DRIVE (FRONT DRIVES) BATTERY SYSTEM LIGHT-ARMS, STRAW CHOPPER READY LIGHT-ARMS STANDARD WORKING-LIGHTS WORKING-LIGHTS - HID EXTRA HID - WORKING-LIGHT CENTRAL ROOF LIGHT, HALOGEN HEADLIGHTS - FOR CANADA AND NA ONLY SPECIFIC LIGHTS FOR NA AND CANADA STRAW HOOD, WORKLIGHT LIGHTING, UNDER SHIELD, L.H. LIGHTING, UNDER SHIELD, R.H. REAR LIGHTS EXTENSIONS UNLOADING TUBE LIGHT INSPECTION LAMP ELECTRICITY GRAINTANK LIGHT FOR 250 MM PLATFORM EXTENSIONS LIGHT FOR 500 MM PLATFORM EXTENSIONS LIGHT FOR 750 MM PLATFORM EXTENSIONS GRAINTANK LIGHT REAR BEACON LIGHT CAB ROOF, OUTER REAR BEACON LIGHT, (Prod Date) before 07-MAY-2012 FUEL LEVEL SENSOR, FOR 1000 LITER STRAW CHOPPER, ELECTRICAL COMPONENTS CONVEYOR ASSEMBLY, SENSOR ELECTRICITY STRAW CUTTER WITH PSD, SENSOR ELECTRICITY STRAW CUTTER WITH ROLLER, SENSOR GRAINTANK ELECTRICITY GRAIN FLOW YIELD SENSOR HEADER HEIGHT NODE, SWITCH LATERAL FLOTATION SENSOR BLOWER SPEED SENSOR ROTOR LOSS SENSOR SENSOR, SELF BELT TENSION GEARBOX SENSOR GEARBOX, SHIFTING SYSTEM, ELECTRICITY GEARBOX, SPEED SENSOR RETURN FILTERS - SENSORS ENGINE GEARBOX HYDRAULIC TANK SENSORS, OPTI-SPREAD RIGHT HAND CONSOLE RIGHT HAND CONSOLE - TOUCHSCREEN SWITCH, UPPER/LOWER SIEVE ADJUSTMENT LOWER FRAME, ELECTRICS DGPS - NH062 DGPS ANTENNA MOUNTING KIT DGPS MOUNTING KIT FOR GRAINTANK EXTENSIONS DGPS ANTENNA - NH252/NH262 DGPS ANTENNA - NH162 SENSORS, CHAFF SPREADER MEMORY STICK CAB ROOF CONTROLS ANTENNA CAB ROOF, INNER, PREMIUM SPEAKERS CAB ROOF, INNER, STANDARD REAR SPEAKERS DASHBOARD RADIO REAR VIEW MIRROR MANUAL REAR VIEW MIRROR CAB ROOF WIRING HARNESS CAB ROOF LIGHTS AND ANTENNA - AM-FM WINDSCREEN WIPER WINDSCREEN WASHER, WATER RESERVOIR, (Prod Date) before 07-JUN-2012 WASHER SYSTEM REVERSER ELECTRIC CONTROL CONCAVE CONTROL MOTOR MOISTURE SENSOR CCM CONTROL MODULE SMART STEER AUTO-GUIDANCE KIT - STEERING WHEEL, SENSOR SELF LEVELLING, ACTUATOR AND SENSOR PERFORMANCE DETECTOR ON SHAKER SHOE ROTARY DUST SCREEN DRIVE ELECTRIC MOTOR - ENGINE BLOW-OFF ACTUATOR, REMOTE CHAFFER ADJUSTMENT, UPPER SIEVE 1 1/8dm ACTUATOR, REMOTE CHAFFER ADJUSTMENT, LOWER SIEVE ACTUATOR, REMOTE CHAFFER ADJUSTMENT, UPPER SIEVE 1 5/8dm, (Prod Date) before 23-JUL-2013 FUEL PUMP, FOR 750 LITER FUEL PUMP, FOR 1000 LITER GRAINTANK COVERS, ACTUATOR ACTUATORS, OPTI-SPREAD REBUILD KIT WIDE SPREADER HOOD REMOTE CONTROL CAMERA KIT

1

2

3

3

4

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	87747669		Wire harness
2	87750457		Wire harness
3	9861348		Nut
4	9861349		Lock washer
5	86619907		Nut
6	636665		Lock washer
7	86566989		Cable tie
8	9827902		CLAMP

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
