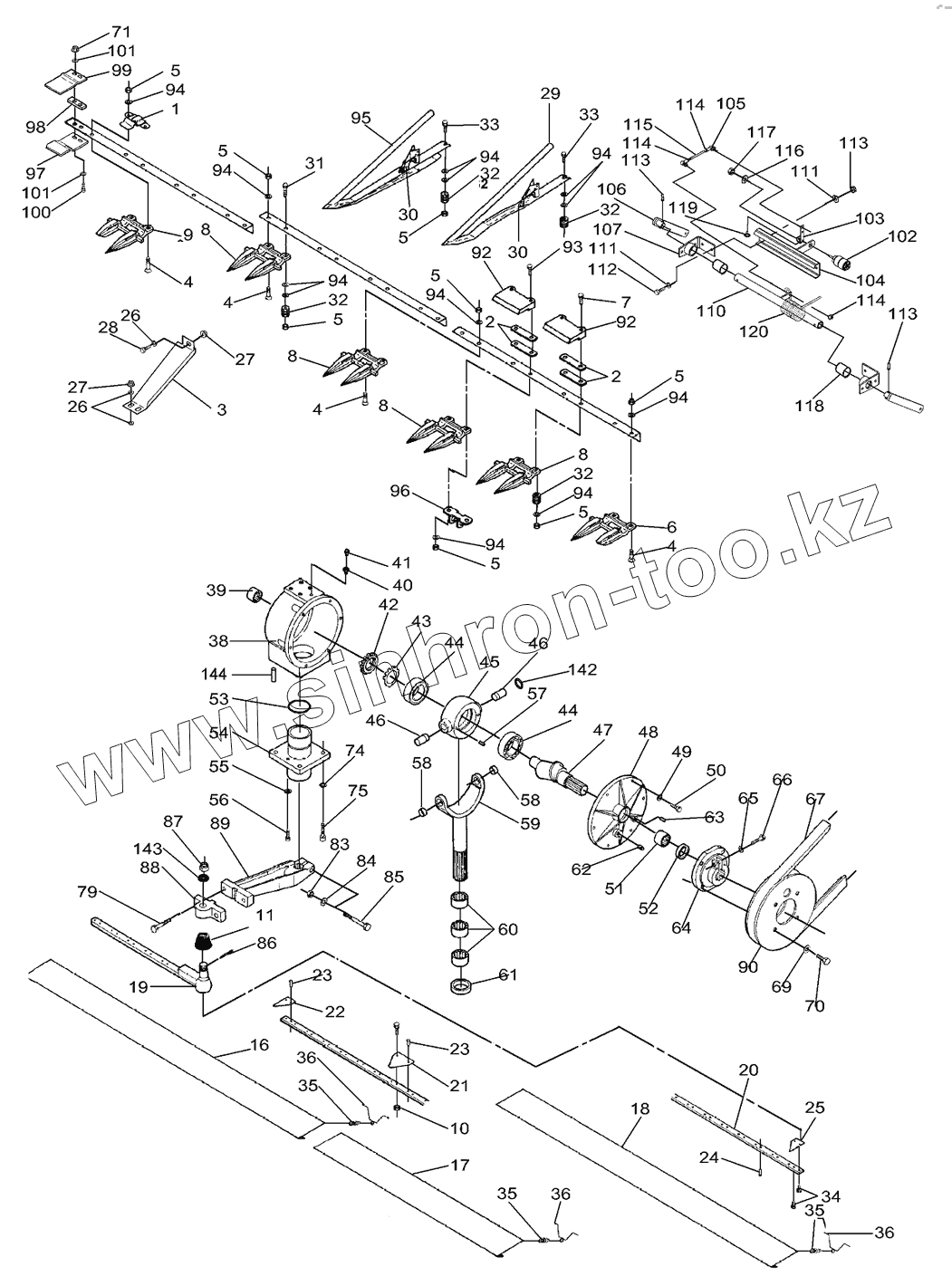

Каталог запасных частей к технике: Massey Ferguson Fend-8300/8350. Knives And Fingers - Powerflow, 25'

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
4
4
4
4
5
5
5
5
5
5
5
5
6
7
8
8
8
8
9
10
11
16
16
16
17
18
18
18
19
19
20
21
22
23
23
24
25
26
26
27
27
28
29
30
30
31
32
32
32
32
33
33
34
35
35
35
36
36
36
38
38
38
38
39
40
41
42
43
44
44
45
45
46
46
46
47
48
48
49
50
51
52
53
54
54
55
56
56
57
58
58
58
59
59
60
61
62
63
64
65
66
67
69
70
71
74
75
79
83
84
85
86
87
88
89
90
92
92
93
94
94
94
94
94
94
94
94
94
95
96
97
98
99
100
101
101
102
103
104
105
106
107
110
111
111
112
113
113
113
114
114
114
115
116
117
118
119
120
142
143
144
Позиция на иллюстрации Заводской номер детали Название детали
1 D28283934 CLIP
2 D28230292 SHIM
3 D58281572 GUARD
4 D40551500 BOLT
5 339402X1 Nut
6 D44104700 FINGER
7 D40067600 SCREW
8 D44104500 FINGER
9 D44104600 FINGER
10 1441462X1 LOCKNUT
11 D44120500 CAP
16 D28230830 GUARD
16 D28230842 GUARD
16 D28230845 GUARD
17 D28230843 GUARD
18 D28230830 GUARD
18 D28230844 GUARD
18 D28230842 GUARD
19 D28285042 KNIFE
19 D28283011 TOGGLE
20 D28285041 KNIFE BACK
21 D44103700 SECTION
22 D44103800 HALF SECTION
23 D41306100 RIVET
24 D41306200 RIVET
25 D44104000 HALF SECTION
26 D20400506 WASHER
27 394367X1 Locknut
28 339123X1 Hex Cap Screw
29 D49040900 EAR LIFTER
30 D49040400 SPRING
31 339019X1 Hex Cap Screw
32 D49040600 ROLLER
33 339019X1 Hex Cap Screw
34 339560X1 Hex Cap Screw
35 D26500317 SPRING
36 D28230841 SPRING
38 D28281067 WOBBLE DRIVE
38 D44127800 BOX
38 D28281324 WOBBLE DRIVE
38 D44126500 BOX
39 D44128800 BEARING NEEDLE
40 D44129400 CONNECTOR
41 D46116500 VALVE
42 D44129100 NUT
43 D44129200 WASHER
44 D41668400 ROLLER BEARING
45 D44127900 HOUSING
45 D44126400 HOUSING
46 D44128000 JOURNAL
46 D44125900 JOURNAL
47 D44129300 SHAFT
48 D44128200 COVER
48 D44126300 COVER
49 D41102100 WASHER
50 339123X1 Hex Cap Screw
51 D41669700 BEARING NEEDLE
52 D45412000 GASKET
53 D45481500 O-RING
54 D44128300 BEARING CARRIER
54 D44126200 BEARING CARRIER
55 D41102100 WASHER
56 D40697200 SCREW
56 D40697700 SCREW
57 D40639600 PIN
58 D44128400 BUSH
58 D44126100 BUSH
59 D44128500 YOKE
59 D44126000 YOKE
60 D41669800 BEARING NEEDLE
61 D45409500 GASKET
62 D44128600 PLUG
63 D45236200 PLUG
64 D44127100 HUB
65 D41100900 SPRING WASHER
66 D40694000 SCREW
67 D41986300 V-BELT
69 D20400426 WASHER
70 1440716X1 Hex Cap Screw
71 394367X1 Locknut
74 D20400522 SPACER
75 D40465100 SCREW
79 D40698400 SCREW
83 1442190X1 Locknut
84 D20400428 WASHER
85 390826X1 HEX. SOCK. SCREW
86 391423X1 SPLIT PIN
87 D41054300 NUT
88 D44126900 FLANGE
89 D44127000 SWIVEL ARM
90 D44127200 PULLEY
92 D28260362 CLIP
93 1441671X1 SCREW SPECIAL
94 D20400419 WASHER
95 D49040300 EAR LIFTER
96 D28284356 FITTING
97 D28281576 PLATE
98 D28281575 SHIM
99 D28281574 PLATE
100 339009X1 Hex Cap Screw
101 D20400506 WASHER
102 D28780523 POTENTIOMETER
103 D28284361 CONNECTING LINK
104 D28285250 SUPPORT
105 D46437300 TOGGLE
106 D28285198 ARM
107 D28285073 CLAMP
108 D28285072 BUSH
109 339390X1 PIN
110 D28285251 SHAFT
111 D20400413 WASHER
112 339761X1 Hex Cap Screw
113 394367X1 Locknut
114 D41010600 NUT
115 D28780446 ROD
116 D20400404 WASHER
117 1441462X1 LOCKNUT
118 D28284456 BUSH
119 D40464900 SCREW
120 D28285087 SPIRAL
142 D45483000 O-RING
143 D20400438 WASHER
144 D42650400 PIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
