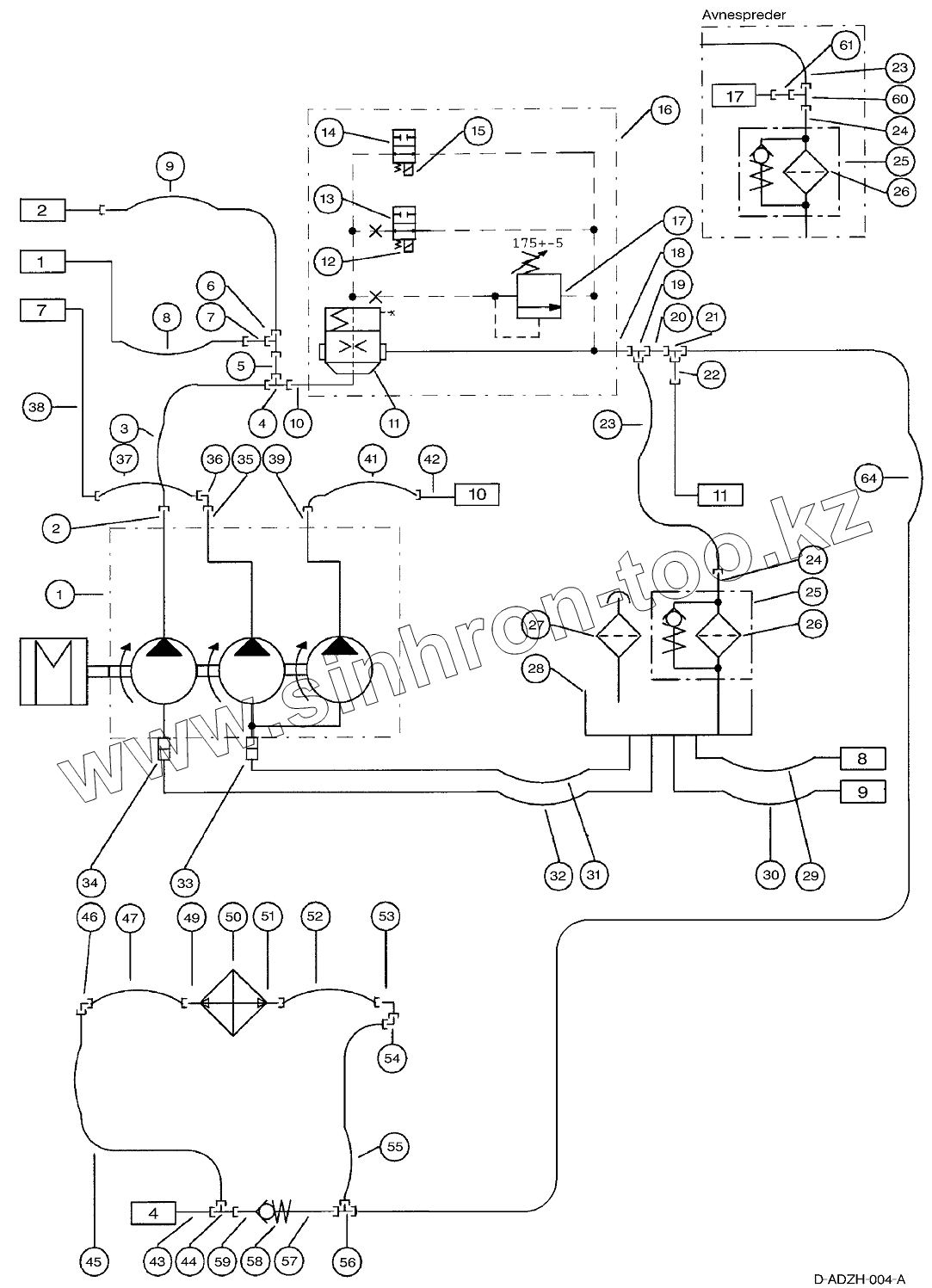

Каталог запасных частей к технике: Massey Ferguson Fend-8300/8350. Hydraulics - Pump And Main Valve
1
1
1
2
2
3
4
4
5
6
7
7
8
8
9
9
10
10
11
11
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
41
42
43
44
45
45
46
47
49
50
51
52
53
54
55
56
57
58
59
60
61
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | D45167300 | KIT, SEAL | |
| 1 | D45166900 | PUMP | |
| 2 | D45251500 | UNION | |
| 3 | D45130042 | HYDR. HOSE | |
| 4 | D45266600 | UNION | |
| 5 | D45272100 | CONNECTOR | |
| 6 | D45266200 | UNION | |
| 7 | D45272800 | UNION | |
| 8 | D45130043 | HYDR. HOSE | |
| 9 | D45130043 | HYDR. HOSE | |
| 10 | D45251500 | UNION | |
| 11 | D45120002 | PRESSURE VALVE | |
| 11 | D45120043 | O-RING | |
| 12 | D45110064 | COIL | |
| 13 | D45120004 | BYPASS | |
| 14 | D45120004 | BYPASS | |
| 15 | D45110064 | COIL | |
| 16 | D45120001 | KIT, SEAL | |
| 16 | D45110070 | BLOCK | |
| 17 | D45120003 | PRESSURE VALVE | |
| 18 | D45255500 | FITTING | |
| 19 | D45266800 | FITTING | |
| 20 | D45273100 | REDUCER | |
| 21 | D45266600 | UNION | |
| 22 | D45272000 | CONNECTOR | |
| 23 | D45130051 | HYDR. HOSE | |
| 24 | D45255300 | UNION | |
| 25 | D45165800 | RETURN FL.FILTER | |
| 26 | D45165900 | FILTER | |
| 27 | D45103000 | FILTER | |
| 28 | D28787072 | BOTTOM | |
| 28 | D28781818 | PLATE | |
| 28 | D28781819 | KIT, SEAL | |
| 29 | D45130050 | HOSE | |
| 30 | D45130050 | HOSE | |
| 31 | D28782308 | HOSE | |
| 32 | D28782308 | HOSE | |
| 33 | D28781675 | BRACKET | |
| 34 | D28781675 | BRACKET | |
| 35 | D45250700 | UNION | |
| 36 | D45264100 | UNION | |
| 37 | D45130040 | HYDR. HOSE | |
| 38 | D28786565 | PIPE | |
| 39 | D45250700 | UNION | |
| 41 | D45130040 | HYDR. HOSE | |
| 42 | D28786564 | PIPE | |
| 43 | D28780671 | PIPE,OIL | |
| 44 | D45266600 | UNION | |
| 45 | D45130042 | HYDR. HOSE | |
| 45 | D45130141 | HYDR. HOSE | |
| 46 | D45269900 | CONNECTOR | |
| 47 | D45130037 | HYDRAULIC HOSE | |
| 49 | D45251500 | UNION | |
| 50 | D28785651 | OIL COOLER | |
| 51 | D45251500 | UNION | |
| 52 | D45010037 | CONNECTOR | |
| 53 | D45264300 | CONNECTORS | |
| 54 | D45269900 | CONNECTOR | |
| 55 | D45130039 | HYDRAULIC HOSE | |
| 56 | D45267700 | CONNECTION | |
| 57 | D45255600 | UNION | |
| 58 | D45110097 | BYPASS | |
| 59 | D45255600 | UNION | |
| 60 | D45266800 | FITTING | |
| 61 | D45273200 | UNION | |
| 64 | D45130039 | HYDRAULIC HOSE |
