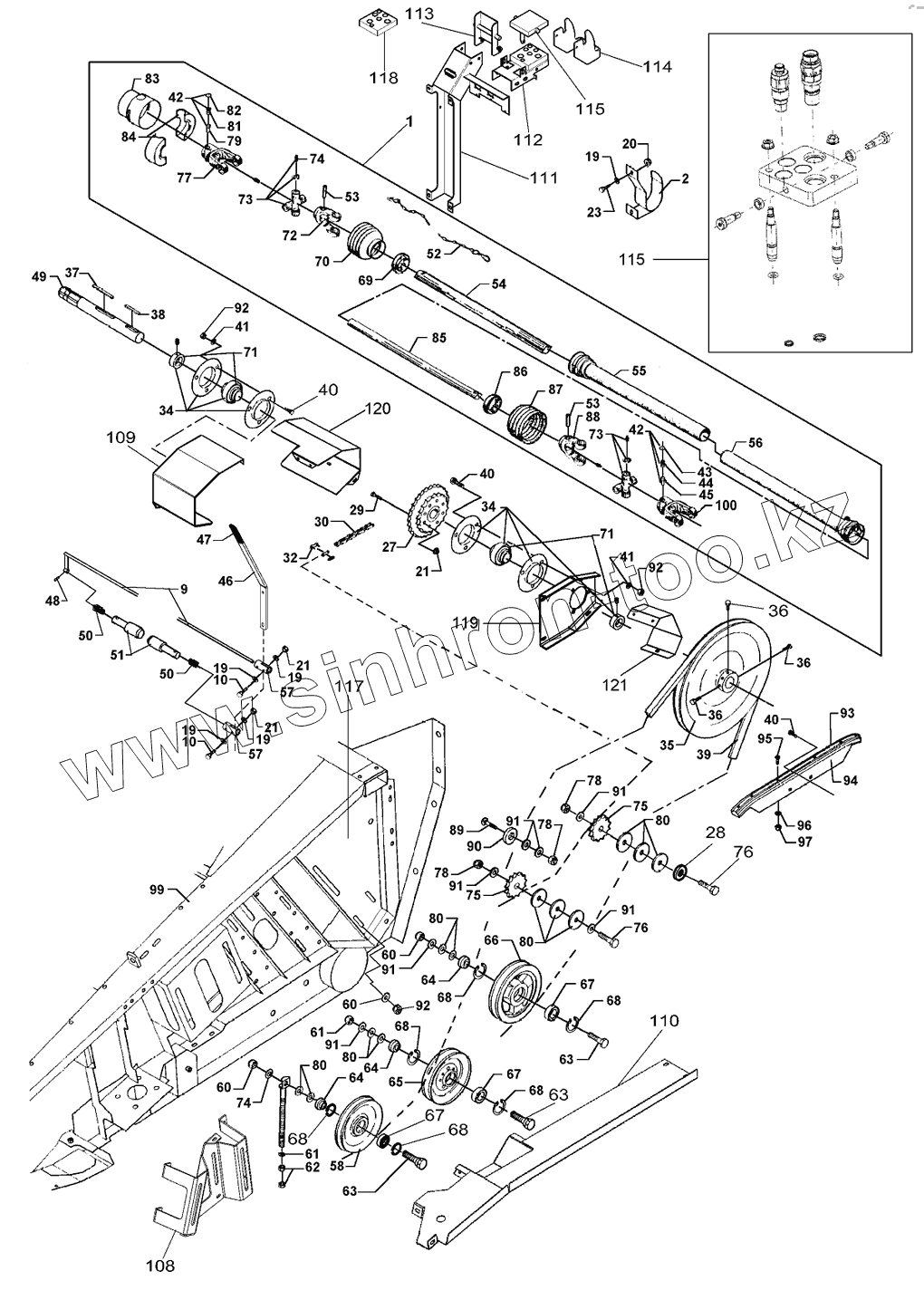

Каталог запасных частей к технике: Massey Ferguson Fend-8300/8350. Guarding And Transmissions - Powerflow, 20'

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
9
9
10
10
19
19
19
19
19
20
21
21
21
23
27
28
29
30
32
34
34
35
36
36
36
37
38
39
40
40
40
41
41
42
42
43
44
45
46
47
48
49
49
50
50
51
52
53
53
54
55
56
57
57
58
60
60
60
61
61
62
63
63
63
64
64
64
65
66
67
67
67
68
68
68
68
68
68
69
70
71
71
72
73
73
74
74
75
75
76
76
77
78
78
78
79
80
80
80
80
80
81
82
83
84
85
86
87
88
89
90
91
91
91
91
91
91
92
92
92
93
94
95
96
97
99
100
108
109
110
111
112
113
114
115
115
117
118
119
120
121
Позиция на иллюстрации Заводской номер детали Название детали
1 D45609100 SHAFT
1 D28273974 SHAFT
2 D58281345 STIRRUP
4 339123X1 Hex Cap Screw
5 391038X1 Flat Washer
8 339666X1 Hex Cap Screw
9 D28285117 ROD
9 D28274027 SHAFT
10 339168X1 Hex Cap Screw
18 339337X1 Hex Cap Screw
19 D20400506 WASHER
20 394367X1 Locknut
21 394367X1 Locknut
22 339761X1 Hex Cap Screw
23 339124X1 Hex Cap Screw
26 1441462X1 LOCKNUT
27 D28285385 GEAR
28 D20400460 WASHER
29 339009X1 Hex Cap Screw
30 D42329200 CHAIN
32 D42365500 LINK
34 D41707800 BEARING
35 D28285423 PULLEY
36 D40697900 SCREW
37 D43114900 KEY
38 1441579X1 KEY PARALLEL
39 D41986300 V-BELT
40 1442456X1 SCREW SPECIAL
41 D20400419 WASHER
42 D45632400 TUBE
43 D45645700 WASHER
44 D45667300 SPRING
45 D45665300 PIN
46 D28285127 LEVER
47 D43484900 LEVER
48 D42612200 PIN
49 D28285125 SHAFT
49 D28274027 SHAFT
50 D27100794 SPRING
51 D28283200 SHAFT
52 D45681800 CHAIN
53 D42619100 PIN
54 D45631100 TUBE
55 D45631900 TUBE
56 D45632300 TUBE
57 D28285126 FORK
58 D28760574 PULLEY
60 1442739X1 Locknut
61 D20400416 WASHER
62 339402X1 Nut
63 D28760156 SCREW
64 D28760155 BUSH
65 D28752130 PULLEY
66 D28280819 PULLEY
67 SKF62042RS BEAR. 6204 2RS
68 339199X1 CIRCLIP
69 D45630600 RING
70 D45630400 GUARD
71 D41663400 BALL BEARING
72 D45630200 YOKE
73 D45630300 HUB
74 3008923X1 GREASE FITTING
75 D41716800 TIGHTENER
76 391889X1 Hex Cap Screw
77 D45633100 YOKE
78 1442739X1 Locknut
79 D45665300 PIN
80 D20400460 WASHER
81 D45667300 SPRING
82 D45645700 WASHER
83 D45632900 BUSH
84 D45633300 TUBE
85 D45631500 TUBE
86 D45630700 RING
87 D45630500 GUARD
88 D45630100 YOKE
89 D40073100 SCREW
90 D28280981 SPACER
91 D28181284 WASHER
92 1440329X1 Locknut
93 D28280787 RAIL
94 D28281365 CROSSMEMBER
95 D40609300 SCREW
96 D20400466 WASHER
97 D41087200 LOCKNUT
99 D28273743 HOUSING
100 D45633200 YOKE
105 D45140037 SCREW
108 D28285454 BRACKET
109 D28285290 SHIELD
110 D28285366 GUARD
111 D28285518 BRACKET
112 D28285519 SUPPORT
113 D28285497 SUPPORT
114 D28285494 STIRRUP
115 D45140044 CLUTCH
116 D45702000 HOSE
117 D28285445 BRACKET
118 D28285492 RUBBER PATCH
119 D28284766 SUPPORT
120 D28284767 SHIELD
121 D28284832 SHIELD
