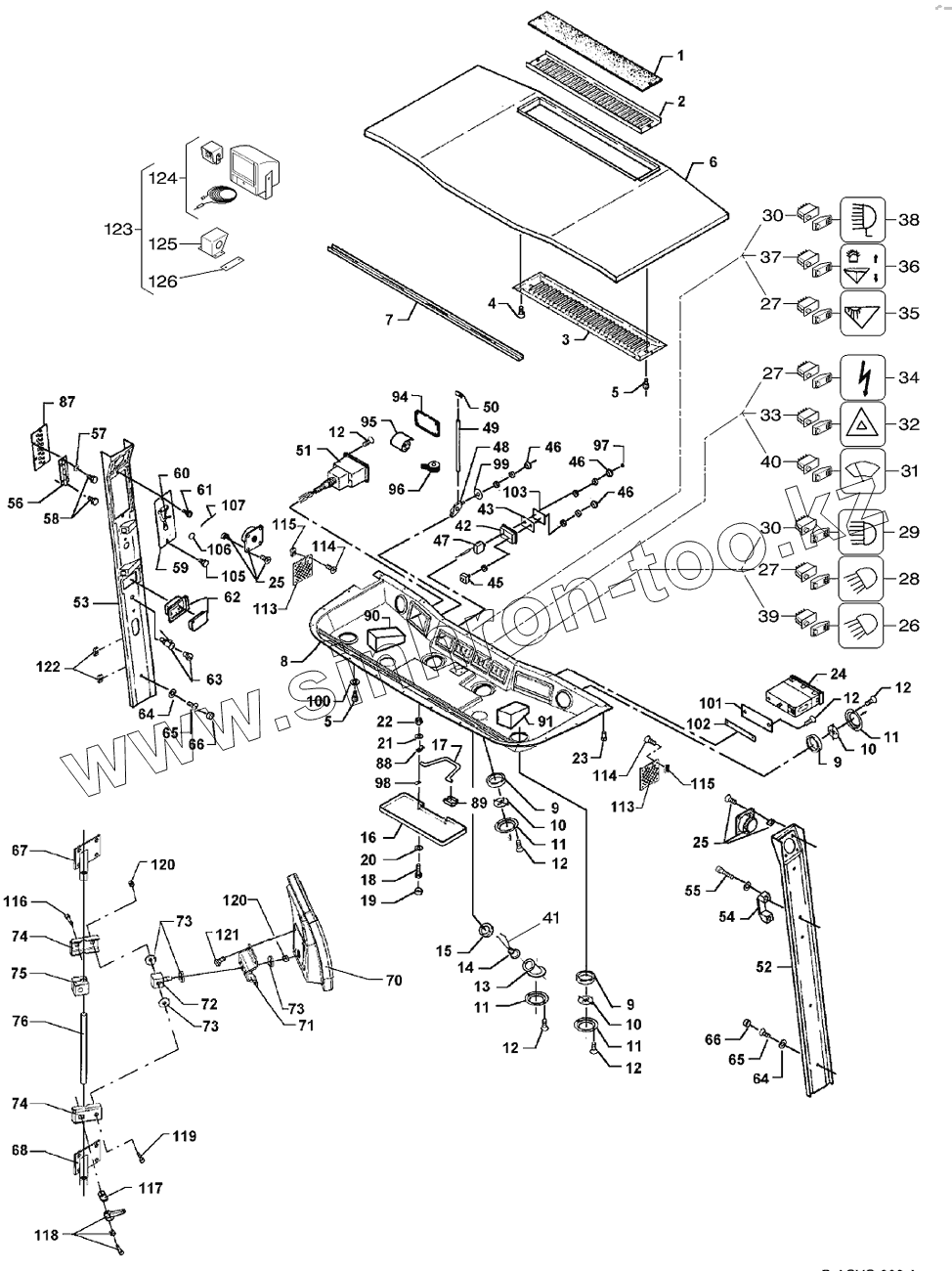

Каталог запасных частей к технике: Massey Ferguson Fend-8300/8350. Frontpanel, Side Members And Datavision

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
7
8
9
9
9
10
10
10
11
11
11
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
24
24
24
24
25
25
26
27
27
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
45
46
46
46
47
48
49
50
51
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64
65
65
66
66
67
68
70
71
72
73
73
73
74
74
75
76
87
88
89
90
91
94
95
96
97
98
99
100
101
102
103
105
106
107
113
113
114
114
115
115
116
117
118
119
120
120
121
122
123
124
124
125
126
Позиция на иллюстрации Заводской номер детали Название детали
1 D28980849 FILTER
2 D28980923 SHUTTER
3 D28981508 GRATE
4 D40740100 SCREW
5 D43385100 SCREW
6 D28980855 LINING
7 D28981357 GRILLE
8 D28981998 PANEL
9 D28980554 RETAINER
10 D28980553 SHUTTER
11 D28980555 RING
12 D40740200 SCREW
13 D28980839 HOLDER
14 D45060001 LIGHT
15 D28980771 COVER
16 D28981507 CANOPY
17 D28980664 STIRRUP
18 D40400900 SETSCREW
19 D45749800 CAP
20 D45745100 WASHER
21 D20400466 WASHER
22 1441917X1 Locknut
23 D45745600 RIVET
24 D28085632 RADIO
24 D28080365 INSTRUCTION BOOK
24 D43429500 CLIP
24 D45000269 RADIO
24 D45086600 AERIAL LONG
24 D45090091 SPEAKER
24 D45086400 RADIO
25 D45090091 SPEAKER
26 D45050040 LIGHT SWITCH
27 D45050003 MAGNET
28 D45050040 LIGHT SWITCH
29 D45050017 SWITCH
30 D45050005 SWITCH
31 D45050018 SWITCH
32 D45050052 SWITCH
33 D45050051 SWITCH
34 D45050021 SWITCH
35 D45050022 SWITCH
36 D45050023 SWITCH
37 D45050041 SWITCH
38 D45050024 SWITCH
39 D45050049 SWITCH
40 D45050050 SWITCH
41 D28782337 INSERT
42 D28980928 FRAME
43 D28980436 PLATE
45 D45070024 SWITCH
46 D45070026 BUTTON
47 D45093000 THERMOSTAT
48 D45070025 ADJUSTER
49 D45070027 CABLE
50 D45070028 BRACKET
51 D28981536 PRINTER
51 D28981575 PRINTER
52 D28981535 COVER
53 D28980483 COVER
54 D43386900 GRIP
55 391148X1 SCREW
56 D28980772 HINGE
57 D20400404 WASHER
58 339230X1 Hex Cap Screw
59 D28981528 PLATE
60 D45059600 HAMMER
61 D43385100 SCREW
62 D45060024 ASHTRAY
63 D45060037 LIGHTER
64 D45745100 WASHER
65 390958X1 SCREW
66 D45749800 CAP
67 D28981042 SUSPENSION
68 D28980764 SUSPENSION
70 D28986170 TERMINAL
71 D28981328 FITTING
72 D28981330 THREADED PART
73 D28981331 WASHER
74 D28981332 CLAMP
75 D28980501 FITTING
76 D28981360 ROD
87 D28980775 PANEL
88 D28980665 RETAINER
89 D45060031 SUPPORT
90 D28980977 GASKET
91 D28980976 GASKET
94 D28981509 PLATE
95 D45010063 PAPER
96 D45010062 RIBBON
97 D45745300 PLUG
98 D28981143 SUPPORT
99 D49189000 DECAL
100 D20400404 WASHER
101 D28981510 PLATE
102 D28981511 PLATE
103 D49187900 DECAL
105 D40741200 SCREW
106 D43407400 SEAL
107 D01906800 WIRE
113 D45090093 PLATE
114 D40740000 SCREW
115 D43429500 CLIP
116 D40072200 SCREW
117 D28980748 BUSH
118 D43387500 LEVER
119 D40438800 SCREW
120 D41017500 LOCKNUT
121 D40689500 SCREW
122 D44900071 CLIP
123 D28085634 REVERSING CAMERA
124 D45000270 REVERSING CAMERA
124 D45000271 REVERSING CAMERA
125 D28985245 SUPPORT
126 D28985175 PLATE
127 D44900761 SWITCH
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
