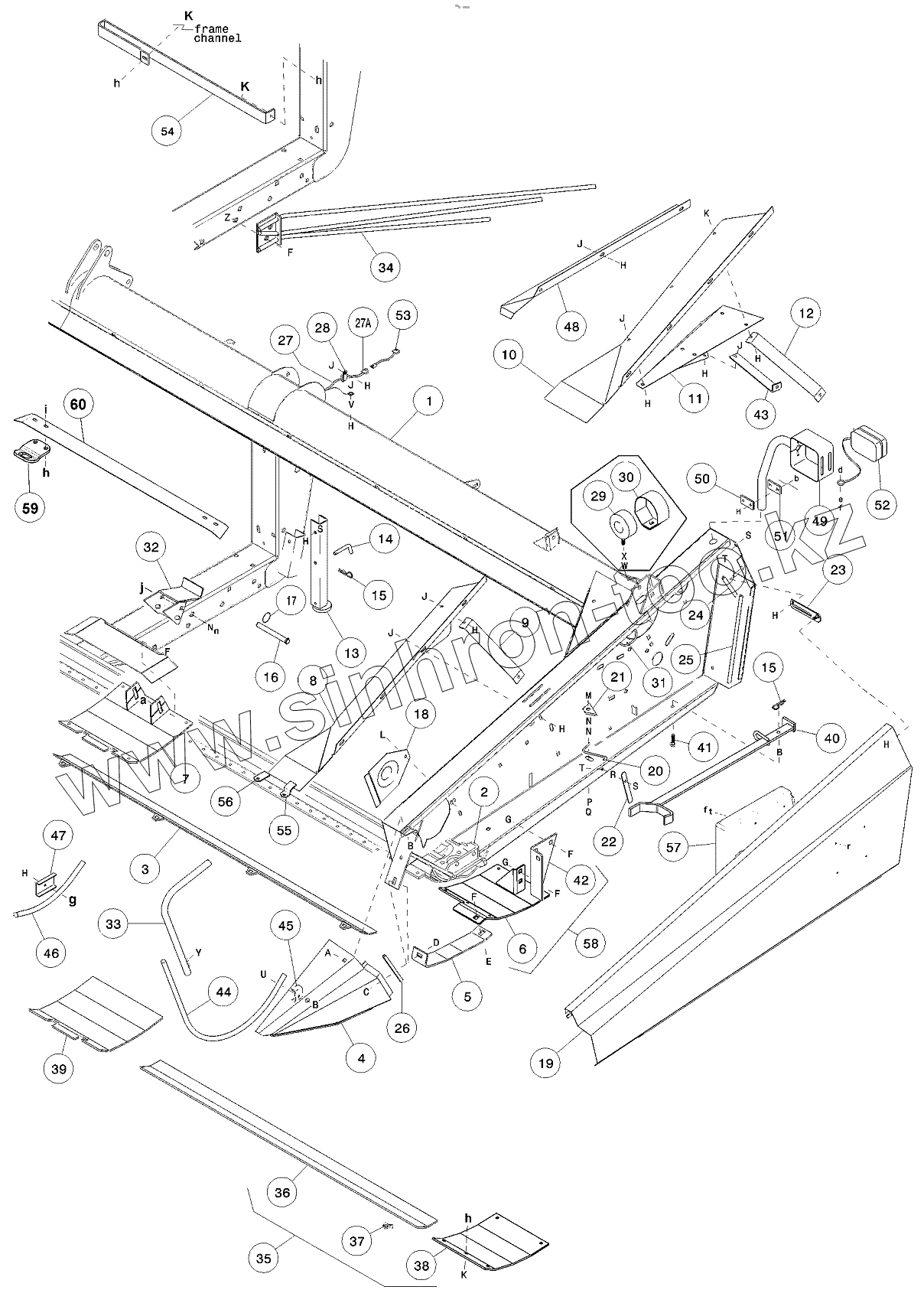

Каталог запасных частей к технике: MacDon Model 972 HARVEST HEADER. MAIN FRAME, LIGHTS & ATTACHMENTS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
6
6
7
8
8
9
10
10
11
11
11
11
12
13
14
15
15
16
17
18
19
19
19
19
20
21
22
23
23
24
25
25
26
27
27
27
27
27
27
27A
27A
28
29
30
31
32
33
34
34
35
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
48
49
49
50
51
52
52
53
54
55
56
57
58
59
60
A
B
B
B
C
D
E
F
F
F
F
F
G
G
H
H
H
H
H
H
H
H
H
H
H
H
J
J
J
J
J
J
J
J
K
K
K
K
L
M
N
N
N
P
Q
R
S
S
T
T
U
V
W
X
Y
Z
a
b
d
e
f
f
g
g
h
h
h
h
i
n
t
Позиция на иллюстрации Заводской номер детали Название детали
1 REF PUMP – triple gear
1 113227 Cutterbar
2 113299 Support
2 113300 Support
2 113301 Support
3 102413 Plate
3 102413 Plate
3 102413 Plate
3 117070 Plate
3 102412 Plate
3 102412 Plate
3 102412 Plate
3 102412 Plate
3 102411 Plate
3 102411 Plate
3 102414 Plate
3 113844 Plate
3 102410 Plate
4 113094 Divider
4 113395 Divider
4 113402 Divider
5 102013 Shoe
6 102336 Shoe
6 102337 Shoe
7 101920 Shoe
8 118144 Deflector
8 118156 Deflector
9 102184 Brace
10 118139 Deflector
10 118155 Deflector
11 102181 Extension
11 103381 Extension
11 102182 Extension
11 103382 Extension
12 102183 Brace
13 43648 Stand
14 13747 ПАЛЕЦ
15 13125 PIN - HAIR
16 100765 Pin
17 118137 КОЛЬЦО
18 102509 ЩИТОК
19 102951 Shield
19 158763 Shield
19 102332 Shield
19 113066 Shield
20 102173 Spring
21 102180 Support
22 102489 Handle
23 47876 Bar
23 47877 Bar
24 100586 Edge trim
25 100588 Edge trim
25 102348 Edge trim
26 101137 Edge trim
27 101064 Harness
27 101066 Harness
27 102260 Harness
27 101062 Harness
27 102262 Harness
27 101069 Harness
27A 31062 CONNECTOR KIT
27A 112443 CONNECTOR KIT
28 43848 CLAMP
29 16539 Light
30 43711 Guard
31 30542 FASTENER-BLACK NYLON CLIP
32 117036 Adapter
33 101301 Extension
34 102848 Rod
34 102847 Rod
35 B 2688 Kit
35 B 2866 Kit
36 102964 Wear strip
37 102968 Lug
38 102965 Shoe
39 102967 Shoe
40 125042 Tool
41 103332 Bolt
42 103400 Support
42 103401 Support
43 103490 Support
44 113030 Divider rod
45 113032 Clamp
46 113090 Divider rod
47 113320 Clamp
48 113302 Deflector
48 113303 Deflector
49 113471 Support
49 113473 Support
50 113474 Plate
51 113475 Plate
52 113511 Light
52 113511 Bulb
53 REF PUMP – triple gear
54 113673 Rack
55 118142 Retainer
56 118141 Retainer
57 118234 BOX
58 B 2767 Kit
59 153039 Retainer
60 158710 Deflector
A 21868 BOLT – round head square neck 1/2 NC X 10 GR 5 ZP
B 21383 NUT - FLANGE 500-13UNC (SERR FACE)
C 21469 BOLT
D 50186 NUT - FLANGE LOCK SM FACE DT 0500-13UNC GR5
E 18524 БОЛТ
F 50225 Гайка
G 103562 БОЛТ
H 30228 Гайка
J 21863 BOLT-RHSSN 3/8 NC X 075 LG GR 5 ZP
K 19965 BOLT - RHSN 3/8 NC X 10 GR 5 ZP
L 30693 БОЛТ
M 21594 БОЛТ
N 18639 WASHER-LOCK
P 18600 WASHER - SAE FLAT 21/32 ID X 1 5/16 IN OD ZP
Q 18666 NUT-HEX LOCK DT 5/8-11 UNC ZP
R 18637 WASHER - REG LOCK 3/8 IN NOM ID ZP
S 21567 BOLT -HEX HD 375-16UNC X 075 LG
T 18669 NUT-HEX LOCK DT 3/8-16 UNC ZP
U 30515 BOLT - RHSN 1/2 NC X 175 LG GR 5 ZP
V 30598 Washer
W 6771 Nut
X 18638 WASHER-LOCK
Y 21248 SCREW
Z 18523 БОЛТ
a 117015 БОЛТ
b 21478 БОЛТ
d 21572 БОЛТ
e 113757 Washer
f 18724 NUT-HEX LOCK DT 1/4-20 UNC ZP
g 50197 Болт
g 21484 BOLT - RHSN 3/8 NC X 15 LG GR 5 ZP
h 21452 NUT - FLANGE (SERR FACE) 375-16UNC
i 105137 ВИНТ
j 117028 Bolt
n 18592 NUT
r 30242 BOLT - RHSN 1/4 NC X 0625 GR 5 ZP
t 18596 WASHER - SAE FLAT 9/32 ID X 5/8 IN OD ZP
