Каталог запасных частей к технике: MacDon Model 972 HARVEST HEADER. DRAPER CARRIER DECKS & SHIFT GROUP
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
3
3
4
4
5
6
7
8
8
9
9
10
11
12
13
13
13
13
14
15
16
17
18
19
19
20
A
A
A
A
B
B
B
B
B
B
B
B
B
C
C
C
C
D
E
E
E
F
G
H
H
J
K
L
M
N
P
R
S
T
U
V
V
W
W

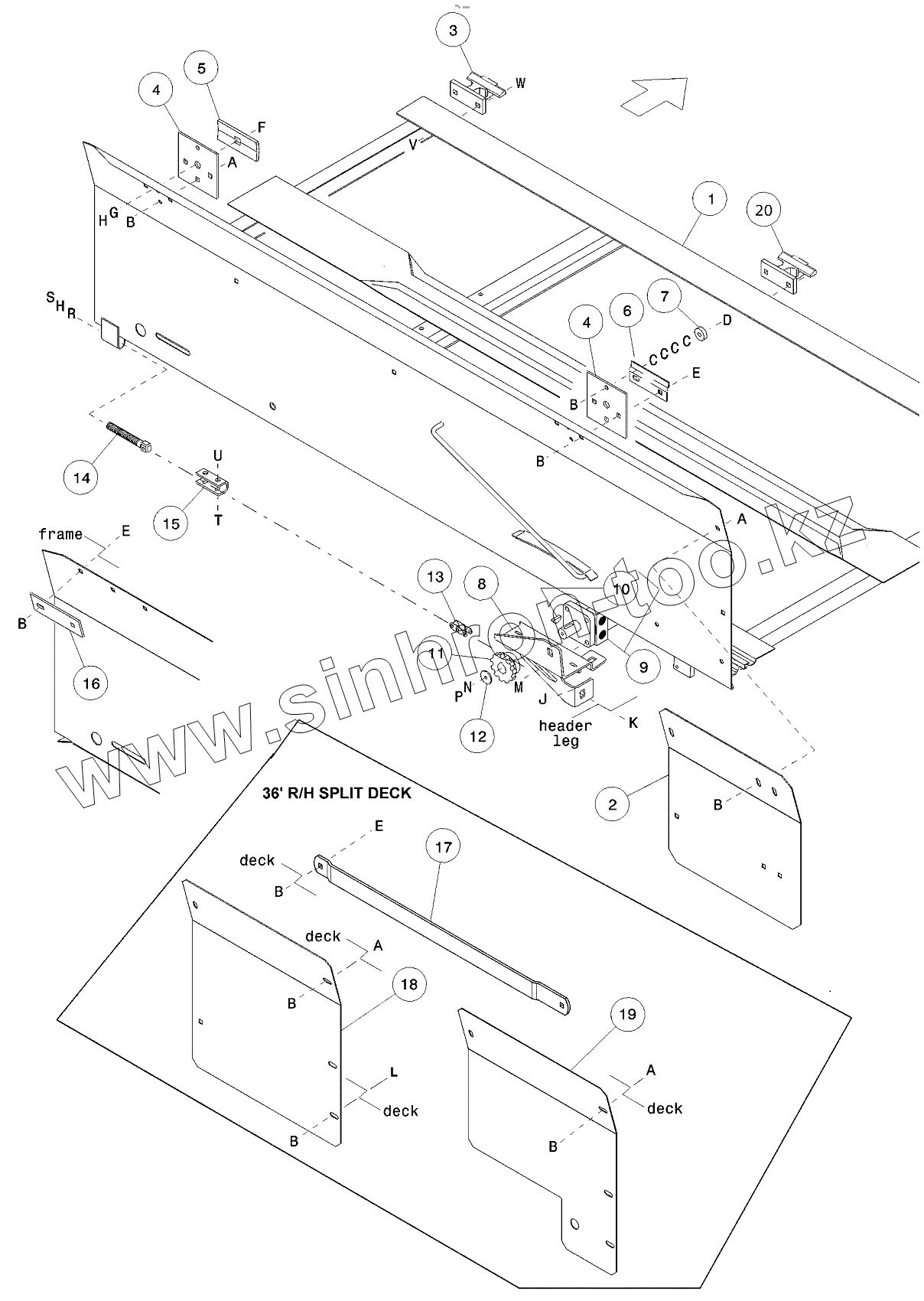

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 102172 | Carrier deck | |
| 1 | 102934 | Carrier deck | |
| 1 | 102935 | Carrier deck | |
| 1 | 102936 | Carrier deck | |
| 1 | 102937 | Carrier deck | |
| 1 | 102166 | Carrier deck | |
| 1 | 102167 | Carrier deck | |
| 1 | 102165 | Carrier deck | |
| 1 | 102938 | Carrier deck | |
| 1 | 102939 | Carrier deck | |
| 1 | 102940 | Carrier deck | |
| 1 | 102941 | Carrier deck | |
| 1 | 102162 | Carrier deck | |
| 1 | 113087 | Carrier deck | |
| 2 | 101456 | Extension | |
| 2 | 101495 | Extension | |
| 3 | 100263 | Support | |
| 3 | 151639 | Support | |
| 4 | 100314 | Plate | |
| 5 | 100163 | Clamp | |
| 6 | 43582 | Guide | |
| 7 | 18867 | ПОДШИПНИК | |
| 8 | 102942 | Support | |
| 8 | 102943 | Support | |
| 9 | 43907 | Motor | |
| 9 | 123314 | Seal kit | |
| 10 | 2149 | Шпонка сегментная | |
| 11 | 26847 | Sprocket | |
| 12 | 43219 | Washer | |
| 13 | 43466 | Chain | |
| 13 | 102189 | Chain | |
| 13 | 101125 | Chain | |
| 13 | 6636 | Звено | |
| 14 | 102602 | СТЕРЖЕНЬ | |
| 15 | 100581 | ВЕРХ | |
| 16 | 103453 | Bar | |
| 17 | 113541 | Bar | |
| 18 | 113542 | Extension | |
| 19 | 113668 | Extension | |
| 19 | B2687 | Kit | |
| 20 | 129913 | ОПОРА | |
| A | 21863 | BOLT-RHSSN 3/8 NC X 075 LG GR 5 ZP | |
| B | 30228 | Гайка | |
| C | 18598 | Шайба | |
| D | 21264 | BOLT-HH 3/8 NC X 125 LG GR 5 ZP | |
| E | 19965 | BOLT - RHSN 3/8 NC X 10 GR 5 ZP | |
| F | 18523 | БОЛТ | |
| G | 18639 | WASHER-LOCK | |
| H | 18592 | NUT | |
| J | 21066 | BOLT - RHSN 1/2 NC X 1 GR 5 ZP | |
| K | 50186 | NUT - FLANGE LOCK SM FACE DT 0500-13UNC GR5 | |
| L | 21567 | BOLT -HEX HD 375-16UNC X 075 LG | |
| M | 21821 | BOLT - HH FLG (SERR FACE) 3/8 NC X 075 GR 5 ZP | |
| N | 18635 | WASHER - REG LOCK 1/4 IN NOM ID ZP | |
| P | 21566 | BOLT - HEX HD 1/4 NC X 075 LG GR 5 ZP | |
| R | 18600 | WASHER - SAE FLAT 21/32 ID X 1 5/16 IN OD ZP | |
| S | 21345 | ГАЙКА | |
| T | 30942 | BOLT - HH 1/4 NC X 125 LG GR 5 ZP | |
| U | 21455 | NUT - FLG (SERR FACE) 1/4 NC GR 5 ZP | |
| V | 19965 | BOLT - RHSN 3/8 NC X 10 GR 5 ZP | |
| V | 21066 | BOLT - RHSN 1/2 NC X 1 GR 5 ZP | |
| W | 30228 | Гайка | |
| W | 18697 | NUT - HEX LOCK DT 500-13UNC |
