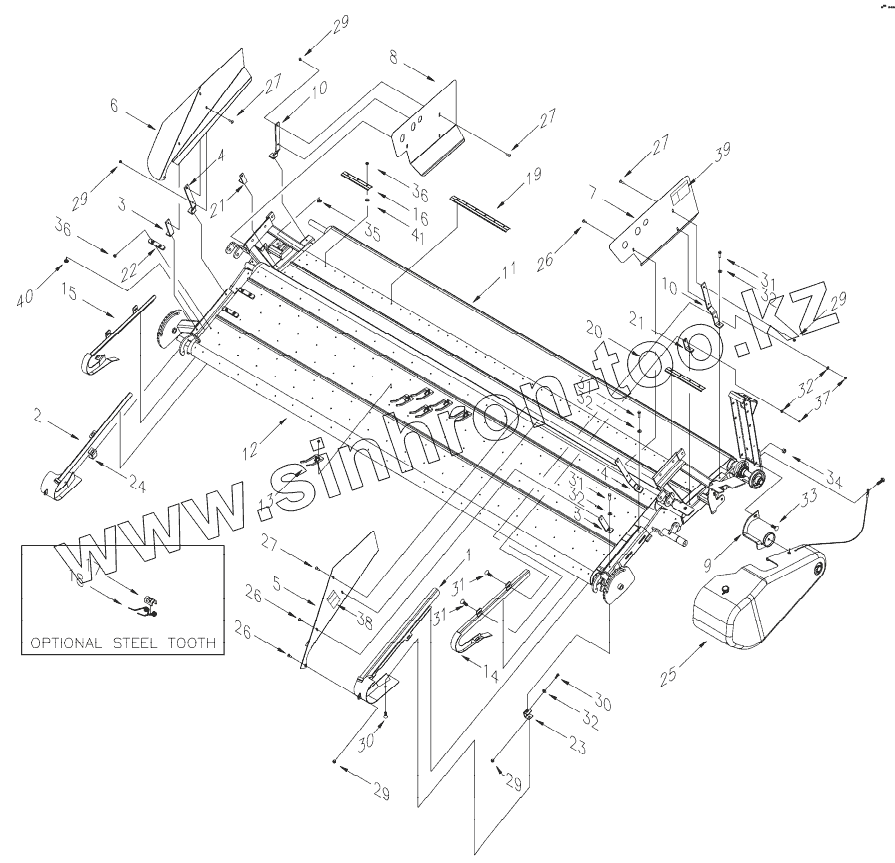

Каталог запасных частей к технике: MacDon-PW7. DRAPER AND SHIELD ASSEMBLY (12’ SMALL SEED)
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
26
27
27
27
27
29
29
29
29
29
30
30
31
31
31
31
32
32
32
32
32
33
33
34
35
36
36
37
38
38
39
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 135248 | 135248 | ГАЙКА | |
| 184494 | 184494 | BOLT | |
| 1 | 181066 | GUIDE | |
| 2 | 181072 | GUIDE | |
| 3 | 181071 | BRACKET | |
| 4 | 181068 | BRACKET | |
| 5 | 181484 | WINDGUARD | |
| 5 | 181482 | WINDGUARD | |
| 6 | 181483 | WINDGUARD | |
| 6 | 181485 | WINDGUARD | |
| 7 | 190793 | WINDGUARD | |
| 7 | 190855 | WINDGUARD | |
| 8 | 190795 | WINDGUARD | |
| 8 | 190856 | WINDGUARD | |
| 9 | 181092 | BRACKET WELDMENT | |
| 10 | 181091 | BRACKET | |
| 11 | 184222 | DRAPER | |
| 12 | 184221 | DRAPER | |
| 13 | 181047 | TOOTH | |
| 14 | 181070 | GUIDE | |
| 15 | 181067 | GUIDE | |
| 16 | 180118 | EDGE PROTECTOR | |
| 17 | 191039 | RETAINER | |
| 18 | 191040 | TOOTH | |
| 19 | 180117 | EDGE PROTECTOR | |
| 20 | 180119 | EDGE PROTECTOR | |
| 21 | 181074 | BRACKET | |
| 22 | 181065 | GUIDE | |
| 23 | 181069 | BRACKET | |
| 24 | 181073 | BRACKET | |
| 25 | SHIELD | SHIELD | |
| 26 | 184510 | 5/16X3/4 UNC TRUSS BOLT | |
| 27 | 184511 | SCREW | |
| 29 | 30280 | Гайка | |
| 30 | 21567 | BOLT -HEX HD 375-16UNC X 075 LG | |
| 31 | 20077 | BOLT - HEX HD 3/8 NC X 10 LG GR 5 ZP | |
| 32 | 184584 | SPRING LOCK WASHER | |
| 33 | 21868 | BOLT – round head square neck 1/2 NC X 10 GR 5 ZP | |
| 34 | 18591 | NUT - HEX 1/2 - 13 UNC GR 5 ZP | |
| 35 | 184499 | BOLT | |
| 36 | 21455 | NUT - FLG (SERR FACE) 1/4 NC GR 5 ZP | |
| 37 | 18590 | NUT - HEX 3/8 - 16 UNC GR 5 ZP | |
| 38 | 184393 | DECAL | |
| 38 | 184386 | DECAL | |
| 39 | 184392 | DECAL | |
| 39 | 184384 | DECAL | |
| 40 | 184498 | BOLT | |
| 41 | 184721 | WASHER |
