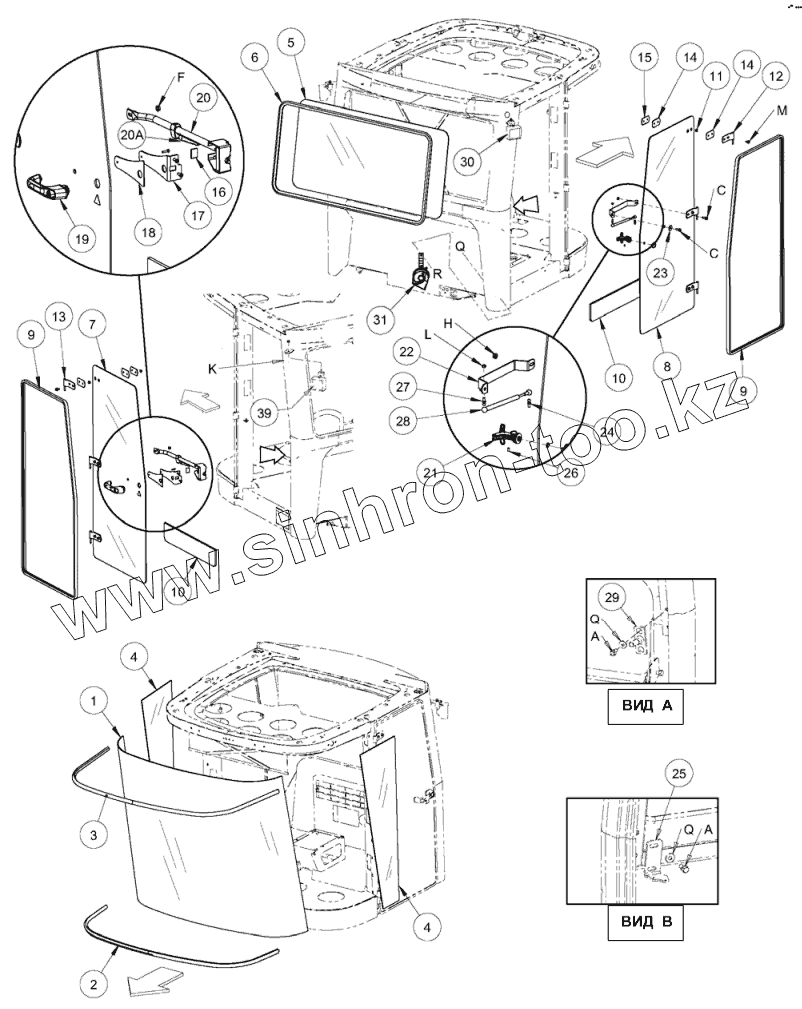

Каталог запасных частей к технике: MacDon-M105. Двери и окна
1
2
2
3
4
4
5
6
7
8
9
9
10
10
11
12
13
14
14
15
16
17
18
19
20
20A
21
22
23
24
25
26
27
28
29
30
31
A
A
C
C
F
H
K
L
M
Q
Q
Q
R
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 109323 | WINDOW – FRONT | |
| 2 | 109721 | SEAL - WINDOW BOTTOM | |
| 3 | 109536 | SEAL - WINDOW TOP | |
| 4 | 109324 | WINDOW – SIDE | |
| 5 | 160135 | WINDOW – REAR | |
| 6 | 160136 | SEAL - WINDOW REAR | |
| 7 | 109738 | DOOR – GLASS | |
| 8 | 160191 | WINDOW - RIGHT HINGED | |
| 9 | 109552 | SEAL – DOOR | |
| 10 | 109732 | INSULATOR – DOOR | |
| 11 | 109585 | SPACER | |
| 12 | 109665 | HINGE - RIGHT DOOR | |
| 13 | 109604 | HINGE - LEFT DOOR | |
| 14 | 109598 | GASKET – HINGE | |
| 15 | 109601 | BAR - HINGE BACKING | |
| 16 | 109739 | BAR - CENTER HINGE BACKING | |
| 17 | 109822 | SUPPORT-LEFT LATCH | |
| 18 | 109745 | GASKET - DOOR LATCH | |
| 19 | 109743 | HANDLE - OUTSIDE CAB | |
| 109701 | 109701 | KEY | |
| 20 | 160127 | LATCH-LH CAB DOOR | |
| 20A | 160413 | ЗАЩЕЛКА ДВЕРИ | |
| 21 | 160188 | LATCH-WINDOW (HOLD OPEN) | |
| 22 | 160197 | HANDLE-WINDOW | |
| 23 | 160202 | WASHER | |
| 24 | 110446 | STUD – BALL | |
| 25 | 160192 | ANCHOR-WINDOW LATCH | |
| 26 | 16061 | PIN-SPRING 3/16 DIA X 1/2 LG | |
| 27 | 110446 | STUD – BALL | |
| 28 | 109603 | SPRING – GAS | |
| 29 | 109362 | CATCH WELDMENT | |
| 30 | 109717 | LIGHT – WORK | |
| 109113 | 109113 | BULB - 12V, 55W | |
| 31 | 160373 | ЗВУКОВОЙ СИГНАЛ | |
| A | 21821 | BOLT - HH FLG (SERR FACE) 3/8 NC X 075 GR 5 ZP | |
| B | 135301 | BOLT - HH M6 X 1 X 25 LG ZP | |
| C | 30936 | BOLT -HH FLG (SERR FACE) 3/8 NC X 125 GR 5 ZP | |
| E | 112973 | BOLT-U | |
| F | 30228 | Гайка | |
| G | 21455 | NUT - FLG (SERR FACE) 1/4 NC GR 5 ZP | |
| H | 18588 | NUT - HEX 1/4 - 20 UNC GR 5 ZP | |
| J | 18590 | NUT - HEX 3/8 - 16 UNC GR 5 ZP | |
| K | 50101 | NUT-FLG LOCK PREV TORQUE SM FACE M10-15 | |
| L | 18690 | NUT-HEX LOCK DT 5/16-18 UNC ZP | |
| M | 101897 | SCREW - HEX WASH HD THD ROLLING 3/8 NC X 3/4 | |
| N | 16652 | WASHER - FLAT | |
| P | 18635 | WASHER - REG LOCK 1/4 IN NOM ID ZP | |
| Q | 30278 | BOLT -HH FLG (SERR FACE) 5/16 NC X 075 GR 5 ZP | |
| R | 30280 | Гайка | |
| B4866 | B4866 | WINDOW SHADE KIT – INCLUDES ITEMS 23 AND 24 | |
| 109834 | 109834 | SHADE – FRONT WINDOW | |
| 109778 | 109778 | SHADE – REAR WINDOW |
