Stubble Lights (Option)
Tine Tube Reinforcing Kit (Option)
Upper Cross Auger (Option)
Upper Cross Auger (High Capacity), (Option)
Vertical Knife - Standart Reel Arm (2018 and Prior), (Option)
Vertical Knife - Standart Reel Arm, Left End (2019), (Option)
Vertical Knife - Standart Reel Arm, Right End (2019), (Option)
Vertical Knife Hose Kits (Option)
Vertical Knife Assembly - Service Parts
1
1
2
3
A
A
B
B
C
C
D
D
E
E
F
F

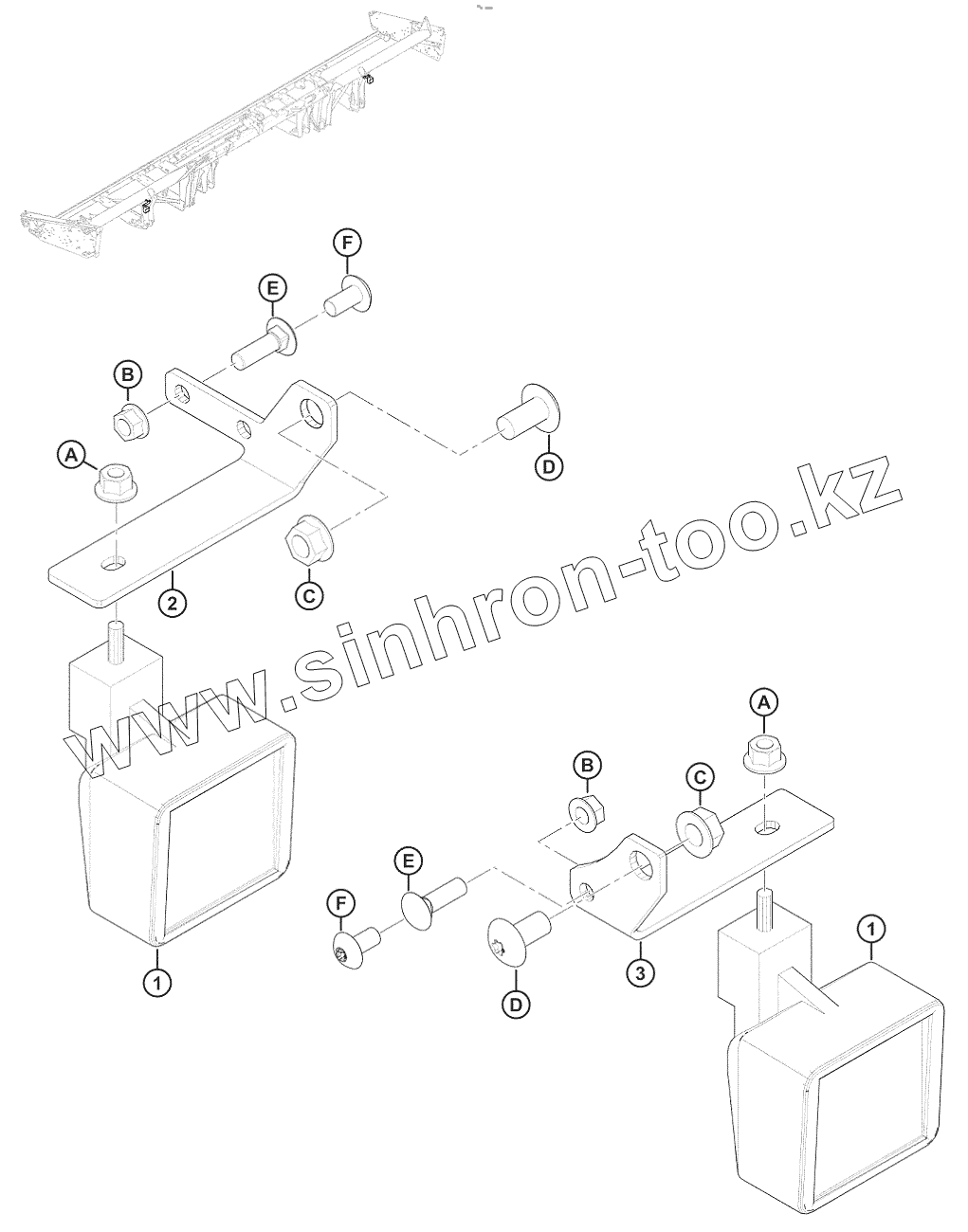

Позиция на иллюстрации
Заводской номер детали
Название детали
B6634
B6634
Kit
1
109717
LIGHT – WORK
2
304021
Support
3
245450
Support
A
50101
NUT-FLG LOCK PREV TORQUE SM FACE M10-15
B
30228
Гайка
C
50186
NUT - FLANGE LOCK SM FACE DT 0500-13UNC GR5
D
105136
ВИНТ
E
19966
BOLT - RHSN 3/8 NC X 125 LG GR 5 ZP
F
135157
ВИНТ
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
