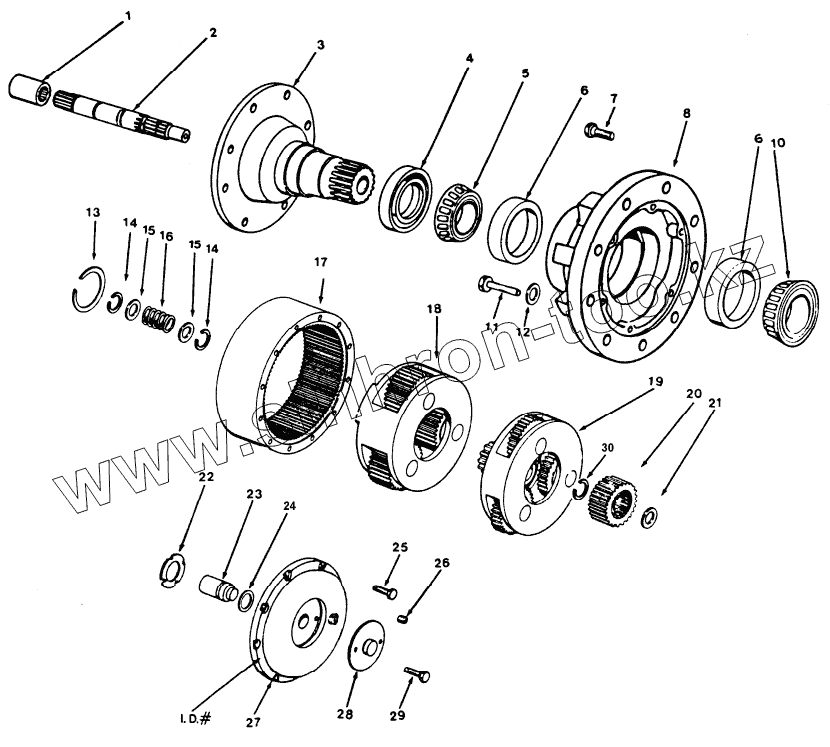

Каталог запасных частей к технике: MacDon-9250. MODEL 6 POWER WHEEL SINGLE SPEED UNITS
1
2
3
4
5
6
6
7
8
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 42001 | 42001 | DRIVE | |
| 111090 | 111090 | COVER | |
| 21526 | 21526 | БОЛТ | |
| KIT | KIT | NOTE | |
| 137 - 135 inch - Pink | 137 - 135 inch - Pink | KIT | |
| 132 - 130 inch - Dark Blue | 132 - 130 inch - Dark Blue | KIT | |
| 127 - 125 inch - Brown | 127 - 125 inch - Brown | KIT | |
| 122 - 120 inch - Plain | 122 - 120 inch - Plain | KIT | |
| 117 - 115 inch - Dark Green | 117 - 115 inch - Dark Green | KIT | |
| 112 - 110 inch - Grey | 112 - 110 inch - Grey | KIT | |
| 107 - 105 inch - Orange | 107 - 105 inch - Orange | KIT | |
| 1 | 30181 | COUPLING | |
| 2 | 30182 | SHAFT | |
| 3 | 30183 | SPINDLE | |
| 4 | 30184 | SEAL | |
| 5 | 30185 | BEARING | |
| 6 | 30186 | BEARING | |
| 7 | 21357 | BOLT - WHEEL (PRESS-IN) 9/16 NF X 53 LG | |
| 8 | 42769 | HUB | |
| 10 | 30189 | BEARING | |
| 11 | 30190 | BOLT | |
| 12 | 30191 | WASHER-HARDENED | |
| 13 | 30206 | KIT | |
| 14 | 42765 | RING | |
| 15 | 30193 | WASHER | |
| 16 | 30194 | SPRING | |
| 17 | 42766 | GEAR | |
| 18 | 30196 | CARRIER ASSEMBLY | |
| 19 | 42767 | CARRIER ASSEMBLY | |
| 20 | 42768 | GEAR | |
| 21 | 30199 | WASHER | |
| 22 | 30200 | WASHER-THRUST | |
| 23 | 30201 | PLUNGER | |
| 24 | 21873 | O-RING | |
| 25 | 21087 | BOLT | |
| 26 | 30203 | PLUG - MAGNETIC PIPE SQ SOCKET | |
| 27 | 30204 | COVER | |
| 28 | 30205 | COVER-DISENGAGE | |
| 29 | 21588 | BOLT | |
| 30 | 30192 | RING |
