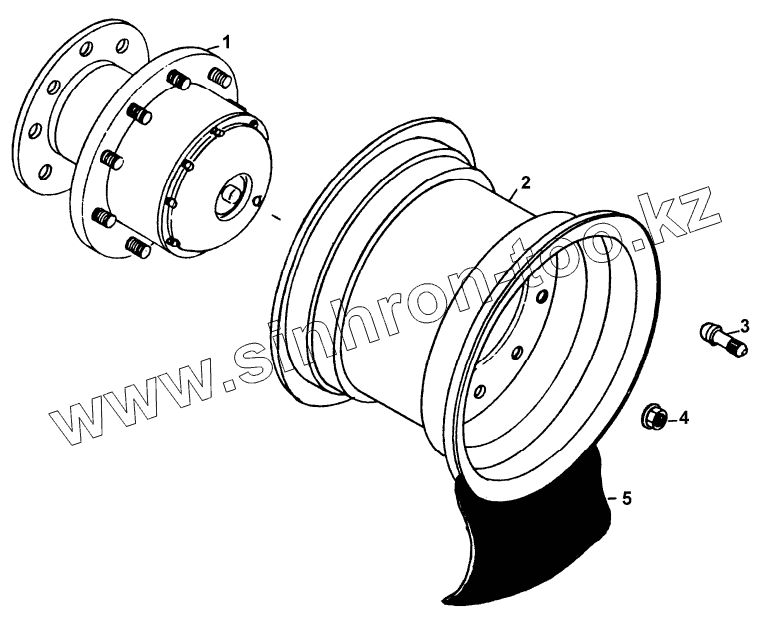

Каталог запасных частей к технике: MacDon-9250. DRIVE WHEELS AND TIRES

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано MacDon-9250 (2010) MacDon-CA25 (2016) MacDon-D50/D60/FD70 (2010) MacDon-D65 (2016) MacDon-FD75 (2019) MacDon-M100 (2008) MacDon-M105 (2011) MacDon-M155 (2010) MacDon-PW7 (2010) Model 972 HARVEST HEADER (2019) М 215908 B

Схема > Не выбрано CAB FRAME, SEALS, GROMMETS AND MOUNTS CAB UPHOLSTERY AND INSULATORS CAB DOOR AND CAB RIGHT SIDE PANEL CAB ROOF WINDOWS FOOTREST AND SIDE CONSOLE PANEL STEERING COLUMN INSTRUMENT PANEL SIDE CONSOLE REEL AND CONVEYOR SPEED CONTROL GROUND SPEED LEVER THROTTLE CONTROL – CUMMINS ENGINE TRACTORS THROTTLE CONTROL – ISUZU ENGINE TRACTORS CAB ELECTRICAL AND WIPER CAB SEATS CAB AIR CONDITIONING AND BLOWER GROUP AIR CONDITIONING - ENGINE GROUP HEATER – CUMMINS ENGINE TRACTOR HEATER – ISUZU ENGINE TRACTOR MAIN FRAME AND COVERS LIFT LINKAGE WALKING BEAM AND PIVOT REAR WEIGHT PACKAGE TRACTOR ELECTRICAL ENGINE ASSEMBLY – CUMMINS ENGINE TRACTOR UNITS ENGINE ASSEMBLY – ISUZU ENGINE TRACTOR UNITS ALTERNATOR MOUNTING– CUMMINS ENGINE TRACTOR UNITS ENGINE SUPERSTRUCTURE FUEL SYSTEM ENGINE AIR INTAKE – CUMMINS ENGINE TRACTOR UNITS ENGINE AIR INTAKE – ISUZU ENGINE TRACTOR UNITS AND CUMMINS TRACTOR UNITS SN 17461 and ABOVE ENGINE COOLING CUMMINS ENGINE TRACTOR UNITS AIR INTAKE SCREEN CLEANER HEADER DRIVE Header Drive - BEVEL GEARBOX Header Drive - BEVEL GEARBOX 22 Production and up DRIVELINE (Engine to Bevel Gearbox) HEADER DRIVE PULLEY DRIVELINE SERIAL NUMBER 13824 and below DRIVELINE SERIAL NUMBER 13825 and above NEUTRAL INTERLOCK AND PINTLE ARMS STEERING AND GROUND SPEED HYDRAULICS: HEADER DRIVE HYDRAULICS: CYLINDER CONTROL Header Lift Cylinder 3.0" BORE SEAL KIT Header Lift Cylinder 2.5" BORE SEAL KIT HYDRAULICS: TRACTION DRIVE HYDRAULICS: TRIPLE PUMP HYDRAULICS: DOUBLE GEAR PUMP HYDRAULICS: TWO-SPEED WHEEL MOTOR TWO SPEED DRIVE: WHEEL MOTOR ASSEMBLY HYDRAULICS: SINGLE SPEED WHEEL MOTOR SINGLE SPEED DRIVE: WHEEL MOTOR ASSEMBLY MODEL 6 POWER WHEEL SINGLE SPEED UNITS MODEL 7 POWER WHEEL 935/495/295/815 TWO-SPEED UNITS MODEL 8B POWER WHEEL 9352/4952/2952/8152 TWO-SPEED UNITS MODEL RR POWER HUB 9352i/9352c, 4952i/4952c, 2952i/2952c, 8152i/8152c TWO-SPEED UNITS DRIVE WHEELS AND TIRES BRAKE ASSEMBLY – CUMMINS ENGINE TRACTORS (except xx52c models) BRAKE ASSEMBLY – XX52i AND XX52c TRACTORS 925/935, 494/495, 294/295, 814/815 TRACTOR 16.5 FORKED CASTERS 925/935, 494/495, 294/295, 814/815 TRACTOR 9.5 FORKED CASTERS 925/935, 494/495, 294/295, 814/815 TRACTOR FORMED CASTERS 9352/4952/2952/8152 (INCLUDING “i” AND “c” MODEL) TRACTORS FORKED CASTERS 9352/4952/2952/8152 (INCLUDING “i” AND “c” MODEL) TRACTORS FORMED CASTERS SAFETY DECALS INFORMATION DECALS AND REFLECTORS PRODUCT IDENTIFICATION DECALS OPTIONAL HYDRAULICS – HEADER ANGLE KIT OPTIONAL HYDRAULICS – FORE/AFT KIT VALVE MANIFOLDS

1

2

3

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
135003	135003		NUT
111251	111251		TIRE
111372	111372		TIRE
111206	111206		TIRE
111205	111205		TIRE
111203	111203		TIRE
112146	112146		TIRE
111145	111145		TIRE
111252	111252		TIRE
111179	111179		NUT - FLANGE SMOOTH FACE 5/8 NF GR 8 ZP
111795	111795		TIRE
112475	112475		STEM-VALVE (METAL)
111254	111254		TIRE
111373	111373		WHEEL
111223	111223		WHEEL
111222	111222		WHEEL
111207	111207		WHEEL
1	REF		PUMP – triple gear
2	111034		WHEEL
3	21153		STEM-TIRE VALVE ASSEMBLY #TR-415
4	21358		NUT- WHEEL STUD 9/16 NF X 90°
5	111144		TIRE
