Каталог запасных частей к технике: Lovol TS-4A504-038K. TC02440090000K SEAT INSTALLATION ASSEMBLY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано TB-604 TD-1304 TD-904 TE-354 TE-404 TS-4A504-038K

Схема > Не выбрано A498BT-38H ENGINE ASSY-1 A498BT-38H ENGINE ASSY-2 (CRANKSHAFT, FLYWHEEL) A498BT-38H ENGINE ASSY-3 (PISTON RING) A498BT-38H ENGINE ASSY-4 (CAMSHAFT) A498BT-38H ENGINE ASSY-5 (AIR) A498BT-38H ENGINE ASSY-6 (HYDRAULIC PUMP) A498BT-38H ENGINE ASSY-7 (FLYWHEEL HOUSING) A498BT-38H ENGINE ASSY-8 (OIL INJECTION PUMP) A498BT-38H ENGINE ASSY-9 (FAN, WATER PUMP) A498BT-38H ENGINE ASSY-10 (GENERATOR) A498BT-38H ENGINE ASSY-11 (MAIN OIL SUMP) A498BT-38H ENGINE ASSY-12 (OIL PUMP) A498BT-38H ENGINE ASSY-13 (ENGINE HEAD) A498BT-38H ENGINE ASSY-14 (CYLINDER COVER) A498BT-38H ENGINE ASSY-15 (THERMOSTAT) A498BT-38H ENGINE ASSY-16 (AIR INLET PIPE) A498BT-38H ENGINE ASSY-17 (EXHAUST PIPE) A498BT-38H ENGINE ASSY-18 (OIL FILTER) FT500A.11.001 AIR FILTER SYSTEM ASSEMBLY TC02131080000K COOLING SYSTEM ASSEMBLY-1 TC02131080000K COOLING SYSTEM ASSEMBLY-2 TS04132030000K RADIATOR BACKING BOARD INSTALLATION ASSEMBLY TS04201010000 HAND THROTTLE CONTROL ASSEMBLY TS04202010000 FOOT THROTTLE CONTROL ASSEMBLY TS04203010000 PULL WIRE ASSEMBLY TB550.211A CLUTCH SUBASSEMBLY TB604.212A CLUTCH CONTROL ASSEMBLY TC02220090000K EXHAUST SYSTEM ASSEMBLY-1 TC02220090000K EXHAUST SYSTEM ASSEMBLY-2 TC02311220000 FRONT DRIVING AXLE ASSEMBLY-1 TC02311220000 FRONT DRIVING AXLE ASSEMBLY-2 TC02311220000 FRONT DRIVING AXLE ASSEMBLY-3 TC02311220000 FRONT DRIVING AXLE ASSEMBLY-4 TC02311220000 FRONT DRIVING AXLE ASSEMBLY-5 TC02311220000 FRONT DRIVING AXLE ASSEMBLY-6 TB554.312 FRONT BRACKET ASSEMBLY TC02320010000K FRONT DRIVING WHEEL ASSEMBLY FT550.34F.001 REAR DRIVING WHEEL ASSEMBLY TB604.371 GEARBOX HOUSING ASSEMBLY TB604.372T MAIN GEARSHIFT ASSEMBLY-1 TB604.372T MAIN GEARSHIFT ASSEMBLY-2 TB604.373T AUXILIARY GEARSHIFT ASSEMBLY TS04374010000 GEARBOX CONTROL MECHANISM ASSEMBLY-1 TS04374010000 GEARBOX CONTROL MECHANISM ASSEMBLY-2 TS04374010000 GEARBOX CONTROL MECHANISM ASSEMBLY-3 TS04374010000 GEARBOX CONTROL MECHANISM ASSEMBLY-4 TB604.375B BREATH ASSEMBLY TB554.381 SHUTTLE SHIFT ASSEMBLY TB504.382 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1 TB504.382 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2 TS04383010000 DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY TB604.384 REAR AXLE HOUSING ASSEMBLY TS04385010000 SHUTTLE SHIFT CONTROL MECHANISM TB450.391 LEFT FINAL TRANSMISSION ASSEMBLY TB450.392 RIGHT FINAL TRANSMISSION ASSEMBLY TC04401080000 REDIRECTOR OR STEERING COLUMN ASSEMBLY TC02402740000K FULL HYDRAULIC STEERING PIPE ASSEMBLY-1 TC02402740000K FULL HYDRAULIC STEERING PIPE ASSEMBLY-2 TB550.411A PTO GEAR ASSEMBLY TB550.412A PTO SHAFT ASSEMBLY TS04413010000 PTO CONTROL ASSEMBLY TB554.421E TRANSFER CASE ASSEMBLY TB454.422 TRANSFER CASE TRANSMISSION ASSEMBLY-1 TB454.422 TRANSFER CASE TRANSMISSION ASSEMBLY-2 TS04423010000 TRANSFER CASE CONTROL ASSEMBLY TB504.431B LEFT BRAKE ASSEMBLY TB504.432B RIGHT BRAKE ASSEMBLY TS04433010000 BRAKE SYSTEM CONTROL ASSEMBLY-1 TS04433010000 BRAKE SYSTEM CONTROL ASSEMBLY-2 TS04433010000 BRAKE SYSTEM CONTROL ASSEMBLY-3 TC02440090000K SEAT INSTALLATION ASSEMBLY TS04452010000 FLOOR ASSEMBLY-1 TS04452010000 FLOOR ASSEMBLY-2 TS04452010000 FLOOR ASSEMBLY-3 TS04453020000 UPHOLSTERY ASSEMBLY TS04454010000 CONTROLLING COVER PLATE ASSEMBLY TS04455020000 BACK REAR MUD GUARD DECORATION PART TS04456020000 DASHBOARD ASSEMBLY TS04457010000 FRONT CONNECTING ASSEMBLY TS04458010000 REAR CONNECTING ASSEMBLY TS04461010000 SAFETY FRAME ASSEMBLY TS04471020000 BONNET ASSEMBLY-1 TS04471020000 BONNET ASSEMBLY-2 TS04471020000 BONNET ASSEMBLY-3 TS04473010000 BONNET LOCKING DEVICE ASSEMBLY TS04475030000 BONNET SEAL INSTALLATION ASSEMBLY TS04481090000K ENGINE HARNESS INSTALLATION ASSEMBLY TS04482010000K BODY HARNESS INSTALLATION ASSEMBLY TS04483020000K FRONT LAMP HARNESS INSTALLATION ASSEMBLY TS04484070000K REAR LAMP HARNESS INSTALLATION ASSEMBLY TS04485010000 BATTERY INSTALLATION ASSEMBLY TS04487010000 COMBINED INSTRUMENT ASSEMBLY TB550.489B PREHEATING EQUIPMENT ASSEMBLY TS04490010000 TOOL BOX ASSEMBLY TS04501010000 OIL TANK INSTALLATION ASSEMBLY-1 TS04501010000 OIL TANK INSTALLATION ASSEMBLY-2 TS04503010000 OIL CONVEYING PIPE ASSEMBLY TC02553070000K HYDRAULIC AUXILIARY OIL TANK ASSEMBLY TB400.53D TOW MECHANISM ASSEMBLY TC02551250000K LIFTER INSTALLATION ASSEMBLY-1 TC02551250000K LIFTER INSTALLATION ASSEMBLY-2 TC02551250000K LIFTER INSTALLATION ASSEMBLY-3 TS04552010000 LIFTER OPERATION ASSEMBLY TC02561160000K SUSPENSION ASSEMBLY-1 TC02561160000K SUSPENSION ASSEMBLY-2 TC02581510000K OIL PUMP/PIPE/FILTER ASSEMBLY TC02582090000K MULTI-WAY VALVE OIL PIPE ASSEMBLY TB300.583A SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY 2 TC03620010000K SAFETY BELT INSTALLATION ASSEMBLY FT404.74A.002 FRONT BALLAST ASSEMBLY TC02741010000 FRONT BALLAST BRACKET ASSEMBLY FT600.91.001 REAR BALLAST ASSEMBLY

1

2

2.1

3

4

4

5

5

6

7

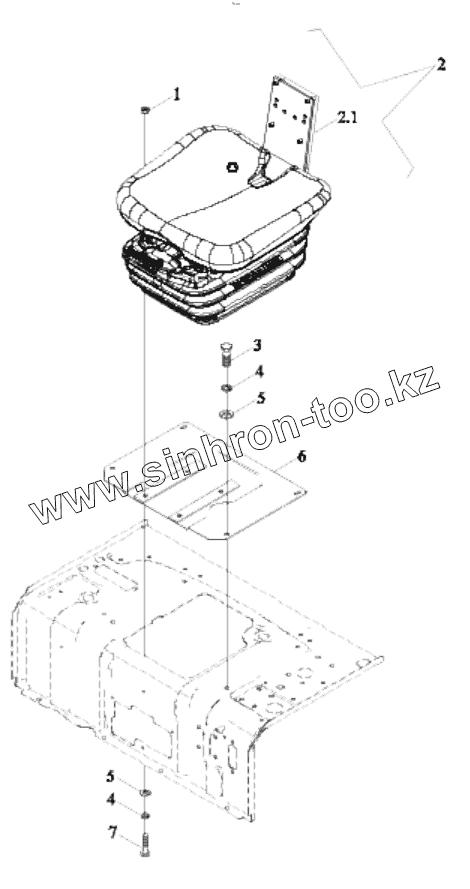

Позиция на иллюстрации	Заводской номер детали		Название детали
TC02440090000K	TC02440090000K		Seat Installation Assembly
1	GBT6170-M8-8-A2L		Hexagon nut, style 1
2	TC02440050001K		Seat Assembly
2.1	TC02440050002K		Seat
3	GBT5783-M8X25-8.8-A2L		Hex head bolt
4	GBT93-8-A3L		Standard Spring Washer
5	GBT97.1-8-A3L		Flat Washer
6	TC02440090002K		Seat Installation Plate Weldment
7	GBT5783-M8X30-8.8-A2L		Hexagon Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
