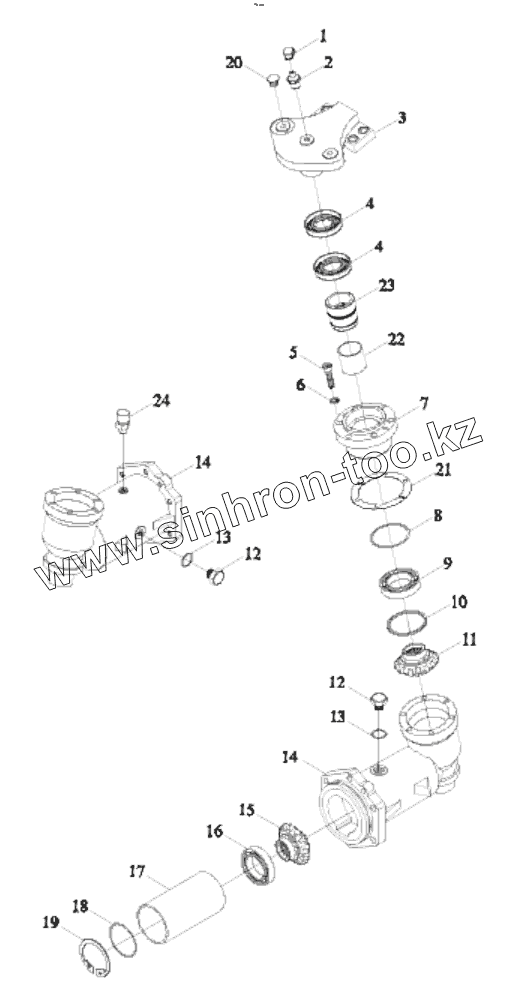

Каталог запасных частей к технике: Lovol TS-4A504-038K. TC02311220000 FRONT DRIVING AXLE ASSEMBLY-5

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
13
14
14
14
14
15
16
17
18
19
20
21
22
23
24
Позиция на иллюстрации Заводской номер детали Название детали
TC02311220002(5) TC02311220002(5) FRONT AXLE
TC02311060003(2) TC02311060003(2) LEFT TRANSMISSION ASSEMBLY
TC02311060004(2) TC02311060004(2) RIGHT TRANSMISSION ASSEMBLY
TC02311220000(5) TC02311220000(5) FRONT DRIVING AXLE ASSEMBLY
1 TD800.311C.1-01(3) DUSTPROOF CAP OF OIL CUP
2 JBT7940.1-M10X1(3) STRAIGHT FORCED FILLING OIL CUP
3 TC02311060008 CONNECTING COVER
4 GBT9877.1-FB65X85X10D SEAL RING
5 GBT70.1-M8X25-8.8 INNER HEXAGON SCREW
6 GBT93-8-A0P(2) STANDARD SPRING WASHER
7 TC02311010044 OIL SEAL END COVER
8 GBT3452.1-92.5X5.30G RUBBER O-SEAL RING
9 GBT276-6211 Deep Groove Ball Bearing
10 TC02311010039 WASHER
11 TC02311020018 GEAR
12 TD904.311K.1-13(2) SCREW PLUG
13 GBT3452.1-21.2X2.65G(2) RUBBER O-SEAL RING
14 TC02311060009 RIGHT HALF SHAFT HOUSING
14 TC02311060007 LEFT HALF SHAFT HOUSING BODY
15 TC02311020017 DRIVING GEAR
16 GBT276-6309 Deep-grooved ball bearing
17 TC02311020005 SLEEVE
18 TC02311010073 ADJUSTING WASHER
19 GBT893.1-100 CIRCLIPS FOR HOLE
20 TC02311010074 PLUG
21 TC02311010040 ADJUSTING GASKET
22 TC02311010043 SLIDING BEARING
23 TC02311010042 BUSH
24 TD904.311K.1.6 AIR PLUG
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
