1
1
1
2
3
4
5
5
5
6
7
8
9
10
11

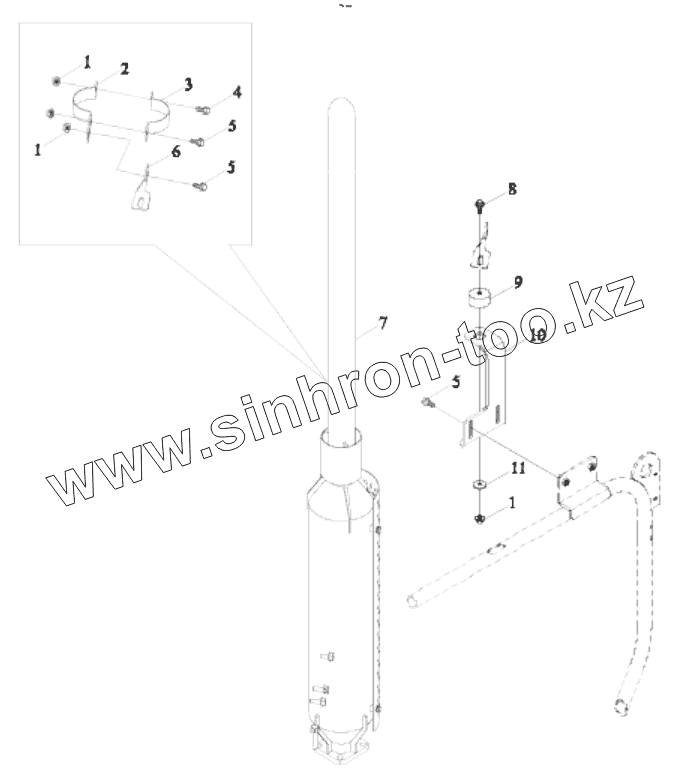

Позиция на иллюстрации
Заводской номер детали
Название детали
TC02220090000K
TC02220090000K
EXHAUST SYSTEM ASSEMBLY
1
GBT6177.1-M8-8-A2L
Hexagon Flange Nut
2
TS04220020004
Left Clasp
3
TS04220020005
Right Clasp
4
GBT5789-M8X16-10.9-A2L
HEXAGON FLANGE NUT
5
GBT5789-M8X20-8.8-A2L
HEXAGON FLANGE NUT
6
TC03220080009
PULL ROD
7
TC02220090001K
MUFFLER ASSEMBLY
8
GBT5789-M8X40-8.8-A2L
HEXAGON FLANGE NUT
9
TC03220080007
UPPER RUBBER GASKET
10
TS04220020001
Bracket Weldment
11
GBT96.1-8-A0P
Big washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
