Каталог запасных частей к технике: Lovol TS-4A504-038K. TB554.421E TRANSFER CASE ASSEMBLY

Тип техники

Марка

Модель

Схема

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

1.10

1.11

1.12

1.13

1.14

1.15

1.16

1.17

1.18

1.19

1.20

1.21

1.22

1.23

1.24

1.25

1.26

1.27

1.28

1.29

1.30

1.31

1.32

1.33

1.34

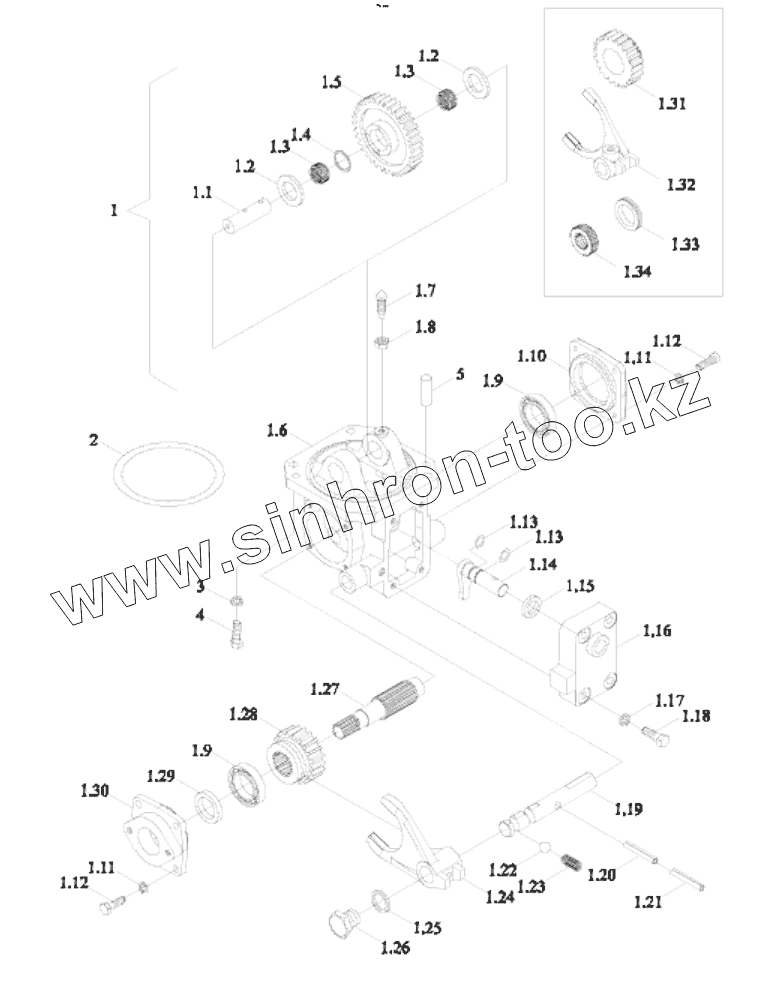

Позиция на иллюстрации	Заводской номер детали	Название детали
TB554.421E	TB554.421E	TRANSFER CASE ASSEMBLY
1	TB554.421E.1	TRANSFER CASE BODY INSTALLATION ASSEMBLY
1.1	FT304.42.102	IDLER SHAFT
1.2	FT304.42F.103	Thrust Ring
1.3	JBT7918-K25X31X20	Roller bearing
1.4	FT304.42.126	Needle Inner Spacer Sleeve
1.5	TB554.421E.1-02	TRANSFER CASE IDLER
1.6	TB554.421E.1-01	TRANSFER CASE BODY
1.7	FT304.42.112	Thrust Screw
1.8	GBT6173-M10X1-05-A2L	Hexagon Thin Nut
1.9	GBT276-6306	Deep-grooved ball bearing
1.10	FT304.42.117	Bearing Cover
1.11	GBT93-8-A0P	Standard spring washer
1.12	GBT5783-M8X20-8.8-A2L	Hexagon flange nut
1.13	GBT3452.1-17.0X1.80G	Rubber O-Seal Ring
1.14	TB554.421E.1.1	ROTARY SHAFT WELDMENT
1.15	TB554.423B-02	Rotary Shaft Spacer Bush
1.16	TB554.421E.1-05	SIDE COVER
1.17	GBT93-10-A0P	Standard spring washer
1.18	GBT5782-M10X45-8.8-A3L	Hexagon Bolt
1.19	TB554.421E.1-04	FORK SHAFT
1.20	GBT879.1-6X30	SPRING COLUMN PIN
1.21	GBT879.1-3.5X30	SPRING COLUMN PIN
1.22	GBT308-10-G100-b	Steel Ball
1.23	FT800.37.139	Spring
1.24	TB554.421E.1-06	RELEASE FORK
1.25	JBT982-18	Combined Seal Gasket
1.26	FT804.42.110	Screw Plug
1.27	FT304.42F.105	TRANSFER CASE OUTPUT SHAFT
1.28	TB554.421E.1-03	TRANSFER CASE DRIVEN GEAR
1.29	GBT9877.1-FB30X52X7D	Seal Ring
1.30	FT304.42F.106	Bearing Seat
1.31	TB554.421D.1-01	TRANSFER CASE DRIVEN GEAR
1.32	TB554.421B.1-07	Release Fork
1.33	TB604.421.1-03	SHIFT COLLAR
1.34	FT804.42.115	Mesh Gear Seat
2	GBT3452.1-132X3.55G	Rubber O-Seal Ring
3	GBT93-10-A0P(2)	STANDARD SPRING WASHER
4	GBT5783-M10X30-8.8-A3L	Hex bolt
5	GBT119.1-10m6X20-A0P	Column Pin

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
