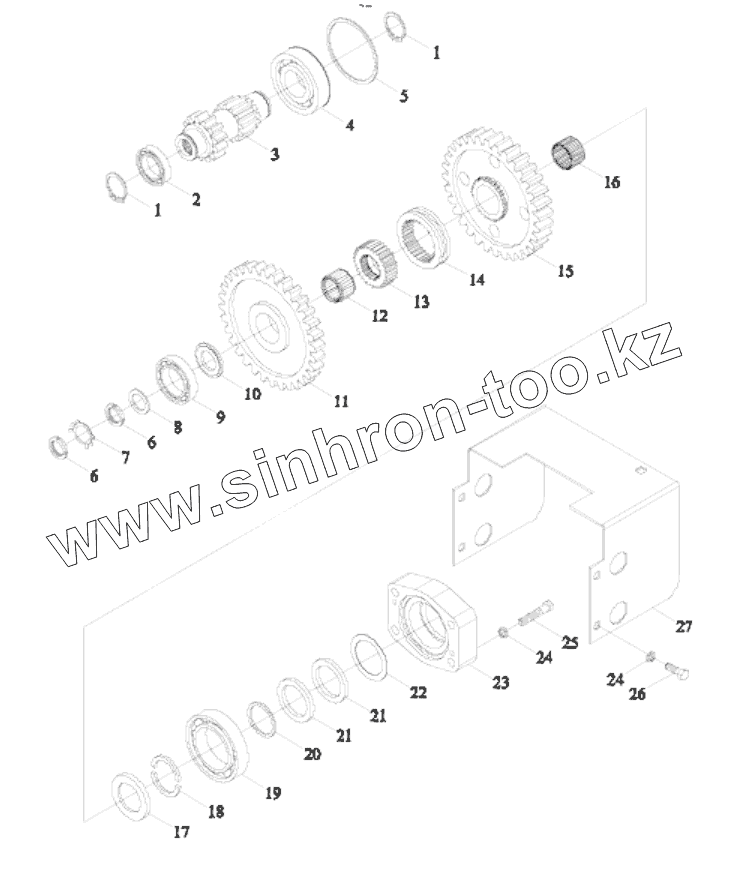

Каталог запасных частей к технике: Lovol TS-4A504-038K. TB550.411A PTO GEAR ASSEMBLY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
25
26
27
Позиция на иллюстрации Заводской номер детали Название детали
TB550.411A TB550.411A PTO GEAR ASSEMBLY
1 GBT894.1-40 Circlip
2 GBT276-6208 Bearing
3 TB550.411A-01 PTO high-speed driving gear
4 GBT276-6308N Deep-grooved ball bearing
5 GBT305-90-96.5 Thrust ring
6 GBT812-M25X1.5 Round nut
7 GBT858-25 Stop washer for round nut
8 FT300.41.122 Washer
9 GBT276-6306 Deep-grooved ball bearing
10 FT300.41C.118 PTO front circlip
11 TB550.411A-02 PTO high-speed driven gear
12 TB550.411-04 Needle bearing KK40X46X34
13 FT300.41C.117 PTO joggle seat
14 FT300.41C.116 PTO joggle sleeve
15 TB550.411-03 PTO low-speed driven gear
16 JBT7918-K35X40X27 Radial roller needle and retainer subassembly
17 FT300.41E.114 Rear circlip
18 FT300.41E.119 Thrust ring
19 GBT276-6309 Deep-grooved ball bearing
20 FT300.41E.113 PTO shaft bearing washer
21 GBT9877.1-FB50X72X8D Rubber covered rotary shaft lip seal
22 FT300.41E.115 Oil seal circlip
23 FT300.41E.101 Rear end cover I
24 GBT93-12 Standard spring washer
25 GBT5782-M12X55-8.8-A3L Hexagon head bolt
26 GBT5783-M12X25-8.8-A3L Hexagon head bolt
27 FT300.41.131a SAFTY BONNET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
