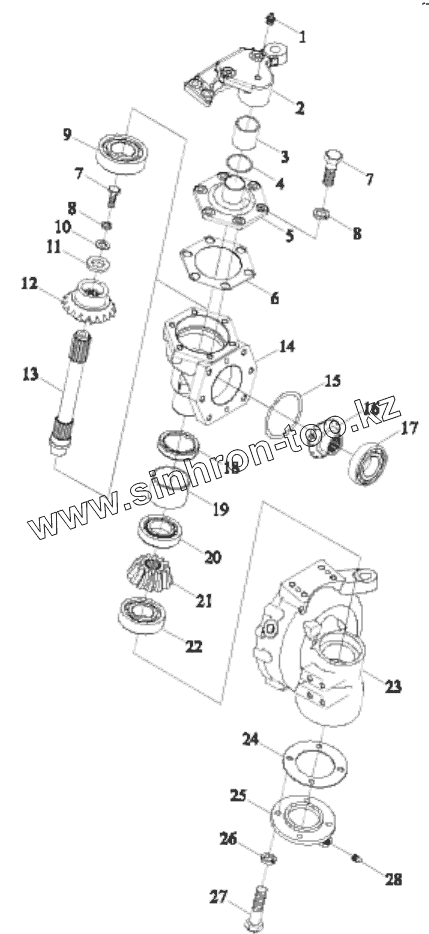

Каталог запасных частей к технике: Lovol TE-404. TL02311010000 FRONT DRIVING AXLE ASSEMBLY-2
1
2
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| TL02311010004(2) | TL02311010004(2) | LEFT TRANSMISSION ASSEMBLY | |
| TL02311010002(2) | TL02311010002(2) | FRONT AXLE | |
| TL02311010005(2) | TL02311010005(2) | RIGHT TRANSMISSION ASSEMBLY | |
| 1 | JBT7940.1-M10X1 | STRAIGHT FORCED FILLING OIL CUP | |
| 2 | TL02311010055 | LEFT STEERING SUPPORT | |
| 2 | TL02311010065 | RIGHT STEERING SUPPORT | |
| 3 | TL02311010040 | SLIDING SHAFT SLEEVE | |
| 4 | GBT3452.1-33.5X3.55G | RUBBER O-SEAL RING | |
| 5 | TL02311010041 | STEERING SHAFT SEAT | |
| 6 | TL02311010039 | SEAL GASKET | |
| 7 | GBT5783-M10X25-8.8-A3L(2) | HEXAGON BOLT | |
| 8 | GBT93-10-A0P | Standard spring washer | |
| 9 | GBT276-6210 | BEARING | |
| 10 | GBT96.1-10-A0P | BIG WASHER | |
| 11 | TL02311010042 | MAT | |
| 12 | TL02311010044 | HALF SHAFT BIG GEAR | |
| 13 | TL02311010050 | END PIN SHAFT | |
| 14 | TL02311010056 | STEERING BURL HOUSING | |
| 15 | GBT3452.1-80.0X2.65G | RUBBER O-SEAL RING | |
| 16 | TL02311010038 | HALF SHAFT PINION | |
| 17 | GBT276-6207 | DEEP GROOVE BALL BEARING | |
| 18 | TL02311010045 | DUSTPROOF RING | |
| 19 | TL02311010051 | SLIDING SHAFT SLEEVE | |
| 20 | GBT301-51106 | BEARING | |
| 21 | TL02311010057 | END PINION | |
| 22 | GBT276-6305 | BEARING | |
| 23 | TL02311010058 | LEFT END HOUSING | |
| 23 | TL02311010066 | RIGHT END HOUSING | |
| 24 | TL02311010049 | ADJUSTING GASKET | |
| 25 | TL02311010048 | BOTTOM END COVER | |
| 26 | GBT93-6-A0P | Standard spring washer | |
| 27 | GBT5783-M6X20-8.8-A2L | Hexagon head bolt | |
| 28 | Q614B01 | SQUARE HEAD TAPERED SCREW PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
